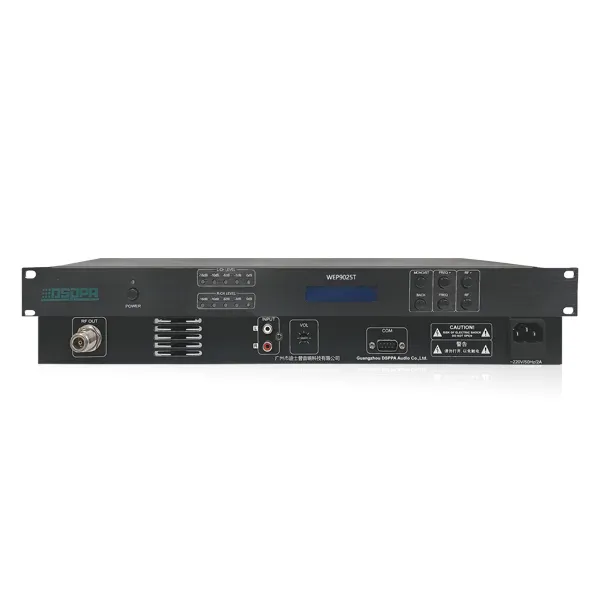

WEP9025T Wireless FM Transmitter

Features

● Professional-grade 1U brushed aluminum alloy panel with a deluxe LCD display.
● Equipped with a high-gain, high-linearity imported LDMOS power amplifier module.
● Incorporates advanced digital signal processing (DSP) technology.
● Features a large-loop AGC function to maintain constant output power, ensuring product stability and reliability.
● Features an ultra-low power consumption design, enhancing transmission power while minimizing nonlinear distortion.
● High-efficiency switching power supply with a wide input voltage range for various operating environments.
● Multiple lightning protection and comprehensive safeguard measures.
● Built-in self-protection and automatic fault diagnosis functions.
● Supports real-time monitoring and alarm functions for transmitter operating status.
● Forced air cooling design with intelligent fan control.
● Fully digital intelligent panel control for easy and convenient operation.
● Modular design for convenient installation and maintenance, with an elegant and refined appearance.
● Designed with full consideration of user environment and conditions, enabling 24-hour continuous operation and unattended management.

Contact now Leave message Download

Introduction
Specification

The FM transmitter is designed for professional broadcasting and public address systems, delivering stable and high-quality signal transmission. It features advanced digital signal processing, a high-linearity LDMOS amplifier, and an intelligent AGC control system to ensure constant output power and reliable operation. With a modular design, multiple protection measures, and an intelligent digital control interface, it enables efficient operation and 24-hour continuous performance.

Model		WEP9025T
Output Power		≥25W
Transmission Frequency Range		76~95MHz
Carrier Frequency Deviation		±1000Hz (Power>50W)
		±2000Hz (Power≤50W)
Power Deviation		±10%
Spurious AM Noise		<-50dB
Pilot Frequency Deviation		±1Hz
100% Modulation Frequency Deviation		±75KHz
Pre-emphasis		50μs
Left/Right Channel Separation	L→R	>40dB
	R→L
Left/Right Channel Level Difference		<0.4dB
