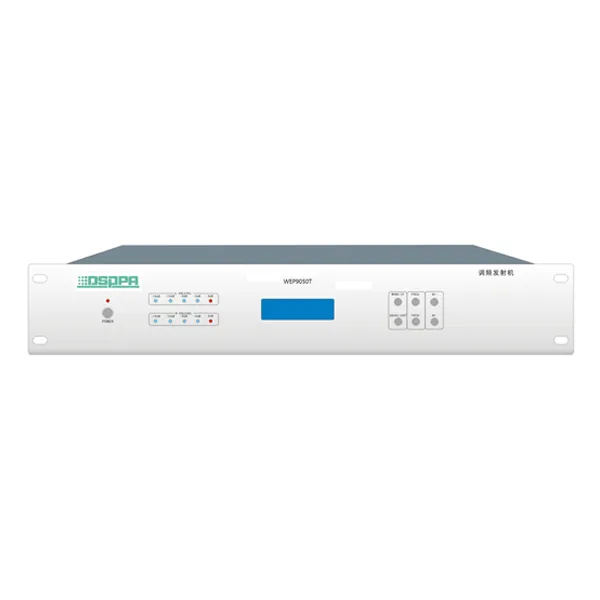

The WEP9050T/WEP9100T/WEP9150T/WEP9200T/WEP9300T series FM transmitters are designed for high-performance wireless broadcasting applications. These transmitters provide precise frequency control, adjustable output power, and stable signal transmission. They support both standalone and linked operation, making them suitable for schools, commercial buildings, and large-scale public address systems. With robust construction and user-friendly controls, these transmitters ensure reliable and high-quality audio delivery across multiple zones.
Model | WEP9050T | WEP9100T | WEP9150T | WEP9200T | WEP9300T |
Operating Temperature Range | -10℃—+50℃ | ||||
Transmission Frequency Range | 76~108MHz | ||||
Frequency Step | 0.1MHz | ||||
Maximum Transmission Power | 50W | 100W | 150W | 200W | 300W |
RF Output Impedance | 50Ω | ||||
Modulation Mode | FM | ||||
Maximum Frequency Deviation | 75KHz (Stereo mode) | ||||
Pre-emphasis Time | 50μS | ||||
Control Interface | RS232 serial communication, 9600bps | ||||
Addressing Capacity | 1000 zones | ||||
Channel Separation | ≥42dB | ||||
S/N Ratio | 63dB (Stereo mode) | ||||
Frequency Response | 20Hz~15KHz | ||||
Audio Input Impedance | 10KΩ | ||||
Audio Distortion | ≤0.1% | ||||
Control Host | Cloud Broadcasting Host (1000 Zones) PC Cloud Broadcasting Platform Software (1000 Zones) Cloud Broadcasting Adapter (240 Zones) | ||||
Power Supply | AC220V/50Hz | ||||
Compatible Receiving Terminal | Wireless Addressable Receiving Terminal | ||||
