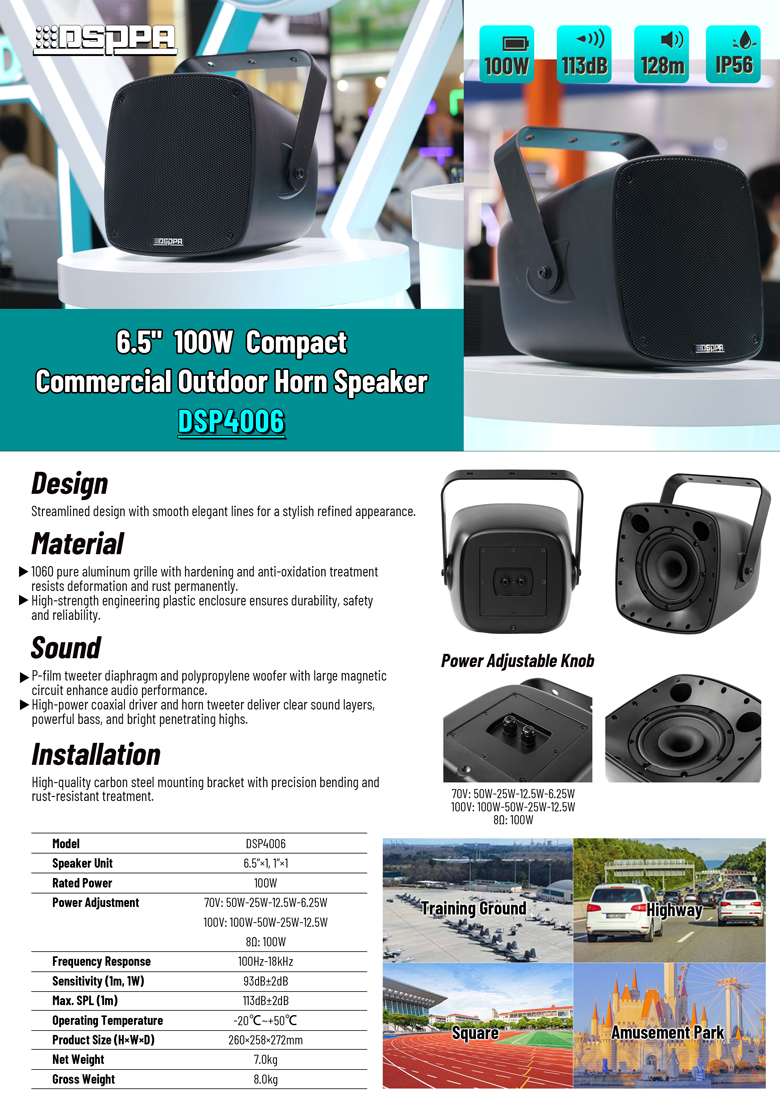

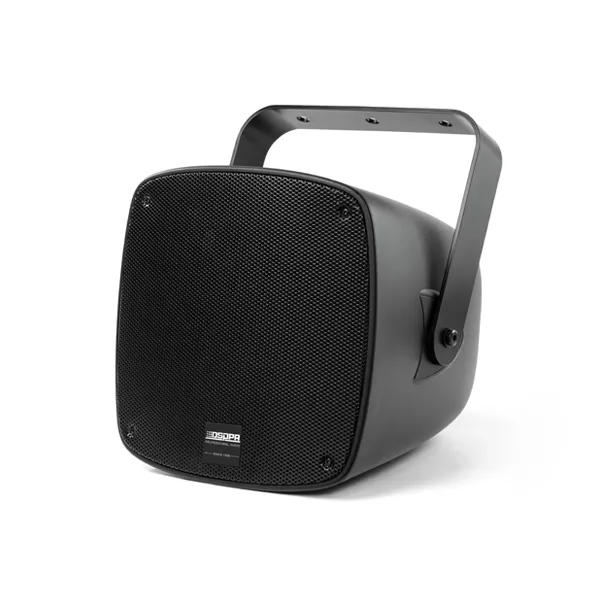

DSP4006 6.5'' 100W Compact Commercial Outdoor Horn Speaker

Features

● Rated power: 100W
● Frequency response range: 100Hz-18KHZ
● Sensitivity (1m, 1w): 93+2dB
● Maximum sound pressure level (1m): 113+2dB
● High-power coaxial unit, high sound pressure level,
● deep low-frequency dive, clear and bright vocals
● All-weather design, suitable for indoor and outdoor use

  • Introduction
  • Specification

Engineered for superior sound, this speaker features a high-power coaxial driver and horn tweeter, delivering clear layered audio, robust bass, and bright, penetrating highs. With a sleek, refined design and IP56 waterproof rating, it excels in both indoor and outdoor venues—from parks and schools to airports and plazas. Crafted with premium materials, including a hardened anti-oxidation 1060 pure aluminum grille and high-strength engineering plastic enclosure, it ensures durability and permanent rust resistance. The P-film tweeter diaphragm and large-magnetic-circuit polypropylene woofer boost performance, while the precision-formed rust-resistant carbon steel mounting bracket enables secure installation.



Model

DSP4006

Speaker Unit

6.5”×1, 1”×1

Rated Power

100W

Power Adjustment

70V

50W-25W-12.5W-6.25W

100V

100W-50W-25W-12.5W

100W

Frequency Response

100Hz-18kHz

Sensitivity (1m, 1W)

93dB±2dB

Max. SPL (1m)

113dB±2dB

Operating Temperature

-20℃~+50℃

Product Size (H×W×D)

260×258×272mm

Net Weight

7.0kg

Gross Weight

8.0kg
