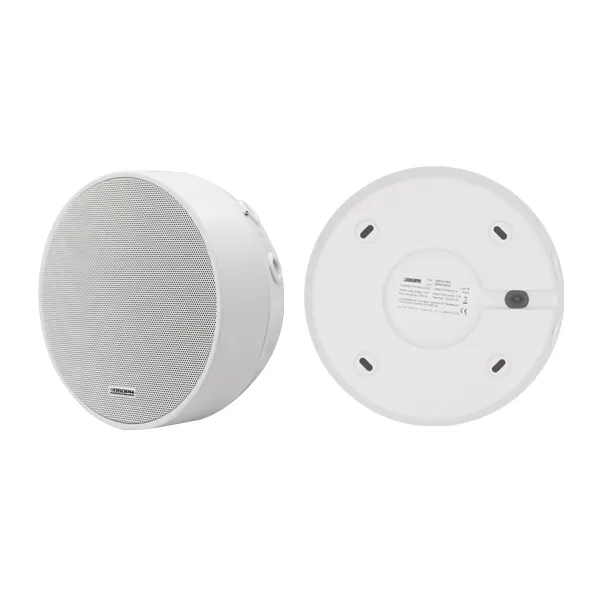

DSP5311EN 12W EN54 Fireproof Surface-Mounted Ceiling Speaker

Features

● EN54 certified ceiling speaker.
● With a 6.5” unit driver and a 100V transformer.
● With selectable 12W/6W/3W power taps for flexible system design.
● ABS V0 flame-retardant enclosure with aluminium protective grille.
● With ceramic connector and thermal fuse for overheat protection.
● Includes double cable ferrules for daisy-chain connection.

Contact now Leave message Datasheet Declaration of Performance (DOP)

Introduction
Specification

The DSP5311EN is an EN54-certified fireproof surface-mounted ceiling speaker designed for indoor voice alarm and public address systems. It features a 6.5" full-range dual-cone driver with selectable 12W/6W/3W power taps for 100V line connection, delivering clear and intelligible sound. The ABS V0 flame-retardant enclosure and aluminium grille ensure durability and safety, while the ceramic connector and built-in thermal fuse provide reliable operation.

Brochure---EN54-Loudspeaker-Series-DSP602EN-DSP5311EN-DSP2254EN-DSP207EN-DSP217EN_01.jpg

Brochure---EN54-Loudspeaker-Series-DSP602EN-DSP5311EN-DSP2254EN-DSP207EN-DSP217EN_03.jpg

Model	DSP5311EN
Standards	EN54-24:2008 Loudspeaker for voice alarm system for fire detection and fire alarm system
Environmental Class EN54-24	Type A, indoor applications
IP Rate Protection (EN60529)	IP21C
Way no. / Speaker type	1-way dual cone, full range Ø165mm
Transformer	100V (12W – 6W – 3W)
In-axis Freq. response (-10dB)	230–16,000 Hz
Sensitivity (@1m, 1W)	89dB
SPL max (@1m, Pmax)	100dB
Coverage angle (-6dB)	180° (500 Hz), 95.6° (1 kHz), 116° (2 kHz), 48° (4 kHz), 35° (8 kHz)
Directivity Index DI (dB)	-3.8 (500 Hz), 3.4 (1 kHz), 5.1 (2 kHz), 9.1 (4 kHz), 10.8 (8 kHz)
Directivity Factor Q	0.4 (500 Hz), 2.2 (1 kHz), 3.2 (2 kHz), 8.2 (4 kHz), 12 (8 kHz)
Nominal/Music power	12W/24W
Nominal Impedance @ 1KHz	833Ω (12W), 1.66kΩ (6W), 3.33kΩ (3W)
Dimensions Ø - P	203mm – 95mm
Weight	1.02kg
Material	ABS V0 type, painted grid in aluminium
Colour	White
Connections	Ceramic connector and thermal fuse
