DSP3354EN 10W EN54 Fireproof Ceiling Speaker

Features

● Built-in 100v transformer
● Wall mount type loudspeaker
● Rate power 10W with optional power taps
● Material: painted steel
● Leaded wire case and ceramic terminals for fireproofing
● Comply with EN54-24 requirements

  • Introduction
  • Specification
  • Connection

The on-wall loudspeaker DSP3354EN is specifically designed to meet the requirements of EN54-24 that is part of a series of norms concerning voice alarm evacuation in case of fire.

The speaker’s sound is strikingly qualitative in terms of intelligibility and it incorporates a speaker of 6" (16cm) in diameter with a high efficiency and good linearity in frequency response.

Product with all-metal epoxy coatings and suitable for on-wall and ceiling installations.

Minimal design, it easily fit into different architectural solutions.

The DSP3354EN is EN54-24:2008 compliant and it is then normalized for use in combination with fire detection systems.

The housing of connecting cables is protected by a metal junction box, with cable gland PG16 for an optimal clamping of the cables, and finally the connection is made of two distinct ceramic connectors, one for the incoming cable and one for outgoing cable. The external connection of the lines is electrically decoupled from the inner one by a safety thermal fuse.


MODEL

DSP3354EN

FULL-RANGE

6”

RATED POWER

10W

LINE INPUT

100V

SENSITIVITY(1M,1W)

91.7±2dB

MAX SPL(1M)

101.7±2dB

FREQ. RESPONSE

90-20,000Hz

Coverage angle 1kHz (HxV)

209°

WEIGHT

1.8kg


DSP3354EN   10W EN54 Fireproof Ceiling Speaker

Relate Products

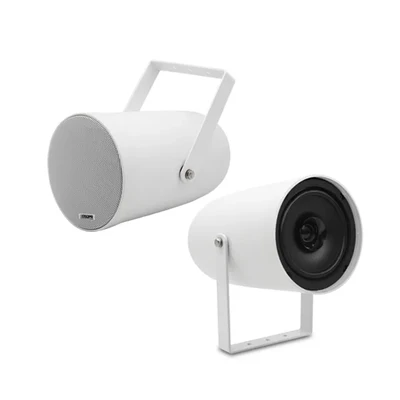

  • DSP207EN 12W EN54 Fireproof Wall Mount SpeakerDSP207EN 12W EN54 Fireproof Wall Mount SpeakerNovember 6, 2020On wall or shelf projector 100V speaker, 12W – 6W – 3W, power taps, EN54-24:2008 standard certified.Plastic body made in ABS V0 type, Protection grid in aluminium. Suitable for indoor installation, ...view
  • DSP3154EN 10W EN54 Fireproof Ceiling SpeakerDSP3154EN 10W EN54 Fireproof Ceiling SpeakerNovember 15, 2016The DSP3154EN is a ceiling speaker designed for voice evacuation systems,so it also called as en54 ceiling speaker, which comply with EN54-24 requirements. It has a 100v transformer built in.view

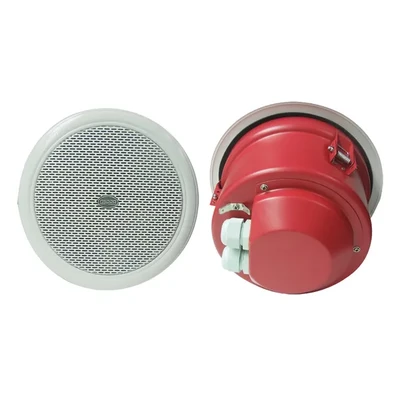

  • DSP3254EN 10W EN54 Fireproof Ceiling SpeakerDSP3254EN 10W EN54 Fireproof Ceiling SpeakerNovember 15, 2016The DSP3254EN is a ceiling speaker designed for voice evacuation systems, so it also called as en54 ceiling speaker, which comply with EN54-24 requirements. It has a 100v transformer built in.view
