1U rack mounted IP network digital power amplifier, the MAG6865A is built-in digital amplifier mould, with high efficiency (90%). Digital screen indicator for display status and time, it can play music, paging and alarm from the console. Can link with MAG6402 display terminal and intercom panels and can link with MAG6402 display terminal and intercom panels.
Indicators | Parameters | ||||||
Model | MAG6806A | MAG6812A | MAG6825A | MAG6835A | MAG6850A | MAG6865A | |
AUX IN | Input Sensitivity | 1000 mV±50mV | |||||
Frequency Response | 80Hz-15kHz(±3dB) | ||||||
Distortion | ≤1 % | ||||||
SNR | ≥77 dB | ||||||
AUX OUT | Rated Output | 1000 mV±100mV | |||||
Frequency Response | 80Hz-15kHz(±3dB) | ||||||
Distortion | ≤1 % | ||||||
SNR | ≥75 dB | ||||||
MIC IN | Input Sensitivity | 5 mV±1mV | |||||
Frequency Response | 80Hz-15kHz(±3dB) | ||||||
Distortion | ≤1 % | ||||||
SNR | ≥71 dB | ||||||
USB/SD/NET MP3 Playback | Frequency Response | 80Hz-15kHz(±3dB) | |||||
Distortion | ≤1 % | ||||||
SNR | ≥77 dB | ||||||
100V Constant Voltage Output | Rated Output Power | 60W | 120W | 250W | 350W | 500W | 650W |
Frequency Response | 80Hz-15kHz(±3dB) | ||||||
Distortion | ≤1 % | ||||||
SNR | ≥77 dB | ||||||
Supported SD Card Capacity | 32GB | ||||||
Supported USB Flash Disk Capacity | 32GB | ||||||
Rated Consumption Power | 90W | 150W | 340W | 440W | 600W | 780W | |
Power Supply | AC220V/50Hz | ||||||
Over Current, Overheat, Over Voltage Protection | Satisfied | ||||||
Display Screen | Digital Screen | ||||||
Gross Weight | 5.5kg | 5.62kg | 6.2kg | 6.2kg | 6.8kg | 7.1kg | |
Net Weight | 4kg | 4.12kg | 4.5kg | 4.5kg | 5.1kg | 5.5kg | |
Package Dimensions (L×W×H mm) | 523×434×90mm | ||||||
Machine Dimensions (L×W×H mm) | 483×345×45mm | ||||||
MAG6835F 4×350W Four-Channel Network Digital AmplifierNovember 12, 2025The four-channel network digital power amplifier is a fully digital signal processing amplifier based on the TCP/IP transmission protocol. It can connect to any network switch and features network lin...view
MAG6850 100V IP Network PA Amplifier (1U)April 22, 2022MAG6850 100V network amplifier is a kind of network fully digital analog-digital signal processor supporting 100/10Mbps self-adaptive TCP/IP network transmission protocol; with the design of double ne...view

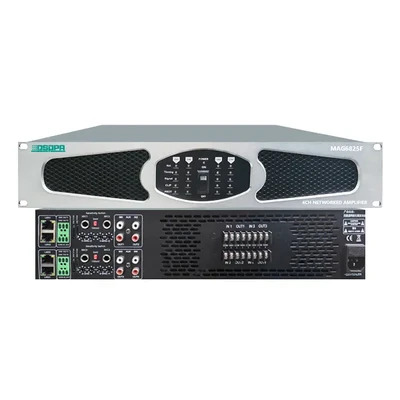

MAG6825F 4×250W Four-Channel Network Digital AmplifierNovember 12, 2025The four-channel network digital power amplifier is a fully digital signal processing amplifier based on the TCP/IP transmission protocol. It can connect to any network switch and features network lin...viewwe will contact you within 24 hours.
