DSP7181L 8Ω 8'' 100W Coaxial Ceiling Speaker with Rear Cover

Features

● Unit Driver: Equipped with 1 full-range driver and 1 tweeter for rich sound.
● Rated Power: 100W for consistent audio performance,ensuring a stable audio output.
● Sensitivity: 92dB at 1m/1W for efficient response.
● Max. SPL.: 112dB at 1m for loud output.
● Freq. Resp.: 70Hz-20KHz, covering the audible spectrum.
● Input Connector: 4-Pin Phoenix Terminal.
● Grille Type: Metal Grille.

Contact now Leave message Download

Introduction
Specification

This product is an 8Ω ceiling speaker with a coaxial design, featuring a full-range driver and an tweeter, complemented with rear cover. The terminal connectors are located at the front for easy installation and setup. Featuring a ported design for enhanced bass and separate tweeter and woofer results in improved sound quality. With its sleek, modern aesthetics and superior sound, it offers a perfect solution for sound enhancement.

Model		DSP7154L	DSP7166L	DSP7181L
Drive Units	Full-range	5"x1	6"x1	8"x1
Drive Units	Tweeter	1"x1	1.5"x1	1.5"x1
Rated Power (RMS)		40W	60W	100W
Impedance		8Ω	8Ω	8Ω
Freq. Response		80Hz-20KHz	75Hz-19KHz	70Hz-20KHz
Sensitivity		87dB	90dB	92dB
Maximum SPL		103dB	108dB	112dB
Dimension(diameter*height)		235mm×135mm	271mm×150mm	334mm×178mm
Cutout Dimension		205mm	238mm	294mm
Input Connector		4-Pin Phoenix Terminal
Grille Type		Metal Grille

PREV: DSP7166L 8Ω 6'' 60W Coaxial Ceiling Speaker with Rear Cover

NEXT: DSP7154 Two-Way 5-Inch 40W Coaxial Ceiling Loudspeaker with Power Tap

Relate Products

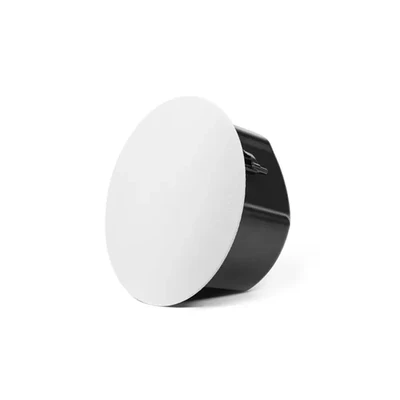

DSP7154 Two-Way 5-Inch 40W Coaxial Ceiling Loudspeaker with Power TapJuly 28, 2025This product is a ceiling speaker with a coaxial design, featuring a full-range driver and a tweeter, complemented with a rear cover. It supports both 8Ω and 100V line inputs, with selectable power t...view

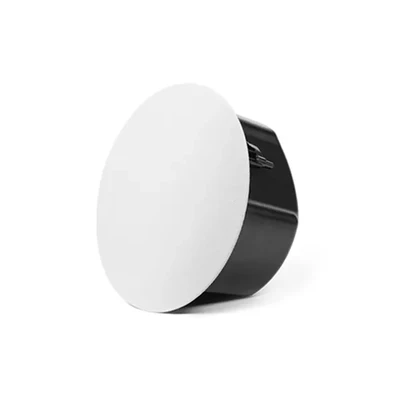

DSP7166 Two-Way 6-Inch 60W Coaxial Ceiling Loudspeaker with Power TapJuly 28, 2025This product is a ceiling speaker with a coaxial design, featuring a full-range driver and a tweeter, complemented with a rear cover. It supports both 8Ω and 100V line inputs, with selectable power t...view
