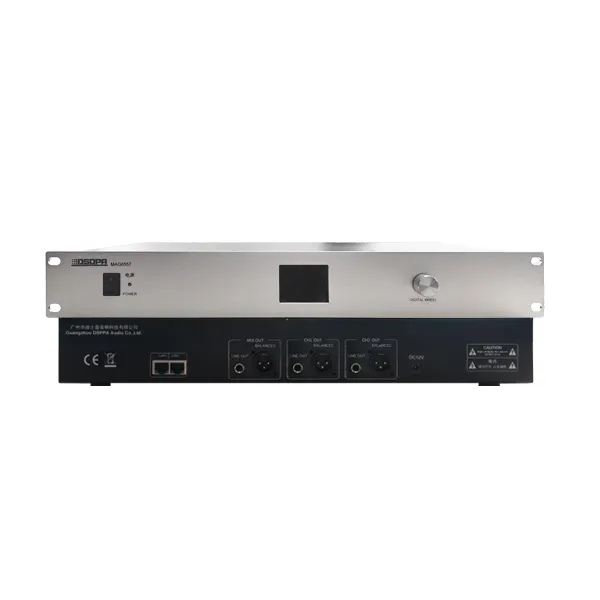

MAG6557 Digital Wide-Area Intelligent Audio Management Host

Features

● Equipped with a 2.4-inch LCD display to provide visualized control of device functions and parameter adjustment, enhancing user operability.
● With a jog dial to modify and configure device parameters.
● Supports two channels of balanced output, unbalanced output, and mixed output, greatly improving user experience.
● Built-in professional digital audio processing module to ensure lossless, stable, continuous, and low-latency transmission of wireless microphone audio signals.
● Through the jog dial, users can view the status of each channel on the display and adjust channel volume.
● Adopts digital audio algorithms to enable seamless switching between wireless microphone audio signals, meeting the transition requirements of PA systems.

  • Introduction
  • Specification

The digital wide-area intelligent audio management host is engineered with a built-in professional digital audio processing module to ensure lossless, stable, continuous, and low-latency transmission of wireless microphone audio signals. Equipped with a 2.4-inch LCD screen, it allows intuitive human-machine interaction for parameter configuration and adjustment. The unit provides balanced, mixed, and unbalanced outputs, greatly enhancing operational flexibility. Designed for versatile applications, it can be deployed across multiple scenarios.


Model

MAG6557

Balanced Output

2000±200mV

Line Output

1000±100mV

Distortion

≤1%

S/N Ratio

≥75dB

Effective Frequency Range

130Hz~15000Hz

Power Supply

DC12V

Operating Temperature

-20℃~50℃

Operating Humidity

20%~80% RH, non-condensing

Package Dimensions (L×W×H)

535×395×130mm

Product Dimensions

483×240×66mm

Net Weight

2.58kg

Gross Weight

3.58kg
