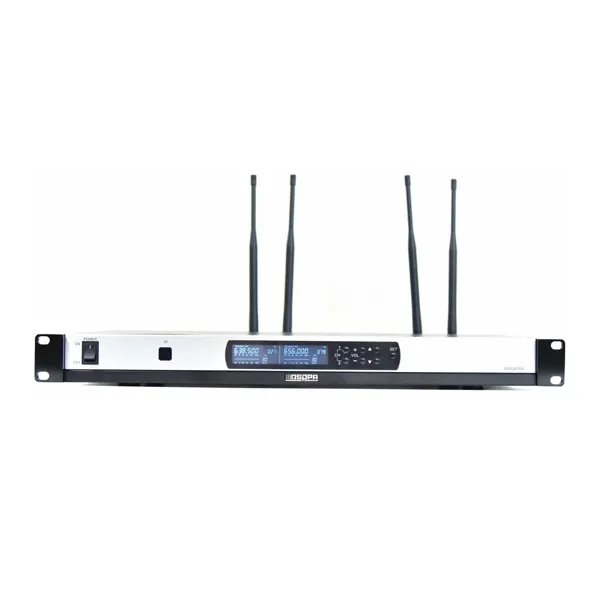

MAG6556 Digital Wide-Area Wireless Microphone Receiver

Features

● UHF dual true-diversity reception technology for effectively preventing signal dropouts and extending the reception range.
● DPLL (Digital Phase-Locked Loop) multi-channel frequency synthesis technology.
● Infrared frequency matching for quick and convenient synchronization between the transmitter and receiver.
● Display screen for showing information such as frequency, channel, squelch, and audio level.
● Balanced and unbalanced output ports to accommodate different connection requirements.
● AF output via XLR connectors for separate or mixed outputs.
● Zero-latency AES67 module for real-time transmission to the host system.

  • Introduction
  • Specification

This digital wide-area wireless microphone receiver is a wireless signal receiver with a built-in zero-latency module. It employs UHF dual true-diversity reception technology to effectively prevent signal dropouts and extend the reception range. Infrared frequency matching allows for quick and convenient synchronization between the transmitter and receiver. Advanced digital signal processing provides noise reduction, ensuring clear audio quality, making it suitable for a wide range of applications.


Model

MAG6556

Frequency Range

632-661.25MHz

Number of Channels

100

Frequency Step

250KHz

Frequency Stability

Within ±0.005%

Dynamic Range

88dB

Maximum Frequency Deviation

±48KHz

Frequency Response

125Hz-15KHz (±3dB)

Overall S/N Ratio

>70dB

THD

≤1%

Operating Temperature

-10 °C~+40 °C

Effective Operating Range

150-300m (in open environment)

Receiver

Wireless Interface

BNC/50Ω

Sensitivity

-100dBm

Display

LCD screen

Operating Voltage

DC12V

Package Dimensions (L×W×H)

525×278×90mm

Product Dimensions

483×178×44mm

Gross Weight

3.9kg

Net Weight

2.26kg
