DPA06R 6-Zone Remote Paging Station

Features

● Balanced Line Level Output: It has balanced output to be able to extend to long distance operation.
● RJ-45 Sockets: Each paging station has two RJ-45 sockets.
● Zone Switch: Each unit has 6 zone switches. When the zone is selected, LED indicator will light up.
● All Call Switch: Press “All call switch” to select all of the zones, in the mean time all of the ZONE LED will light up.
● TALK Button: Press TALK button, if there is other higher priority paging station is operating, the LED indicator will be flashing. After announcement, release TALK button, all of the preset Zone LED will light off.

Contact now Leave message Download

Introduction
Specification

The MCU-Controlled 6-Zone Remote Paging Station is designed for professional and flexible operation. It features an adjustable gooseneck stem with a sensitive unidirectional condenser microphone to guarantee clear voice pickup. For operational flexibility, it offers both Lock and Non-lock PTT modes, ideal for both brief alerts and extended broadcasts. The unit provides precise control through six individual zone selection switches and a dedicated “All Call” switch, all with clear LED status indicators.

Model	DPA06R
Power Source Input	24V DC, 500mA
Current Consumption	＜50mA
Output Level	1V rms.
Frequency Response	100Hz~15kHz
Speech Filter	315Hz (-3dB), 6dB/octave
Distortion	＜1%
Nominal Sensitivity	85dB SPL.
Interconnection	RJ-45×2
Indicators	Z1~Z6 LED, green Lock LED, green TALK LED, green/amber two colors
Dimensions (H×W×D)	55×108×240mm
Weight	1kg

PREV: DPA06C Wall Panel with Volume Control

NEXT: No information

Relate Products

DMA6112 120W 6 Channels Digital Audio Matrix Amplifier with Remote ControlJanuary 5, 2024The amplifier system is designed with a sleek iron chassis and a 4.3-inch touch screen for easy operation. Its 2U chassis can be conveniently installed in a cabinet. It offers multiple functions inclu...view
DMA60W Bluetooth Wallmount Touch Control PanelApril 26, 2024Working with DMA6112/DMA6124.view

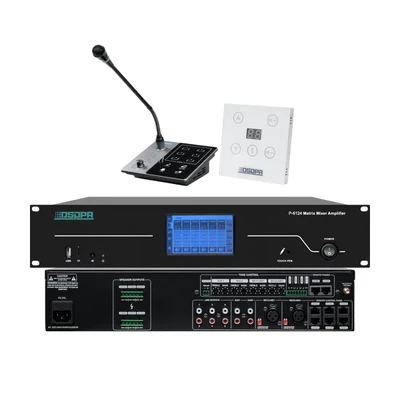

DMA6124 240W 6 Channels Digital Audio Matrix Amplifier with Remote ControlJuly 12, 2024The DMA6112 DMA6124 DMA60M DMA60W multi-function matrix public address system is a newly designed and highly integrated audio matrix host system. This new system not only features an 8×6 signal matri...view
