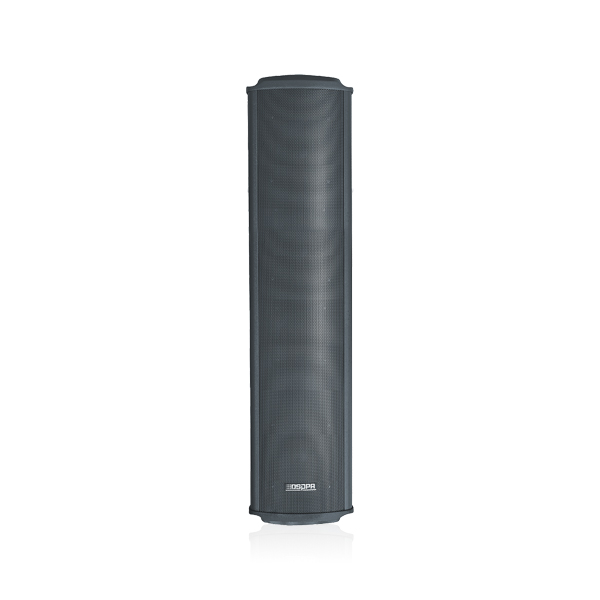

DSP8116 Outdoor Waterproof Column Loudspeaker

Features

● With thickened aluminium materials as the box body and integrated sealing design, it can effectively prevent air leakage and resonance sound.
● With high sensitivity and high-dynamic range of loudspeaker, frequency-halving structure design, strong and dynamic bass and clear and crisp treble, this product has excellent voice playback effect.
● The built-in E type high frequency transformer (with the frequency range at 50 Hz- 20 KHz) can ensure the occurrence of low-frequency layer.
● A specially designed leakage holes at the bottom cover can effectively prevent the internal water accumulation exposed to the air.
● The aluminum shell, aluminum cover and aluminum mesh adopt aluminum materials, and the surfaces undergo anti-UV painting treatment, which can be used outdoors for a long time.
● The front panel adopts the polymer thermal injection molding, with the waterproof and mild-proof feature.
● E-type wide-frequency transformer adopts pure copper turns and three-core pure copper audio cables.
● The product conforms to EN 60529 IP 65 waterproof and dust-free/IEC 60068-2-52 corrosion resistance standards. With the strong weatherproof performance, it is suitable for long-term use outdoors..
● Stainless steel corrosion- resistance design of the brackets can effectively guarantee the safety after installation.

Contact now Leave message Download

Introduction
Specification

This product complies with IEC 268- 5 Power Handling Capacity (PHC) standards, which can operate 100 hours successively at rated power. SAFE test is carried out, to ensure that the product can withstand twice of rated power within a short period.Thanks for using our speaker products. All our products are tested strictly before leaving the factory, with guaranteed quality. Our speakers are widely used in such places as schools, gymnasiums, square halls, parks, parking lots, railway stations, airports, villa communities and mall supermarkets, etc., and they will be your ideal choice for public address system. For better installation, commissioning and use of the product, please read this manual in detail before installation.

Model	DSP8114	DSP8116
Frequency response	90Hz-16Hz	90Hz-16Hz
Sensitivity (1m,1W)	91dB	94dB
Max.SPL(1m)	108	115
Rated power(RMS)	60W	120W
Woofer	6.5x2	6.5x4
Tweeter	1x1	1x1
Dimension (H×W×D)	648x212x181mm	1023x212x181mm
Weight	8.5kg	12.8kg
Black-blue	30W/60W	60W/120W
Black-white	60W	120W
Power	70V/100V	70V/100V
