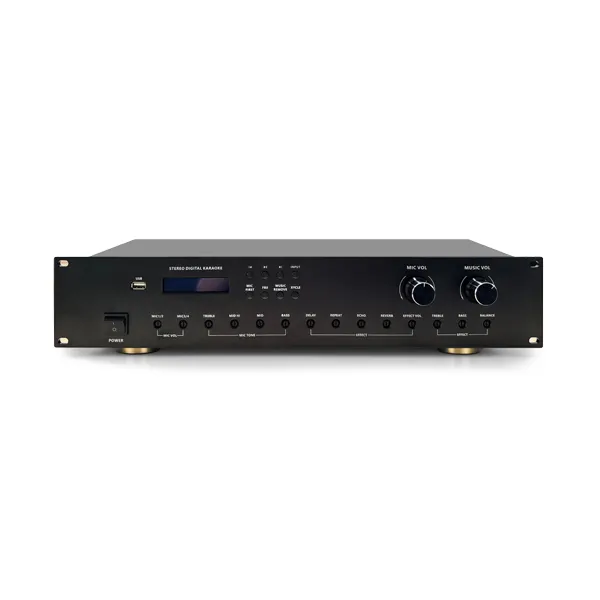

MK2135 2×130W Stereo Multimedia Power Amplifier

Features

● Integrated amplifier with built-in digital effects processor.
● 7 Audio input channels: Bluetooth, USB, Optical, Coaxial, AUX, LINE, and HDMI (ARC).
● 4 Microphone inputs: two XLR balanced inputs (with 48V phantom power) and two 6.35mm inputs.
● Microphone tone control with four adjustable bands: Treble, Upper-Mid, Mid, and Bass.
● Adjustable effects including Echo and Reverb.
● Equipped with an LCD display for easy operation.
● Anti-feedback suppression with three adjustable levels.
● Microphone priority function to override all music signals.
● 2 Microphone channels support 48V phantom power.
● Vocal cancellation function.

Contact now Leave message Download

Introduction
Specification

This integrated amplifier combines powerful audio amplification with a built-in digital effects processor, delivering clear, dynamic, and highly controllable sound performance. With multiple audio input options including Bluetooth, USB, optical, coaxial, and HDMI (ARC), it offers excellent compatibility for a wide range of audio sources. Designed to meet both music playback and vocal reinforcement needs, the amplifier features professional-grade microphone inputs with phantom power support, advanced tone control, anti-feedback suppression, and adjustable echo and reverb effects. An intuitive LCD display ensures easy operation, making this amplifier an ideal solution for conference rooms, classrooms, karaoke venues, and commercial audio applications where sound quality and flexibility are essential.

Model	MK2135
Output Power	2×130W
Output Interface	Binding Posts
Input Interfaces	Music: RCA/USB/Bluetooth/HDMI Microphone: 6.35mm/XLR
Input Sensitivity	Music: 500mV Microphone: 30mA
Input Impedance	Music: 47kΩ Microphone: 220Ω
SNR	≥ 93dB
Frequency Response	20 Hz – 20 kHz (±1 dB)
THD	< 0.1%
Power Supply	AC 220 V / 50 Hz
Protection	Short-circuit Protection, DC Output Protection, Power On/Off Protection, Over-temperature Protection
Dimensions (L×W×H)	484 × 360 × 145 mm
