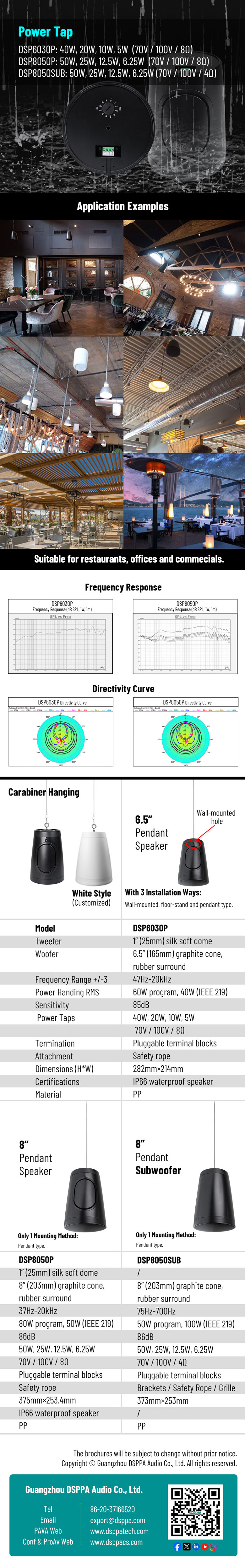

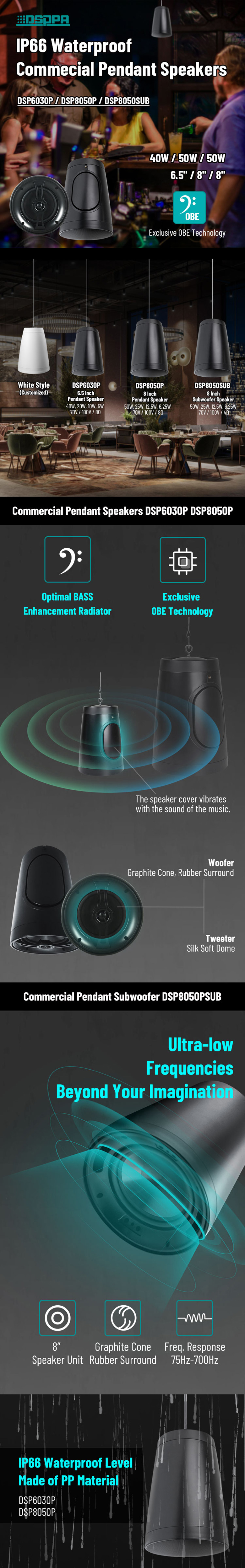

DSP6030P 40W 6.5-inch IP66 Outdoor Pendant Speaker

Features

● An 8Ω constant-resistance speaker.
● Made of PP material.
● With IP66 waterproof level.
● With a wide frequency range.
● With power taps for different application scenarios.

  • Introduction
  • Specification

This product is an 8Ω pendent speaker, available in two options. It is made of PP material and features IP66 waterproof level. In addition, it holds power taps to cater for diverse needs of different applications.


Model

DSP6030P

DSP8050P

Tweeter

1” (25mm) silk soft dome

1” (25mm) silk soft dome

Woofer

6.5” (165mm) graphite cone, rubber surround

8” (203mm) graphite cone, rubber surround

Frequency Range +/-3 Power

47Hz-20kHz

37Hz-20kHz

RMS

40W

50W

Sensitivity

85dB

86dB

Taps

8Ω, 0, 40W, 20W, 10W, 5W

8Ω, 0, 50W, 25W, 12.5W, 6.25W

Impedance

8 ohms

8 ohms

Termination

Pluggable terminal blocks

Pluggable terminal blocks

Attachment

Safety rope

Safety rope

Dimensions (H*W)

282mm×214mm

375mm×253.4mm

Certifications

IP66 waterproof speaker

IP66 waterproof speaker

Material

PP

PP
