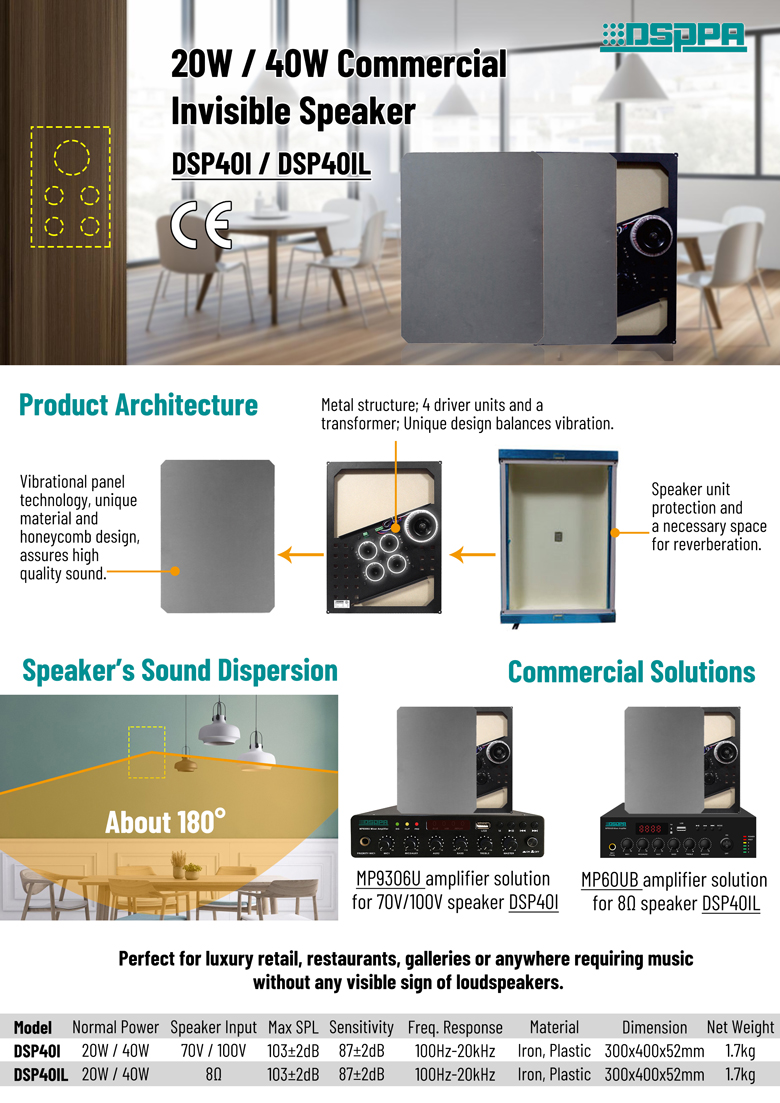

The DSP40IL is a 40W 8Ω invisible speaker designed for in-wall or in-ceiling installation. Thanks to its specially designed driver unit and surface material, it delivers clear and high-quality sound performance when installed behind walls or ceilings. With its fully concealed design, the DSP40IL can seamlessly blend into the surroundings and remain invisible after being painted to match the interior surface. It is an ideal choice for commercial and public applications such as shopping malls, office buildings, museums, and other spaces requiring background music and paging systems.
Model | DSP40IL |
Impedance | 8Ω |
Normal Power | 20W/40W |
Freq. Response | 100Hz -20 kHz |
Sensitivity (1w/1m) | 87±2dB |
Max SPL | 103±2dB |
Product Dimension | 300mm×400mm×52mm |
Installation Bottom Box | 450mm×300mm×72mm |
Weight | 1.7 kg |
