DSP922G 4W-15W Fireproof Ceiling Speaker

Features

● Built-in 100v/70v transformer
● In-ceiling type loudspeaker
● 4.5” paper cone waterproof driver
● Rated power output at 4W-15W
● High sensitivity(88±2dB)
● Made of high-class steel
● Leaded wire case for fireproofing
● Fast installation by spring clip

  • Introduction
  • Specification
  • Connection

The DSP922G is a ceiling speaker with a 70v/100v transformer built in, and also is a ceiling speaker with fire dome.  The 70v/100v transmission is realized in a high-voltage, low-current mode, which makes longer distance transmission and parallel connection of multiple loudspeakers possible.

The built-in 4.5'' speaker driver is designed of wide frequency response (130-20,000Hz), the multiple terminals 4W, 8W & 15W can be applied to different occasions vary in area sizes and background noises; It is made of high-class steel and fixed by stamping, which ensures long-term durability, and will never be out of shape; Equipped with leaded wire case which is hard to burn for fireproofing; Spring clip clamp makes the easy and secure installation possible; Waterproof driver surround excellent damping, long life, clear and sonorous sounds.

This fireproof ceiling speaker is an ideal choice for industrial and commercial applications in hotel, school, office and factory where background music and paging is needed.

two way ceiling speaker specification
DSP922G  4W-15W Fireproof Ceiling Speaker

Relate Products

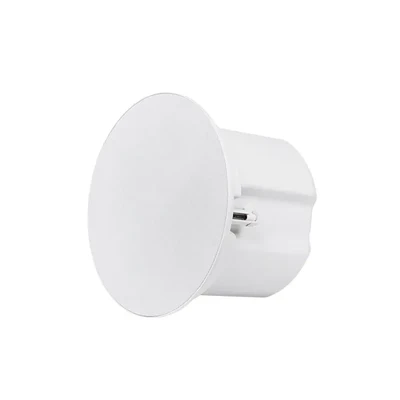

  • DSP8060C 60W Ceiling Speaker with Two Tweeter and DomeDSP8060C 60W Ceiling Speaker with Two Tweeter and DomeDecember 18, 2023The DSP8060C is a speaker system rated at 70V/100V with a power capacity of 60W. It features an 8-inch woofer and dual 1-inch tweeters, boasting a frequency response spanning 50Hz to 20kHz and a sensi...view
