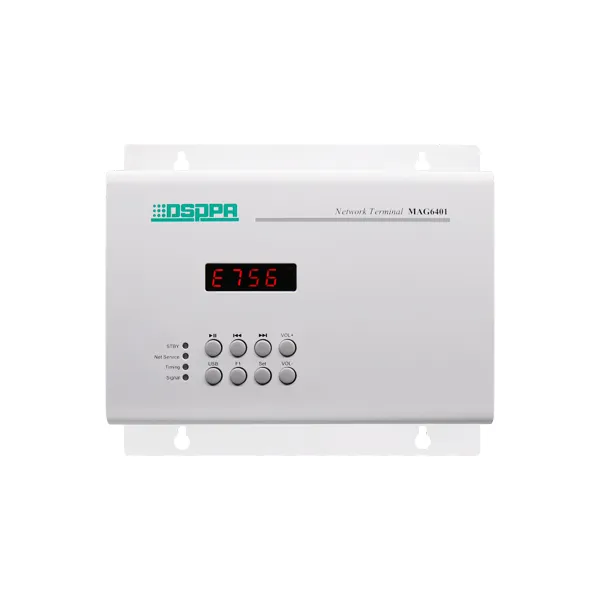

MAG6401 Network Terminal

Name: MAG6401 Network Terminal
Brand: Guangzhou DSPPA Audio Co., Ltd.

Features

● With dual network redundancy design, it can work across the network segment.
● Can be mounted to any place with access to network.
● With built-in MP3 player, USB interface and SD card slot for playing local program.
● Can execute timing points independently when separated from the host.
● Support maximum 48kHz sampling rate 16-bit digital audio stream decoding.
● Built-in 2×25W (4Ω) or 1×50W (8Ω) high-fidelity digital amplifier, with low power consumption.
● Can play the background musics, emergency paging and alarm signals from the system host.
● With 1 AUX IN, 1 AUX OUT, 2 MIC IN, 1 EMC OUT and 1-channel short circuit output.

Contact now Leave message Download

Introduction
Specification
Connection

MAG6401 network terminal is a network all-digital analog-digital conversion signal processor based on TCP/IP transmission protocol. With dual network redundancy design, it can be mounted at any place with access to network. The machine can output the remote audio data stream as the audio signal with intelligent control of the host; and has a built-in MP3, USB interface and SD card slot. It can play the MP3 program when the network audio stream signal is not played, and can execute timing points independently when separated from the host. Also, it is provided with one-channel auxiliary audio input interface for other audio source devices (like DVD), and one-channel auxiliary audio output interface for other amplifiers to extend the power, and a microphone interface for local paging.

MAG6401 Network Terminal

Model		MAG6401
AUX IN	Input Sensitivity	350mV±50mV
	Frequency Response	20Hz-16kHz(±3dB)
	Distortion	≤0.5%
	Noise	1.7mV
	SNR	≥77 dB
AUX OUT	Output Sensitivity	1000mV±100mV
	Frequency Response	20Hz-20KHz(±3dB)
	Distortion	≤0.5%
	Noise	0.12mV
	SNR	≥78 dB
Maximum Output Power of the Built-in Amplifier	Independent Channel Mode	25W/4Ω
Maximum Output Power of the Built-in Amplifier	BTL Mode	50W/8Ω
Maximum Harmonic Distortion of the Built-in Amplifier		≤0.7%
MIC IN	Input Sensitivity	5mV±1mV
	Frequency Response	20Hz-16kHz(±3dB)
	Distortion	≤0.7%
	Noise	1.7mV
	SNR	≥77 dB
USB/SD /NET/MP3	Output Sensitivity	11V±1V
	Frequency Response	20Hz-16kHz(±3dB)
	Distortion	≤0.6%
	Noise	1.5mV
	SNR	≥77dB
External USB Capacity Supported		32GB
Power Supply		AC220V/50Hz
Over Current, Overheat, Over Voltage and Under Voltage Protection		Satisfied
Package Dimension (L×W×H mm)		330×270×125
Machine Dimension (L×W×H mm)		222×195×49.5
Net Weight		1.45kg
Gross Weight		2.145kg
