MAG6701 IP Network Terminal with Built-in Amplifier

Features

● Dual-network redundancy design, able to work cross-network segment
● Able to be installed in any place where there is a network.
● Built-in MP3 player, with USB interface and SD interface to play local program
● Independent execution of timing function without host
● Support maximum 48kHz sampling rate, 16-bit digital audio decoding
● Built-in 1×60W high fidelity digital amplifier, low power consumption
● Able to play background music, emergency paging and alarm signals from the system host
● One auxiliary audio input interface, one auxiliary audio output interface, two MIC input interfaces, one EMC emergency output interface and one short circuit output
● Controllable volume and playing status of local output
● LED indicator to show signal status, working status and information change
● Support infrared remote control
● Could set the priority of audio source through Network

  • Introduction
  • Specification

MAG6701 100V Network terminal is a network full digital analog-digital signal conversion processor based on TCP/IP communication protocol. Dual-network redundancy design makes it possible to any place where there is network. Remote digital data flow could export audio signal through this device, which is controlled by host. There is built-in MP3 player, USB interface and SD card interface. You could also play local MP3 program when there is no Network audio signal. It could execute timing function without host. There is one audio input interface to connect with other audio equipment (such as DVD). There is one auxiliary audio output interface to connect with other amplifiers to extend power. There is also a MIC interface to realize local paging.

Model

MAG6701

AUX IN

Input sensitivity

300 mV±30mV

Frequency response

80Hz-16kHz(±3dB)

Distortion

≦1%

Noise

14mV

Signal-to-noise ratio

≥77dB

AUX OUT

Input sensitivity

1000mV±100mV

Frequency response

35Hz-20KHz(±3dB)

Distortion

0.1%

Noise

0.12 mV

Signal-to-noise ratio

≥77 dB

Maximum output power of the built-in power amplifier

Single channel mode

60W/160Ω

Maximum harmonic distortion of the built-in power amplifier

≦1%

MIC input

Input sensitivity

3.5 mV±1mV

Frequency response

80Hz-16kHz(±3dB)

Distortion

≦0.5%

Noise

14mV

Signal-to-noise ratio

≥77 dB

USB/SD

/NET

Play MP3

Input sensitivity

100V±5V

Frequency response

85Hz-16kHz(±3dB)

Distortion

≦0.4%

Noise

14 mV

Signal-to-noise ratio

≥77dB

Capacity of external U disk supported

32GB

100V backup conversion time

220ms (±50ms)

Voltage range of power supply voltage

AC220V/50Hz

Overcurrent, overheat, over-voltage and under-voltage protection

Support

Package dimension (L×W×H mm)

330×270×125

Machine dimension (L×W×H mm)

222×195×56

Net weight

2.35kg

Gross weight

3.2kg



Relate Products

  • MAG6310 2x15W IP Network Terminal with AmplifierMAG6310 2x15W IP Network Terminal with AmplifierMarch 14, 2017MAG6310 Network display system terminal is a network full digital signal processor based on TCP/IP protocol. With dual network interface design, it can be connect to anywhere the network reaches. Unde...view
  • MAG6419 IP Network Terminal with Built-in AmplifierMAG6419 IP Network Terminal with Built-in AmplifierAugust 30, 2017MAG6419 network wireless remote control terminal is consisted of MAG6419A network PA terminal and MAG6419B wireless remote control receiver module and wireless remote control. Applicable to our networ...view

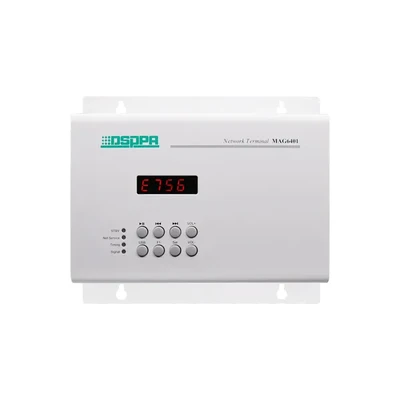

  • MAG6401 Network TerminalMAG6401 Network TerminalNovember 30, 2016MAG6401 is the terminal in Network Public Address systems. It is adopted in World Expo 2010 Shanghai’s PA system. It is fully digital design, with hi-fi and high speech transmission index. It is an i...view
