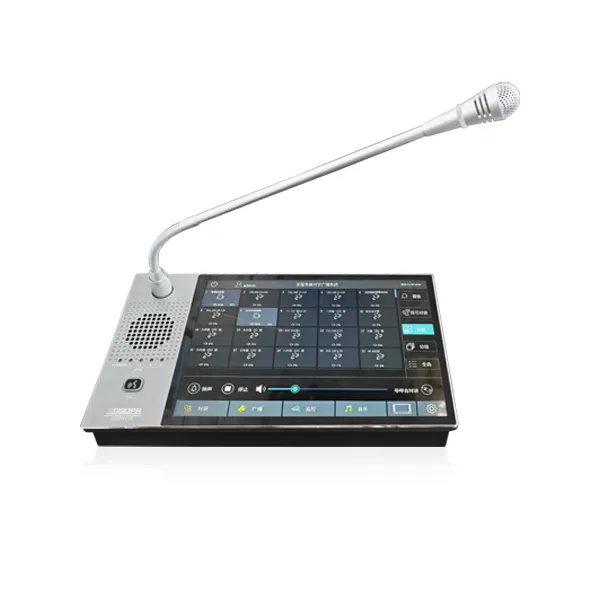

DSP9110 Standalone IP Network Intercom & Paging Console

Features

● 10.1-inch full-color LCD display with capacitive touch screen, supporting manual touch operation.
● Supports zone/group selection: single selection, multi-selection, and one-key select all.
● Supports multiple operations for zones: intercom, broadcast, monitoring, surveillance, and music playback.
● Displays zone status information and allows filtering of focused zones; supports zone monitoring access.
● Supports incoming call reminders from terminals.
● Multi-level signal level indication for intuitive paging volume monitoring.
● Adjustable screen backlight time and brightness for energy-saving operation.
● User password and permission management.
● Language switching supported: Simplified Chinese / English.
● Desktop design structure.
● High-fidelity capacitive gooseneck microphone design.
● One-key all-zone paging for emergency use.
● Supports intercom communication between intelligent paging consoles.
● Supports playback of local media library music.

Contact now Leave message Download

Introduction
Specification

The Standalone IP Network Intercom & Paging Console is a high-fidelity network-based visual intercom paging device built on multiple transmission protocols such as TCP/IP, SIP, and UDP. It supports integration with external SIP-based video intercom devices within the system. It enables visual communication, intercom, paging, and control operations. With the high stability of traditional paging stations, it operates reliably with a low failure rate. The system adopts full digital signal transmission with intelligent control as its core.


Model		DSP9110
System MIC Input, Decoder Terminal Line Output	Maximum Undistorted Output Voltage	≥ 1V
	Input Sensitivity	15 ± 1 mV
	Effective Frequency Response	200 Hz – 4 kHz
	Signal-to-Noise Ratio	≥ 58 dB
	Total Harmonic Distortion	≤ 1%
System Line Input, Decoder Terminal Line Output	Maximum Undistorted Output Voltage	≥ 1V
	Input Sensitivity	130 – 1000 mV
	Effective Frequency Response	200 Hz – 4 kHz
	Signal-to-Noise Ratio	≥ 58 dB
	Total Harmonic Distortion	≤ 1%
Intercom Panel MIC Input, System Line Output	Maximum Undistorted Output Voltage	≥ 1V
	Input Sensitivity	15 ± 1 mV
	Effective Frequency Response	500 Hz – 2 kHz
	Signal-to-Noise Ratio	≥ 58 dB
	Total Harmonic Distortion	≤ 3%
Intercom Panel Input, Monitoring Speaker Output	Maximum Undistorted Output Voltage	≥ 2V
	Input Sensitivity	15 ± 1 mV
	Effective Frequency Response	500 Hz – 2 kHz
	Signal-to-Noise Ratio	≥ 58 dB
	Total Harmonic Distortion	≤ 3%
Package Dimensions (L × W × H)		425 × 355 × 150 mm
Product Dimensions (L × W × H)		320 × 174 × 77 mm
Gross Weight		3 kg
Net Weight		2.05 kg
