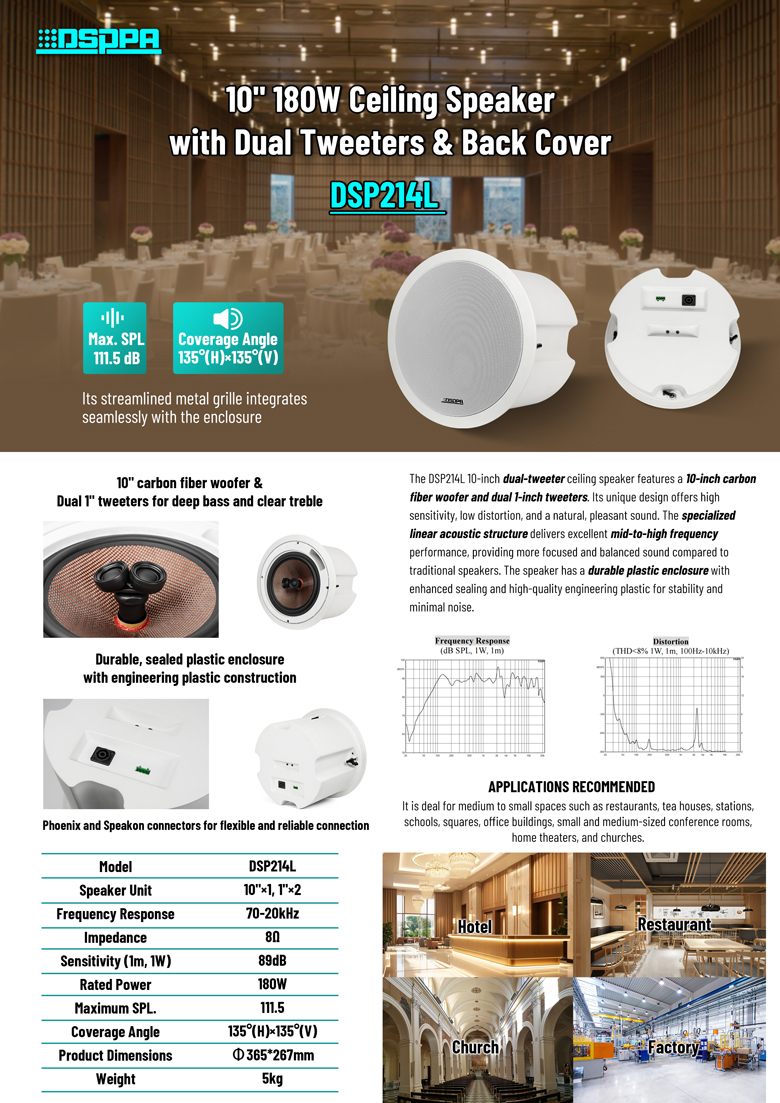

DSP214L 10'' Ceiling Speaker with Dual Tweeters

Features

● 10" carbon fiber woofer and dual 1" tweeters for deep bass and clear treble.
● 180W rated power for stable output in small and medium-sized venues.
● 8Ω impedance for stable audio and efficient transmission.
● High sensitivity (89dB) and maximum SPL. (111.5dB) for clear, natural sound.
● Frequency response 70Hz-20kHz for wide and balanced sound.
● With Phoenix and Speakon connectors for flexible and reliable connection.
● Durable, sealed plastic enclosure with engineering plastic construction and metal grille for robust performance and elegant appearance.

  • Introduction
  • Specification

The DSP214L 10-inch dual-tweeter ceiling speaker features a 10-inch carbon fiber woofer and dual 1-inch tweeters. Its unique design offers high sensitivity, low distortion, and a natural, pleasant sound. The specialized linear acoustic structure delivers excellent mid-to-high frequency performance, providing more focused and balanced sound compared to traditional speakers. The speaker has a durable plastic enclosure with enhanced sealing and high-quality engineering plastic for stability and minimal noise. Its streamlined metal grille integrates seamlessly with the enclosure, providing a sleek and elegant appearance. It is deal for medium to small spaces such as restaurants, tea houses, stations, schools, squares, office buildings, small and medium-sized conference rooms, home theaters, and churches.


Model

DSP214L

Speaker Unit

10"×1, 1"×2

Frequency Response

70-20kHz

Impedance

Sensitivity (1m, 1W)

89dB

Rated Power

180W

Maximum SPL.

111.5

Coverage Angle

135°(H)×135°(V)

Product Dimensions

⌀365*267mm

Weight

5kg
