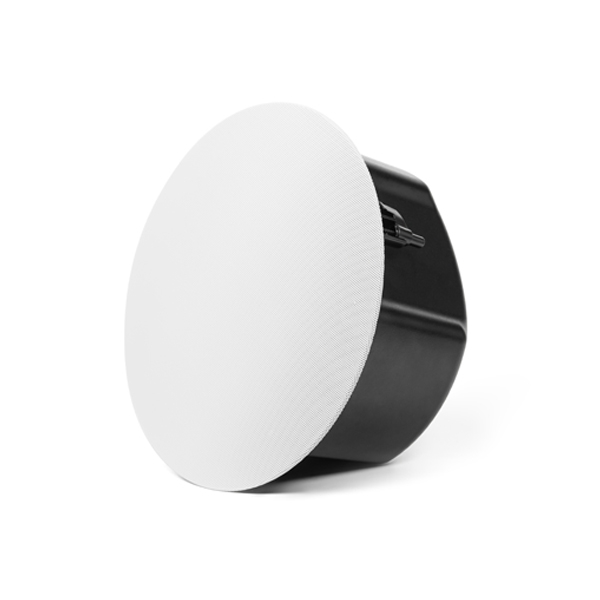

DSP7181 Two-Way 8-Inch 100W Coaxial Ceiling Loudspeaker with Power Tap

Features

● Unit Driver: Equipped with 1 full-range driver and 1 tweeter for rich sound.
● Rated Power: 100W for consistent audio performance,ensuring a stable audio output.
● Power Mode: This product supports both 8Ω low impedance and 100V constant voltage input, with a built-in power tap selector knob for easy adjustment.
● Sensitivity: 92dB at 1m/1W for efficient response.
● Max. SPL.: 112dB at 1m for loud output.
● Freq. Resp.: 70Hz-20KHz, covering the audible spectrum.
● Input Connector: 4-Pin Phoenix Terminal.
● Grille Type: Metal Grille.

Contact now Leave message Download

Introduction
Specification

This product is a ceiling speaker with a coaxial design, featuring a full-range driver and a tweeter, complemented with a rear cover. It supports both 8Ω and 100V line inputs, with selectable power taps for flexible configuration. The terminal connectors are located at the front for easy installation and setup. Featuring a ported design for enhanced bass and separate tweeter and woofer, it delivers improved sound quality. With its sleek, modern aesthetics and superior audio performance, it is an ideal solution for sound reinforcement.

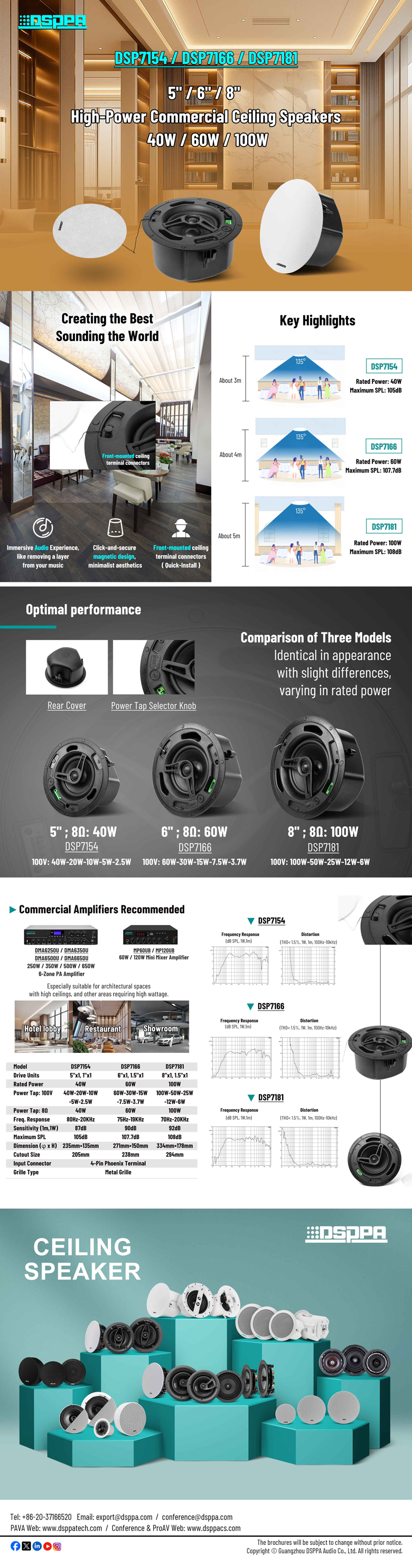

Model		DSP7154	DSP7166	DSP7181
Drive Units	Full-range	5"x1	6"x1	8"x1
Drive Units	Tweeter	1"x1	1.5"x1	1.5"x1
Rated Power (RMS)		40W	60W	100W
Power Adjustment	100V	40W-20W-10W-5W-2.5W	60W-30W-15W-7.5W-3.7W	100W-50W-25W-12W-6W
Power Adjustment	8Ω	40W	60W	100W
Freq. Response		80Hz-20KHz	75Hz-19KHz	70Hz-20KHz
Sensitivity		87dB	90dB	92dB
Maximum SPL		103dB	108dB	112dB
Dimension(Diameter*Height)		235mm×135mm	271mm×150mm	334mm×178mm
Cutout Dimension		205mm	238mm	294mm
Input Connector		4-Pin Phoenix Terminal
Grille Type		Metal Grille
