2-Channel Digital Multimedia Mixer Amplifier System Solution for Mosques DMA2240 / DMA2500

2-Channel Digital Multimedia Mixer Amplifier System Solution for Mosques DMA2240 / DMA2500

I. System Overview

As the demand for mosque audio systems continues to grow, a key challenge in system design and installation is maintaining high-quality sound and stable audio transmission across different areas of the mosque. Mosques require solutions that not only deliver excellent voice quality but also meet the unique needs of religious activities, including full-coverage, multi-directional sound. The DSPPA DMA2240 series amplifiers, with their customizable audio performance, flexible configuration, and enhanced output capacity, have become the preferred choice for mosque audio systems.

Project Requirements

● Even Coverage: Ensures that every corner of the prayer hall receives clear audio.

● Speech Intelligibility: Voice transmission must be clear so that every word of the Quran recitation can be heard distinctly by all worshippers.

● Multi-Zone Independent Control: The system allows the mosque to be divided into multiple broadcast zones, enabling operators to independently control the power, volume, and audio source of each zone.

● Integrated Prayer Timing and Calls: The system can integrate an automatic prayer timer, playing scheduled audio precisely at designated times each day.

● Ease of Operation: The system is designed for simple operation and maintenance, allowing staff to efficiently manage equipment and handle unexpected issues.

II. Audio System Configuration for Small to Medium-Sized Mosques

Audio System for Small to Medium-Sized Mosques

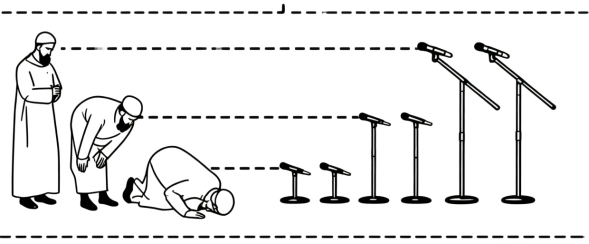

● Supports 6 built-in microphone inputs, accommodating the postures required during prayer (standing, bowing, and kneeling).

● Each output channel of the DMA2240/DMA2250 dual-channel digital mixer amplifiers can be independently controlled, preventing interference with outdoor outputs.

● The DMA30W zone panel allows adjustment of volume, reverb, and audio sources, enabling flexible audio layout and management.

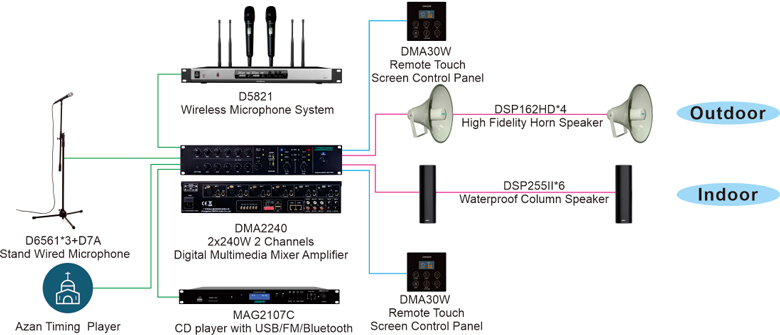

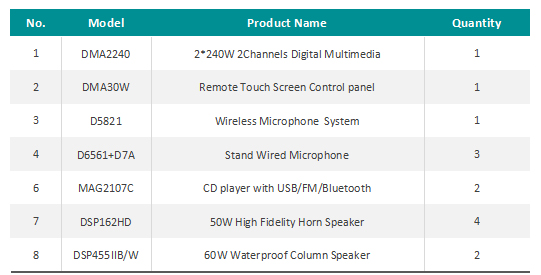

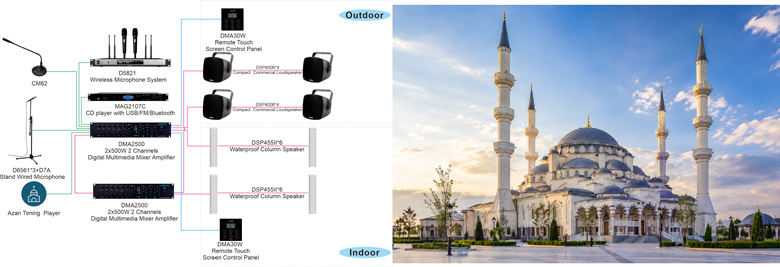

Product List & System Diagram

Note: This solution is provided for reference purposes only. For detailed requirements, please feel free to contact us.

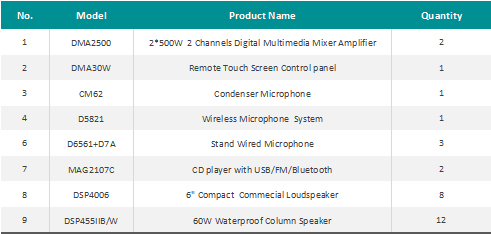

Medium-Sized Mosque_Product List & System Diagram

Note: This solution is provided for reference purposes only. For detailed requirements, please feel free to contact us

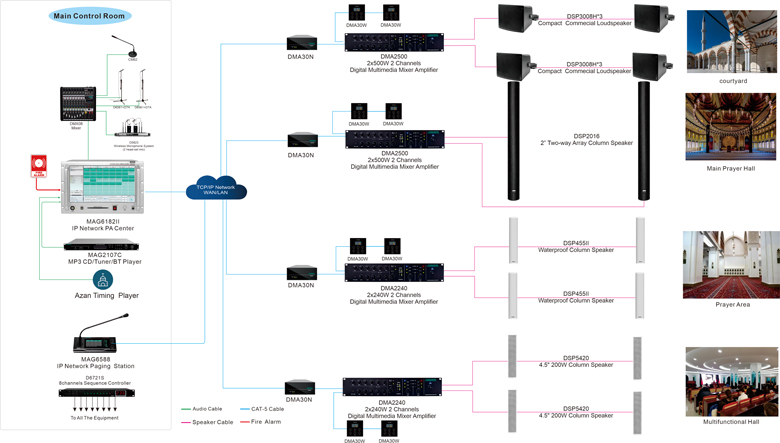

III. Large Mosque Audio Solution (with MAG6000 Network PA System)

Note: This solution is provided for reference purposes only. For detailed requirements, please feel free to contact us.

Powerful Compatibility and System Integration (with MAG6000 Network PA System)

● By connecting the DMA30N decoder to the MAG6000 network PA system, the key challenges of reliability and management efficiency in mosque broadcasting can be effectively addressed, upgrading the DMA2240/DMA2250 from a standalone audio device to a network-based audio platform with centralized management, remote operation and maintenance, and unlimited scalability.

● Support remote network decoding: With the DMA30N playback terminal integrated into the MAG6000 network PA system, the solution enables audio decoding, scheduled playback, and offline playback, while supporting remote control and management, making it suitable for installation across multiple floors of large mosques.

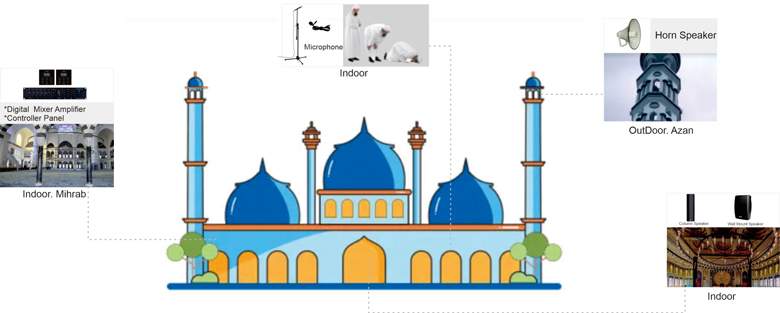

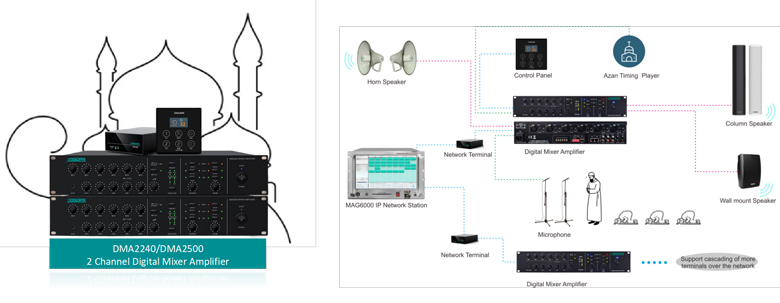

IV. Mosque Audio System

V. Product Overview

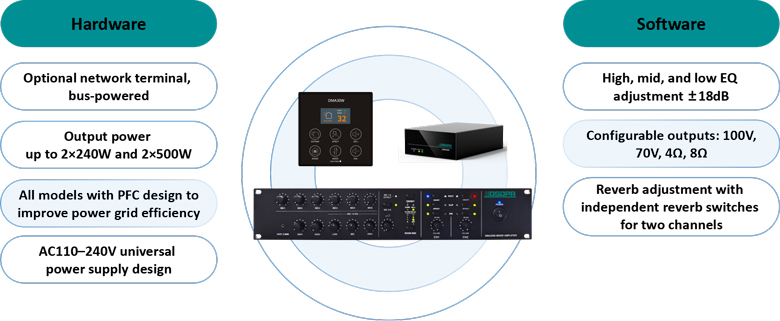

VI. Technical Features

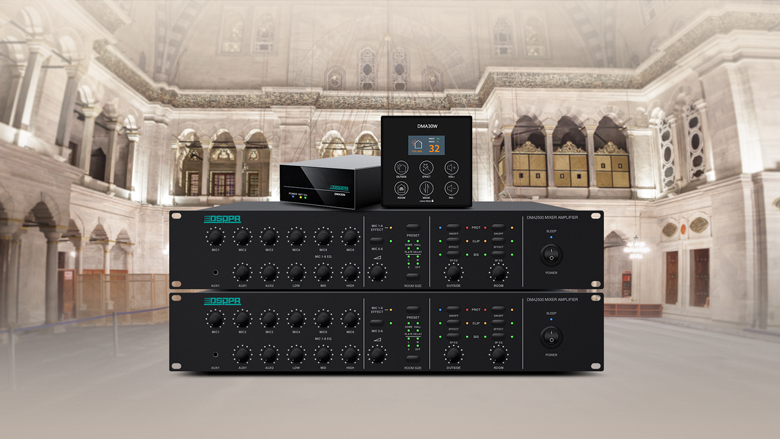

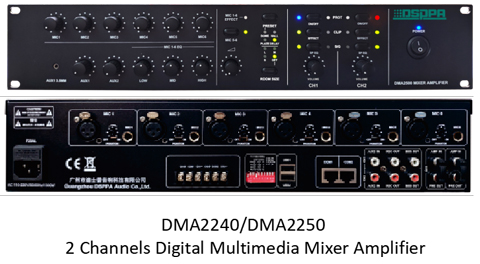

VII. Product Introduction - DMA2240 DMA2500_2-Channel Digital Mixer Amplifier

Features:

● Rated power: 2×240W，2×500W

● 2 channels, each channels could be allocated with 70V/100V or 8Ω

● With 6XLR mic input,each mic with phantom power 48V

● Mic 1-6 with EQ adjustment for each channel

● One 3.5mm audio input in front panel

● 2 channels RAC input and output

● Support max 6pcs remote control panel

● Support EFFECT adjustment from front panel

● Can connect with network terminal DMA30N

● Power supply: AC110V-240V

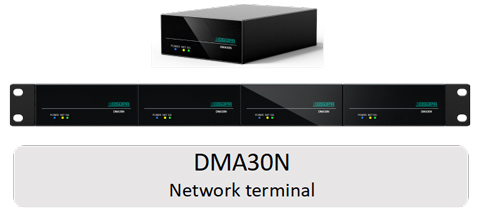

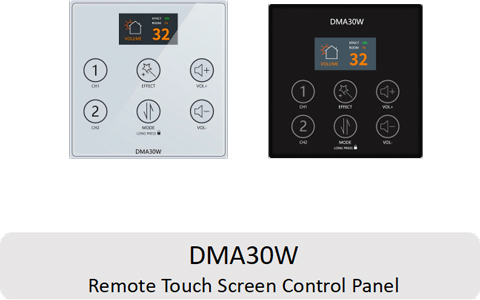

VIII. Product Introduction - DMA30W, DMA30N

● Enables control of zone volume, zone on/off, and EFFECT switch.

● Independent OUTSIDE mode, ROOM mode, and OUTSIDE & ROOM compatible mode can be set via the DIP switches on the configured remote touch panel.

● Supports adjustment of EFFECT reverb depth; for reverb time, it provides three preset modes and one custom mode.

● Supports SP EQ function, controlled by an independent button on the panel: when activated, it switches to horn mode; when deactivated, it switches to standard constant-voltage speaker mode.

● An illuminated RJ45 network interface for LAN (Local Area Network) connection.

● A dual-port RJ45 interface for audio and data bus, used for RS485 bus communication with the host and transmitting analog audio to the host, supporting cascading of DMA30W.

● A single port supports cascading of 3 devices (with stable transmission up to 300 meters); when a single port is connected to one device, it supports a maximum transmission distance of 600 meters. Only one DMA30N is allowed on the bus.

● One RCA jack supporting 1 group of line output.

● Supports access to the MAG6000 system for network decoding and playback.

● Supports offline scheduled playback function.

● Supports fire-fighting linkage alarm (EMC) dry contact output.

● Powered by DC48V via the bus, and supports external DC24-48V power supply (external power supply takes priority). A standard external DC power supply needs to be purchased separately.

● Supports device management, IP modification and terminal program upgrade via standard network-based PC management software.

IX. Outdoor Speakers

IX. Indoor Speakers - DSP5210, DSP5420, DSP5630, DSP5840, DSP1260

Product Description

● High Sensitivity, Low Distortion Design: Features a 4.5-inch paper cone woofer and 1-inch tweeter for natural, smooth sound; delivers clear, balanced audio with enhanced directivity and focused sound energy.

●  Aluminum Alloy Enclosure: Closed, one-piece structure for stability and durability, reducing noise; streamlined metal grille provides a clean and elegant appearance.

●  Applications: Suitable for small to medium-sized venues such as restaurants, tea houses, stations, school plazas, office buildings, medium conference rooms, home theaters, and churches.

X. Application Scenarios

The DMA2240/DMA2500 series amplifiers are highly flexible and powerful universal digital amplifier platforms. While optimized for mosque environments, their core features make them suitable for a wide range of applications that demand high voice clarity, system stability, and ease of operation.
