MA6200U Series 6-Zone Mixer Amplifier System Solution for Small & Medium-Sized Supermarkets

MA6200U Series 6-Zone Mixer Amplifier System Solution for Small & Medium-Sized Supermarkets

I. Solution Overview

●Small and medium-sized supermarkets typically feature large spaces and high customer traffic density, requiring strong and even coverage of background music and paging systems. At the same time, timely delivery of emergency announcements or promotional messages demands a flexible and reliable zoned broadcast and volume control system.

●This solution is based on a 6-zone mixer amplifier, enabling efficient and flexible audio reinforcement across the store through multi-input, multi-zone output, and intelligent control.

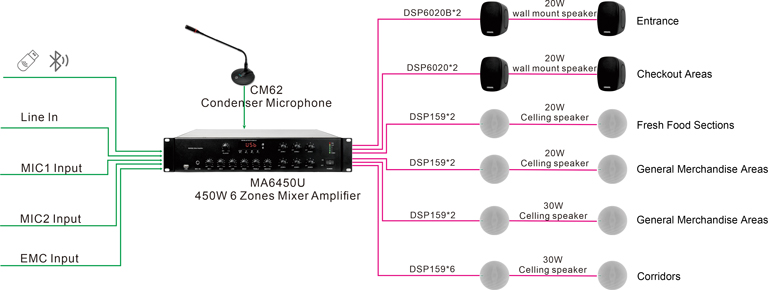

II. Zone Configuration & System Diagram

Note: This solution is for reference only. Please contact us for customized requirements

III. System Configuration Description

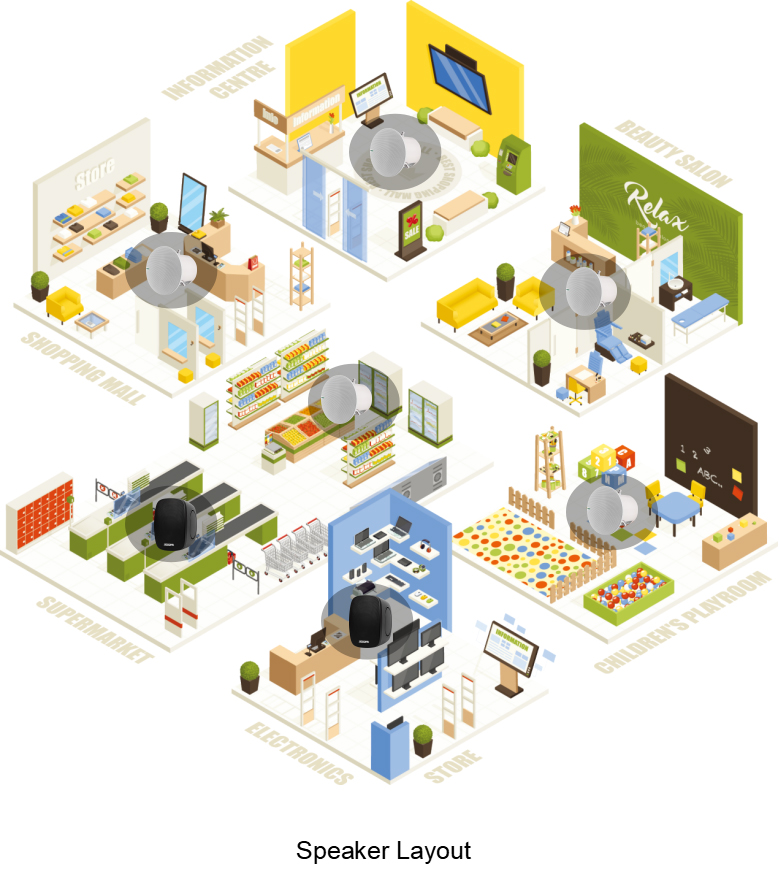

Speaker Selection:

● Public Areas: Ceiling speakers for a neat appearance and uniform sound coverage.

● Entrance / Checkout Areas: Wall-mounted speakers or horn speakers, delivering high clarity and strong sound projection.

● All speakers adopt a 100V constant-voltage distribution system, ensuring simple installation and low signal loss over long-distance wiring.

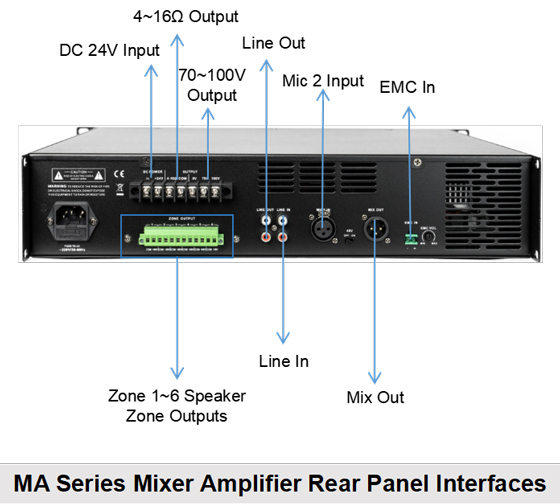

IV. Product Introduction - MA6200U Series 6-Zone Mixer Amplifier

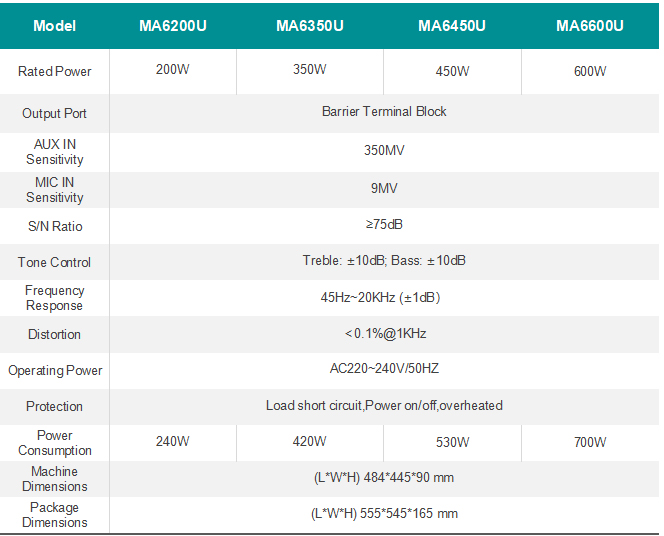

MA Series Mixer Amplifier -Product Specifications

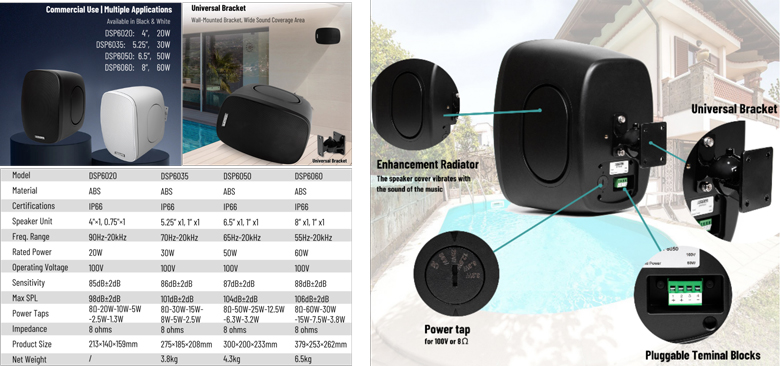

V. Product Introduction - DSP6020 Commercial Weather-Resistant Surface Mount Speaker

VI. Product Introduction - DSP159 HiFi Coaxial Commercial In-ceiling Speaker with Power Tap

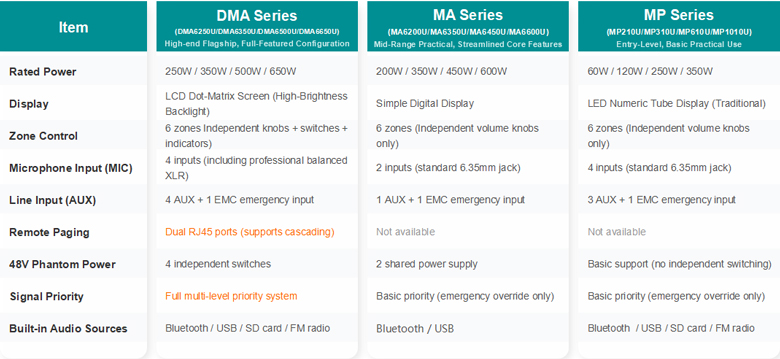

VII. DSPPA 6-Zone Amplifier Series Comparison

VIII. Application Scenarios

The MA6200U 6-zone mixer amplifier, with features such as zoned control, constant-voltage broadcasting, emergency priority override, multi-source input, and long-hour stable operation, is ideally suited for background music, routine paging, and emergency announcement needs across various public spaces.
