Arcade Sound System Solution | 8-Zone Digital Audio Matrix for Entertainment Centers

I. Enhance Arcade Experiences with an Intelligent Multi-Zone Audio Matrix System

• Modern arcade entertainment centers require more than just exciting games—they also demand clear background music, flexible zone management, reliable paging, and dependable emergency broadcasting. As visitor numbers continue to increase, operators need an audio system capable of managing multiple functional areas while maintaining excellent sound quality and operational efficiency.

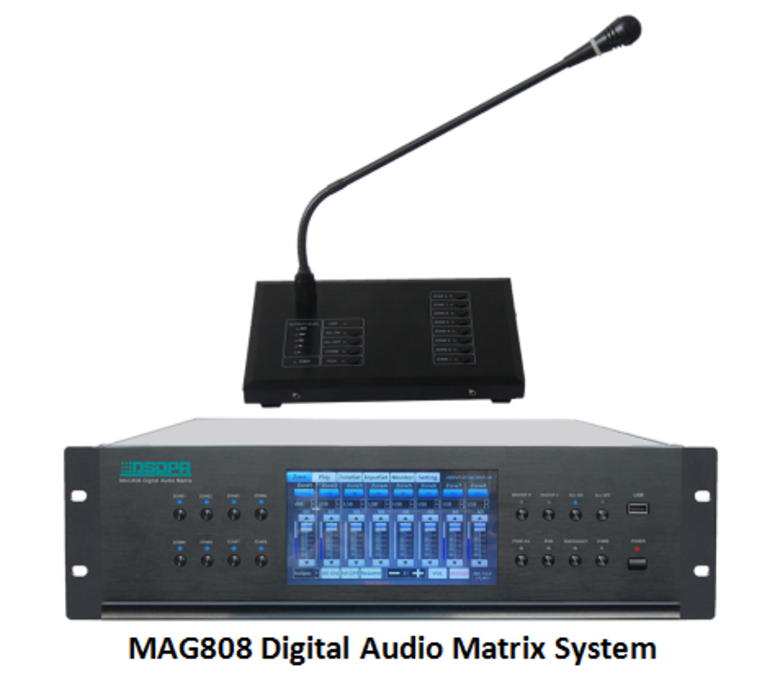

• The MAG808 Digital Audio Matrix System is designed specifically for commercial audio applications, delivering intelligent multi-zone audio distribution, independent source management, emergency paging, and centralized control. It is an ideal arcade sound system for family entertainment centers, amusement parks, VR gaming venues, and indoor playgrounds.

Project Requirements

Independent Multi-Zone Audio

• Supports up to 8 independent audio zones, allowing different music or audio sources to be played simultaneously. Each zone features individual volume adjustment for flexible and interference-free operation.

Clear Paging in Noisy Environments

• Delivers clear and intelligible voice announcements to selected zones, ensuring important messages remain audible even in busy, high-noise arcade environments.

Automatic Emergency Broadcasting

• When integrated with the fire alarm system, the MAG808 automatically suspends background music and switches to emergency broadcasts, helping deliver evacuation instructions without delay.

Remote System Control

• Enables operators to remotely manage audio sources, switch operating modes, and adjust zone volumes via a computer or mobile device, simplifying daily operation and maintenance.

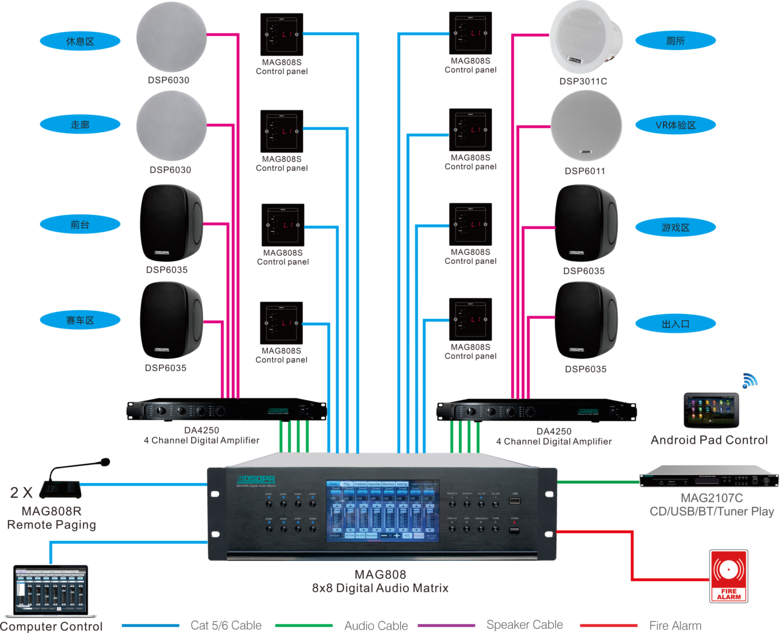

System Connection  & Product List

Note: This solution is for reference only. Please contact us for specific project requirements.

II. MAG808 Application in Game Arcades – System Design Proposal

1. Perfectly Matching Zoning Requirements







2. The native 8-input/8-output matrix supports 8 independent audio zones, covering various areas such as the reception area, gaming zone, VR zone, and lounge area. Each zone features independent EQ and volume control, enabling customized audio experiences for different functional areas and creating the ideal atmosphere for each scenario.





3. Powerful Function Integration




   The system integrates an MP3 player, FM tuner, and Bluetooth module, allowing background music playback without the need for additional audio sources. Equipped with a 7-inch high-definition touchscreen, the host works seamlessly with remote paging microphones and wall-mounted control panels, supporting on-site configuration and centralized front-desk management for intuitive and efficient operation.




4. Cost-Effective and Stable Performance




   Based on a mature constant-voltage audio system architecture, the MAG808 solution offers lower equipment costs, simpler installation, and easier maintenance compared with IP-based network audio solutions. Its industrial-grade hardware design ensures

   reliable 24/7 continuous operation, making it ideally suited for high-intensity and uninterrupted applications in commercial venues such as arcades.




5. Reliable Fire Alarm Integration and Safety Protection




   Equipped with 8-channel dry contact fire alarm linkage interfaces, the system can seamlessly integrate with the venue’s fire alarm system. In the event of a fire emergency, all background music is automatically interrupted, and the system switches to high-priority emergency evacuation broadcasts, fully complying with fire safety requirements for entertainment venues and ensuring safe operation.

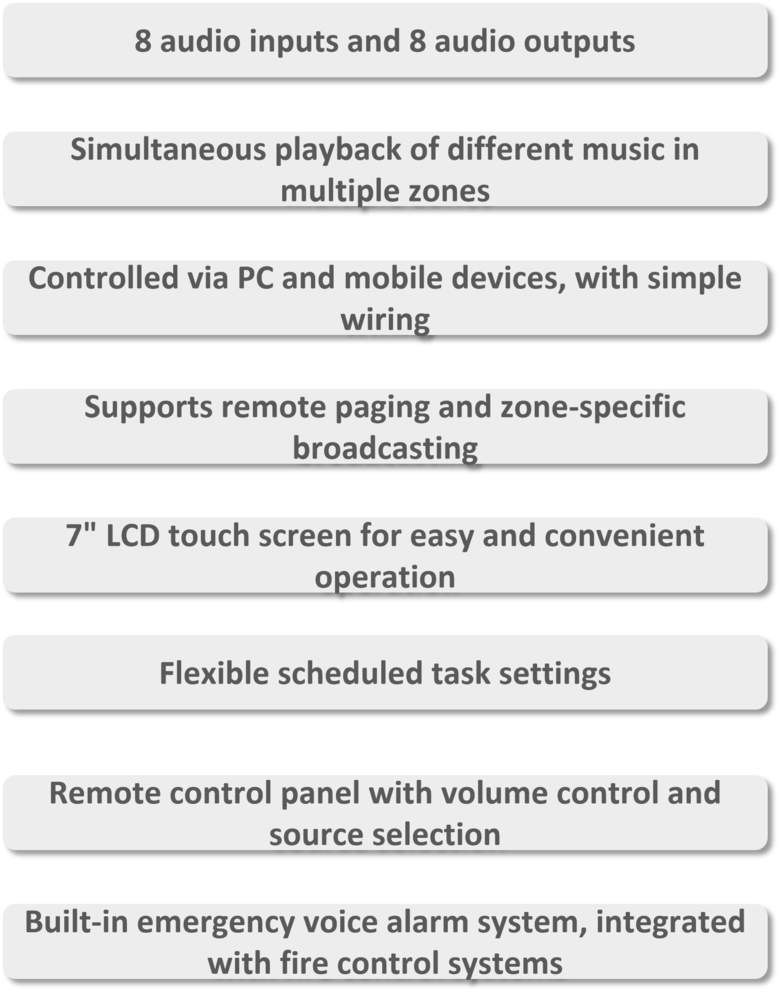

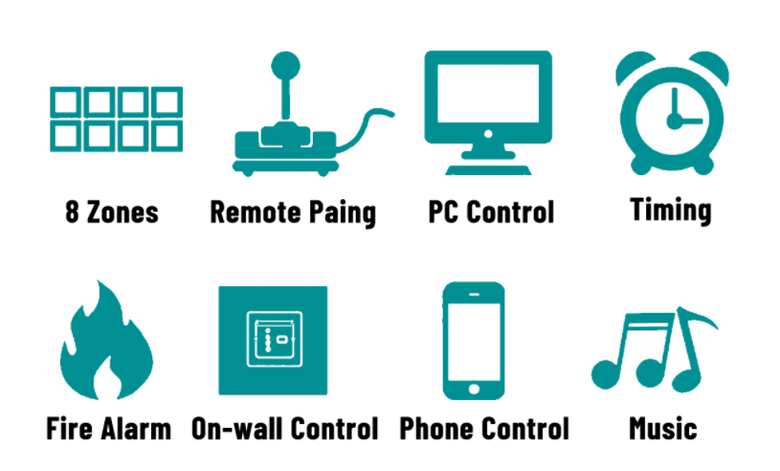

III. ore Features of the MAG808 Digital Audio Matrix System

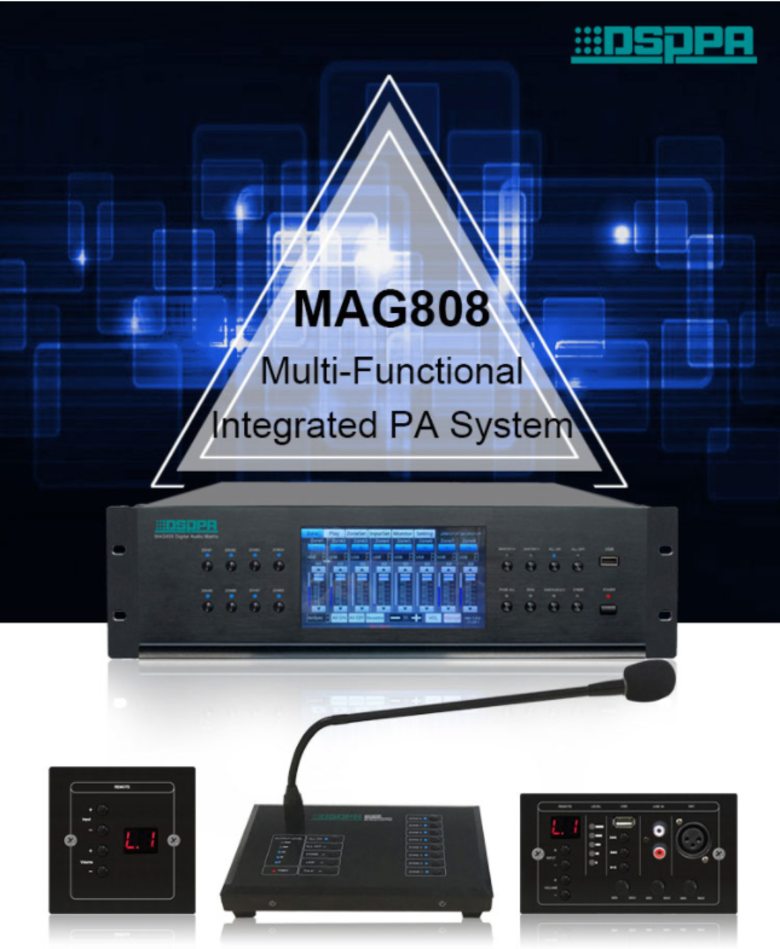

IV. MAG808 System Products Introduction

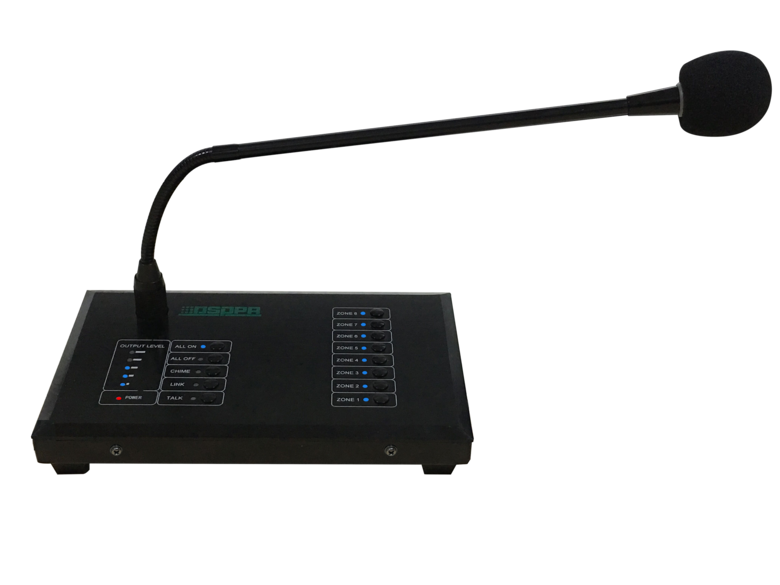

MAG808R——8 Zones Remote Paging Microphone

Features:

• 8 zones control

• Priority of each unit can be set (with 4 different levels)

• Clear signal level indication

• Built-in 2 types of chime signal for paging

• Adjustable volume of MIC and chime

• RJ45 interface, support the cascade linkage

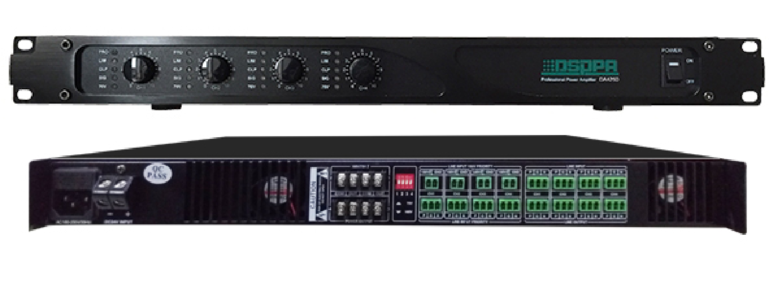

DA4250——4 Channels x250W  Amplifier

Features:

• 4 channel amplifiers within one 1U & 19" case

• Four audio inputs and Four channel speaker outputs

• 5-unit LED for Status

• 70V/100V output switcher, you can select the speaker output for each channel.

• Industrial design for audio project,long term & stable use

• The amplifier will turn into DC power mode when AC power fails. Smoothly change without shutting down.

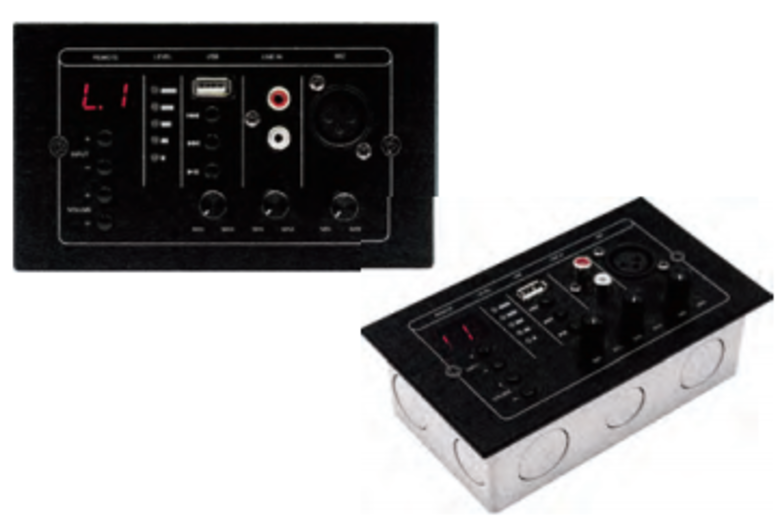

MAG808C ——8 Zones Remote Control Panel with Mic

Features:

• RJ45 port power and control interface

• Balanced audio input and output

• Clear audio signal level indicator

• Independent volume control and audio source selection for each zone

• MP3 via USB input with independent volume control

• 1 line input and 1 MIC input with independent volume control

• Bottom box size: 144x80x45mm

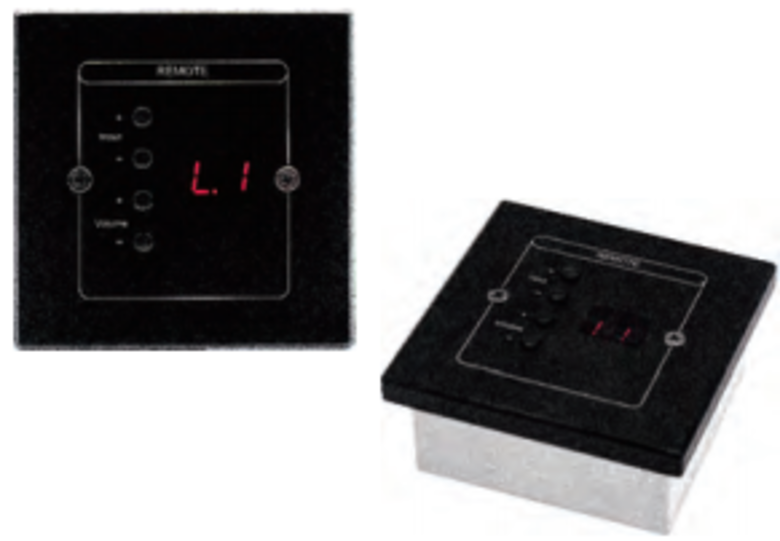

MAG808S ——8 Zones Mini Remote Control Panel

Features:

• RJ45 port power and control interface

• Balanced audio input and output

• Independent volume control and audio source selection for each zone

• 86 case for in wall installation

• Bottom box size: 86x86x33mm

VI. Recommended System Products - DSP6030

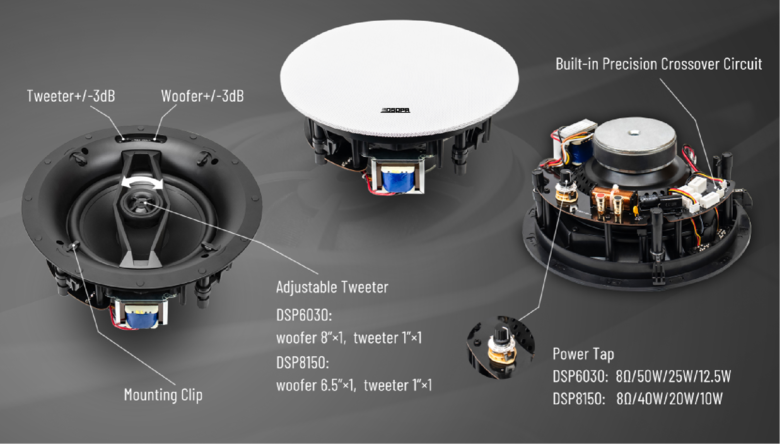

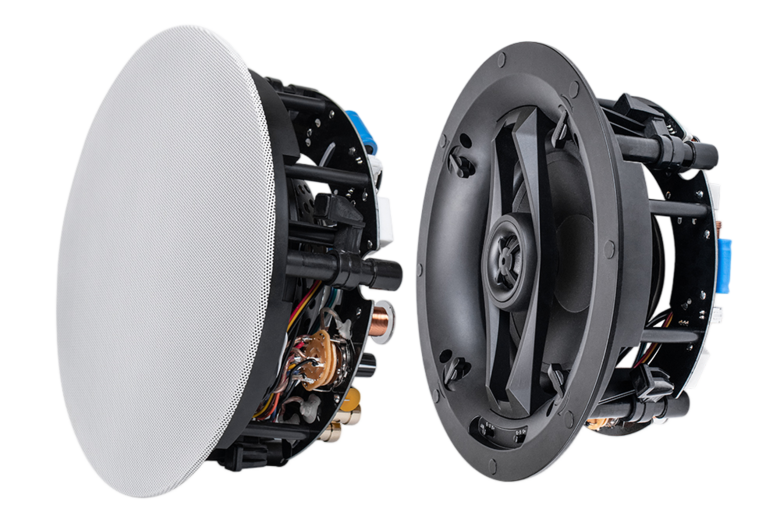

DSP6030——6.5" Coaxial Ceiling Speaker

Features HIFI-grade coaxial sound reproduction, wide frequency response, switchable constant-voltage/constant-impedance operation, refined sound quality, and easy installation.

The DSP6030 is suitable for reception areas, corridors, and retail sections, delivering balanced background music and clear paging.

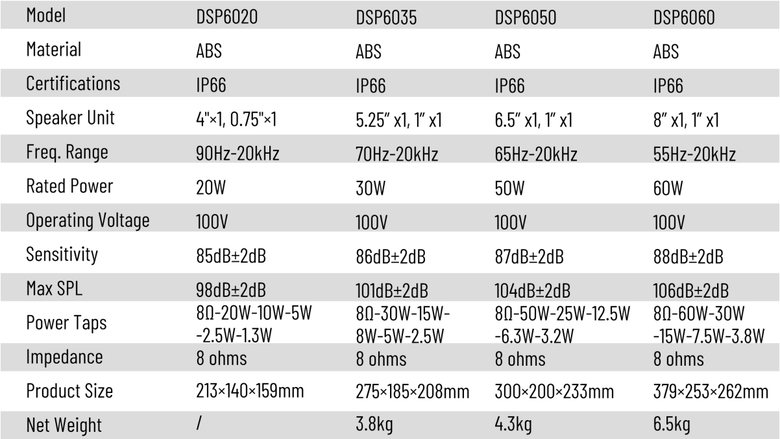

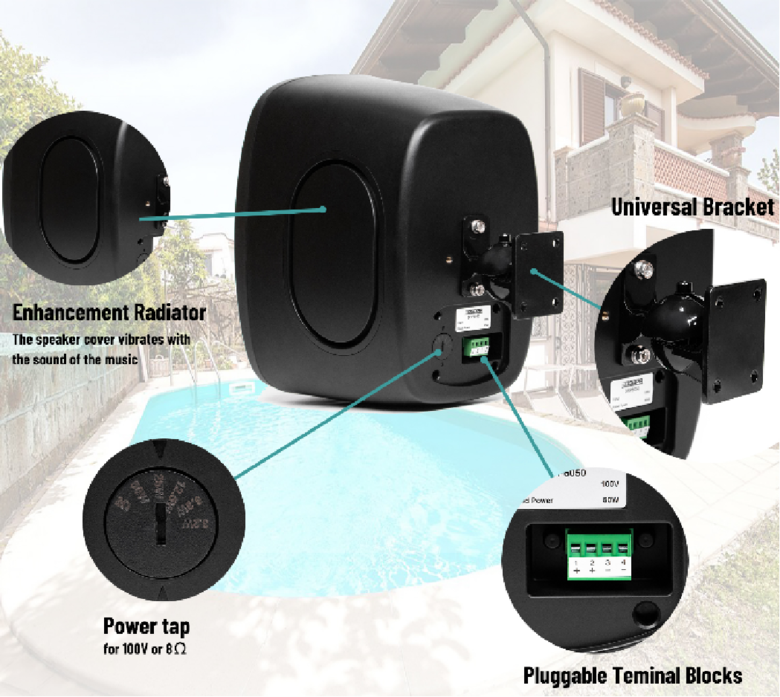

VII. Recommended System Products - DSP6035

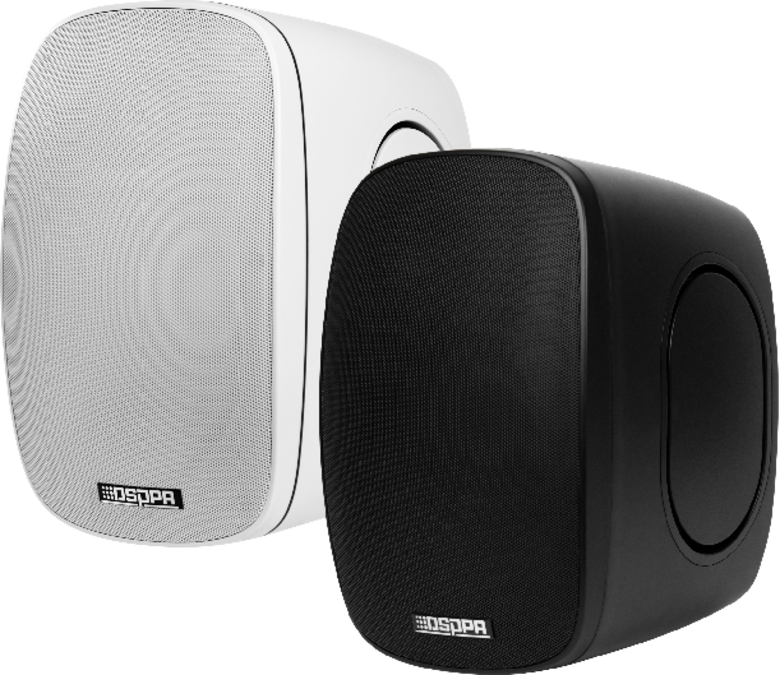

DSP6035——30W Commercial Wall Mount Speaker

Features enhanced low-frequency performance, IP65 all-weather waterproof protection, and dual constant-voltage/8Ω operation modes. With a 2-way speaker design, it delivers clear and transparent sound quality while allowing quick and convenient installation.

A 30W wall-mount speaker engineered for high SPL and long-range sound projection. Featuring excellent acoustic performance and industrial-grade protection, it delivers clear and powerful audio for esports zones, commercial reception areas, and other demanding entertainment environments.

VIII. Applications Beyond Arcade Entertainment Centers

Although optimized for arcade entertainment centers, the MAG808 Digital Audio Matrix System is widely used in various commercial environments, including: Shopping malls, Fitness centers, Hotels, Supermarkets, Bookstores, Restaurants, Office buildings, Educational institutions, Exhibition centers, Museums, Theme parks and Commercial complexes

Its flexible multi-zone audio management makes it an ideal commercial audio solution for any venue requiring independent background music, paging, and emergency broadcasting.
