I. Solution Overview

Conventional single‑function venues are unable to satisfy the varied demands brought by contemporary office work and event activities. Serving as a flexible space for holding conferences, training workshops, academic communications and cultural performances, multi‑purpose halls place high requirements on the professionalism, reliability and smart capabilities of audio‑visual systems, so as to boost operating efficiency and improve user experience. Constructing an AV solution that delivers high efficiency, great flexibility and simple maintenance forms the cornerstone of developing a premium multi‑functional hall.

Project Requirements

Lighting Effects: Compatible with multiple lighting modes, covering dynamic stage show effects, dedicated conference lighting and immersive ambient atmosphere setup.

Sound Reinforcement System: Produce crisp, premium‑grade audio output to accommodate varied event types and different audience zones.

System Flexibility: Allow straightforward system mode switching and parameter tuning for seamless adaptation to a wide range of event scenarios.

Multi‑scenario Applications: Fit numerous use cases including conferences, forums, award galas and small‑size stage performances. Lighting and sound reinforcement units are capable of toggling among distinct operating modes, satisfying functional needs for both business conferences and live performances.

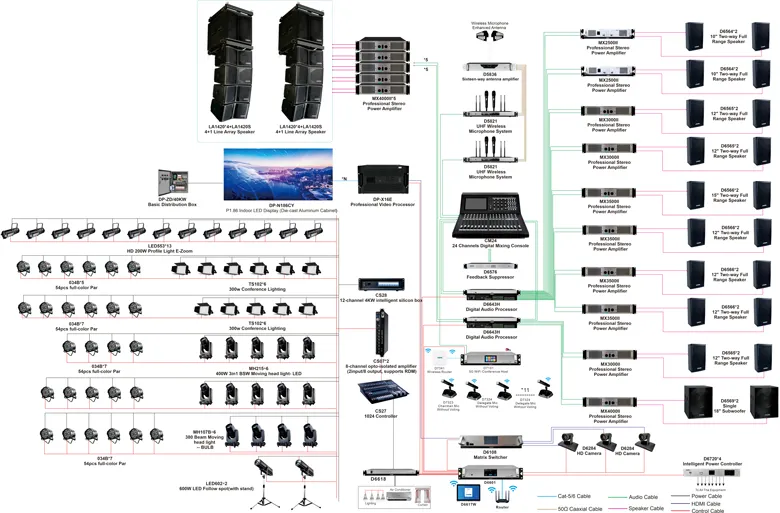

II. Multi-Functional Hall Application System Diagram and Equipment List

Note: This solution is for reference only. Please contact us for specific requirements.

System List

Solution Description

System Architecture:This comprehensive solution comprises line‑array loudspeaker system, 5G Wi‑Fi conferencing hardware, LED visual display setup, stage lighting module, centralized control unit and auto‑tracking camera subsystem.

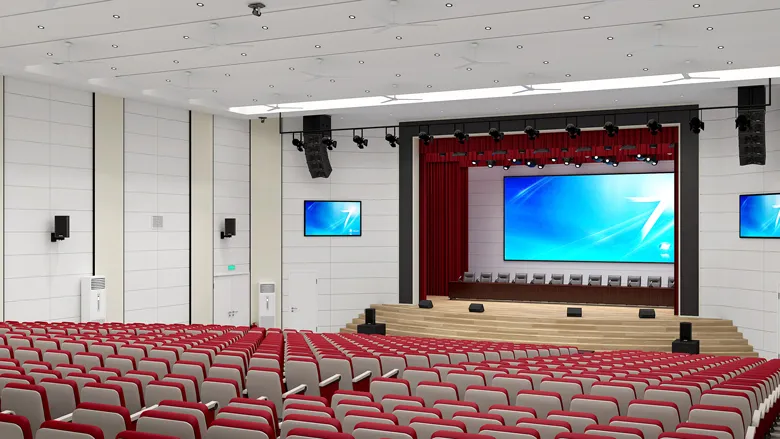

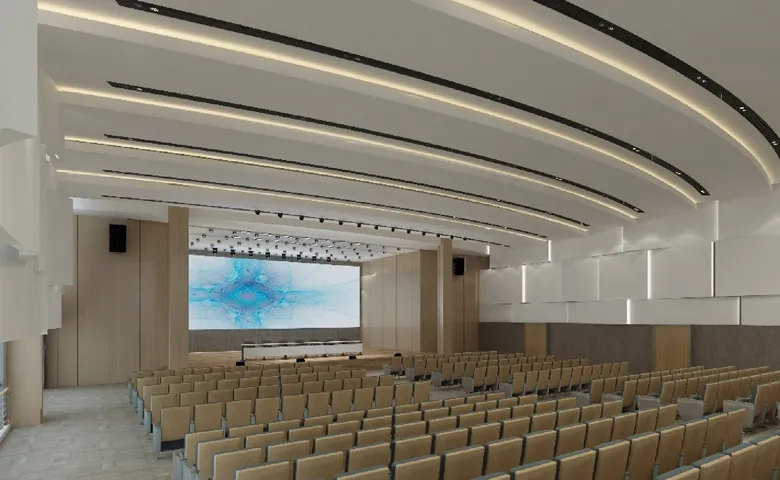

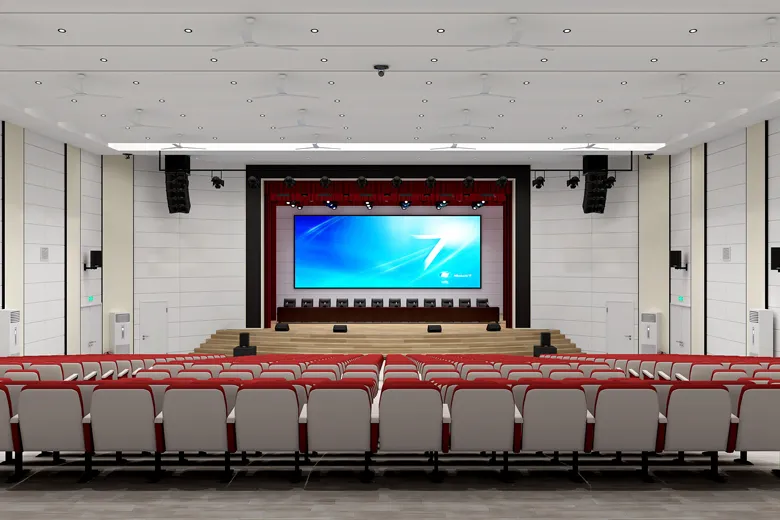

Rendering Image

System Advantages:

All‑scenario Coverage, One Hall for Multiple Uses

This solution offers smooth compatibility for a broad range of activities, such as high‑level administrative meetings, academic briefings, cultural stage shows, year‑end ceremonies, product debuts, media briefings, training workshops, remote video meetings, film viewings and recreational gatherings. It builds a genuinely multi‑purpose venue with extensive application adaptability.

Professional Audio‑Visual Performance for Varied Use Cases

Through deep integration of six core subsystems, the solution delivers a unified experience combining audio, lighting, video and control functions. The line‑array loudspeaker system offers high‑fidelity sound distribution across the whole venue; specialized stage lighting generates targeted visual moods; P1.86 fine‑pixel LED screens present sharp high‑definition images; auto‑tracking cameras intelligently frame speakers; and the central control platform realizes one‑tap intelligent operation.

One‑tap Operation to Boost Working Efficiency

Tablet‑based centralized management simplifies control over all connected equipment, removing reliance on dedicated technical operators. It greatly cuts down pre‑event preparation duration, minimizes manpower expenditure and lowers the possibility of human‑operated mistakes.

Flexible Setup and Harmonized Visual Design

Free from complicated wire routing, the 5G Wi‑Fi wireless conference system supports both permanent and movable arrangement schemes. Loudspeakers use mixed suspended and stacked mounting approaches, achieving uniform sound distribution without compromising the venue’s overall visual appeal.

Well‑planned Layout Balancing Practicality and Aesthetics

Thoughtful deployment utilizing suspended, floor‑mounted, recessed and distributed installation modes guarantees optimal audio‑visual performance, while keeping the hall tidy and elegant. It fits perfectly for official government, corporate and academic occasions.

III. Composition of the Multi-Functional Hall Overall Solution

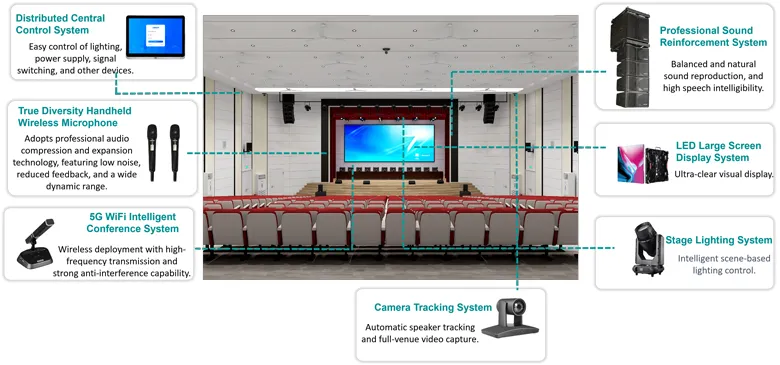

This solution features six core subsystems. Every individual unit can run on its own, yet they achieve seamless interoperability via the central control platform. Together they deliver a full‑fledged audio‑visual setup for multi‑purpose halls, characterized by efficient collaborative operation and smart management capabilities.

IV. LED Display System

The LED display system acts as an information delivery platform built upon LED display technology. It incorporates cutting‑edge know‑how from various fields such as electronics, optics, communication, computing, network technology, structural design and building engineering. Boasting high integration and sophisticated complexity, this engineered solution offers extensive customization to match unique demands from varying projects and usage scenarios.

The system supports flexible matching of diverse input and output signal formats to handle different video source specifications. It realizes a rich set of display capabilities including picture windowing, image overlay, signal roaming, high‑definition background output and scrolling subtitle playback, which can efficiently render assorted video materials and visualized data on‑site. Equipped with preview and status feedback features, it delivers intuitive visual operation and administration, bringing simple, fast and user‑friendly control experience. This system finds broad deployment in urban security surveillance, smart traffic management, video conferencing, large‑scale conference venues, commercial plazas, military command hubs and governmental premises.

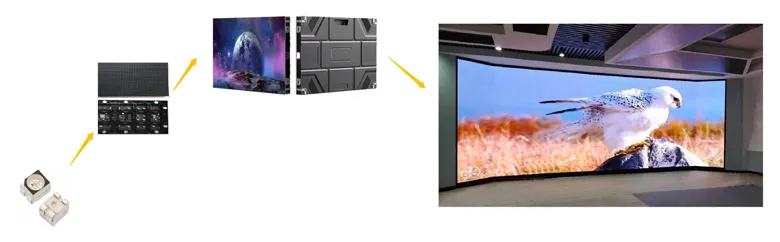

LED Display Hardware Architecture: LED Package → Module → Cabinet → Complete Display Screen

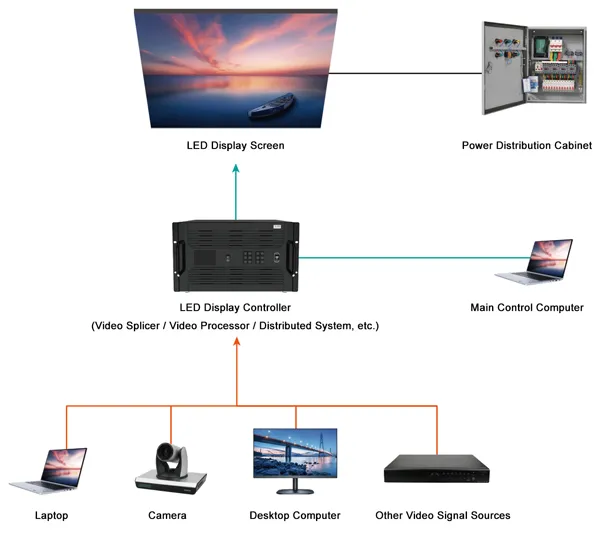

System Topology Diagram

Display Components: Display cabinets, modules and related hardware responsible for visual image output.

Power Supply Components: Switch‑mode power supplies embedded inside display cabinets, together with power distribution units.

Control System Components: Receiver cards pre‑installed within display cabinets, transmitter units, video processors and splicing controllers, as well as other hardware dedicated to video signal processing.

Control Computer: Applied for system parameter configuration, on‑site debugging and fine‑tuning of display performance.

Signal Sources: A variety of external video input feeds connected to the LED display system.

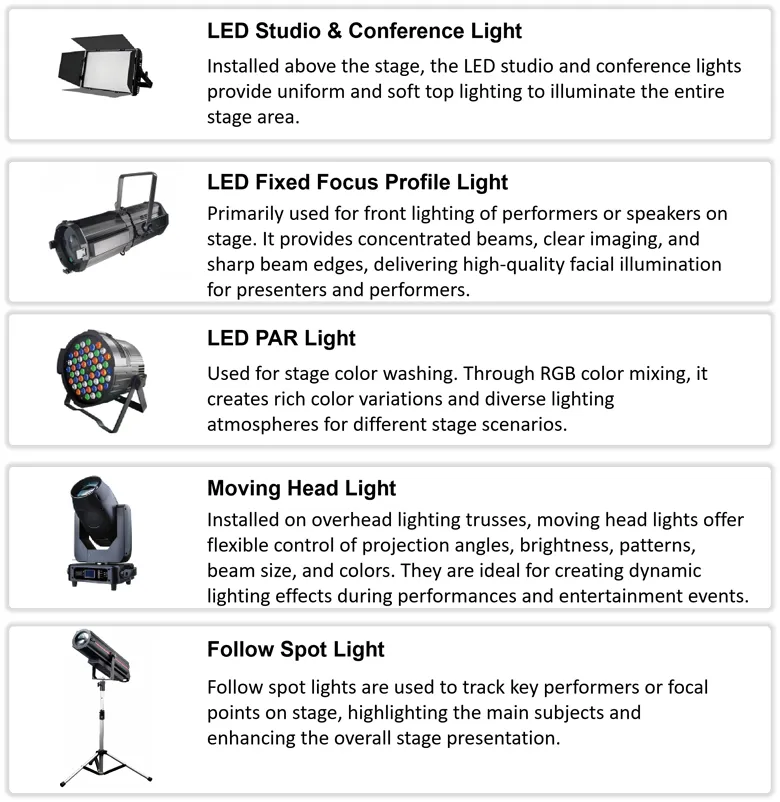

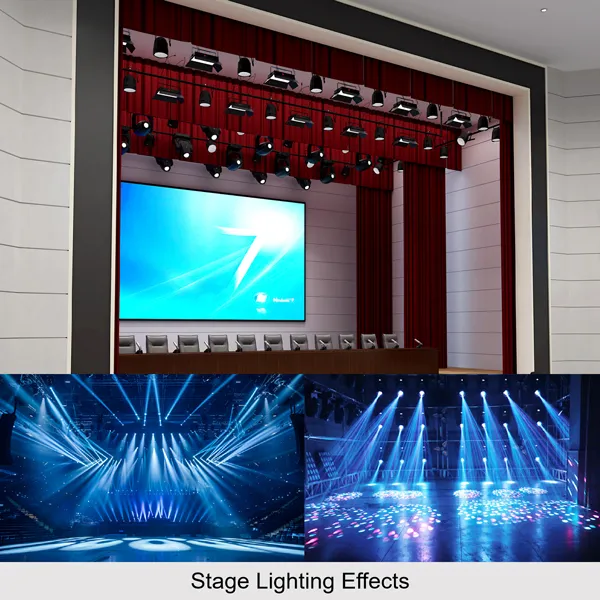

V. Stage Lighting System

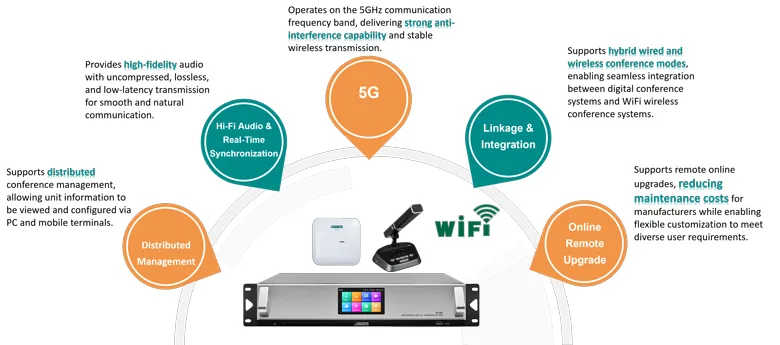

VI. D7101 & D7341 5G WiFi Wireless Conference System

The 5G Wi‑Fi wireless conference system works within the 5.8GHz frequency spectrum to achieve stronger anti‑interference performance, larger bandwidth capacity and higher‑speed data transfer. Adopting soft‑mixing wireless Wi‑Fi digital audio transmission technology, it provides a deployment‑friendly conference solution featuring uncompressed lossless audio output and low signal latency. The system ensures dependable sound quality and supports highly flexible installation arrangements.

VII. LA1420 / LA1420S Professional Line Array Sound Reinforcement System

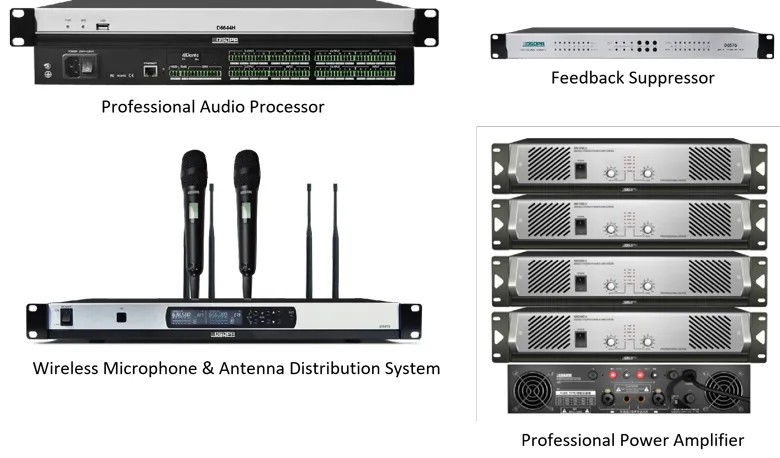

A professional sound reinforcement system mainly covers five core signal processing links: Audio Source → Control → Processing → Amplification → Sound Reproduction.

Audio Source: Comprises DVD players, CD players, wireless microphones, gooseneck microphones and other audio input hardware.

Control: Features audio mixing consoles responsible for signal routing, volume level adjustment and overall audio management.

Processing: Consists of audio processors, feedback suppressors, effect units, equalizers and microphone mixers, which are applied for audio optimization and system tuning work.

Amplification: Adopts professional power amplifiers to supply adequate power output for loudspeaker assemblies.

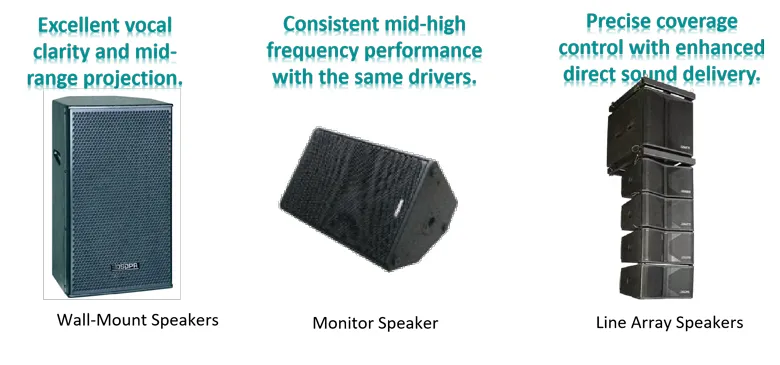

Sound Reproduction: Includes professional loudspeaker units and line‑array speaker systems to realize precise, high‑impact sound field coverage.

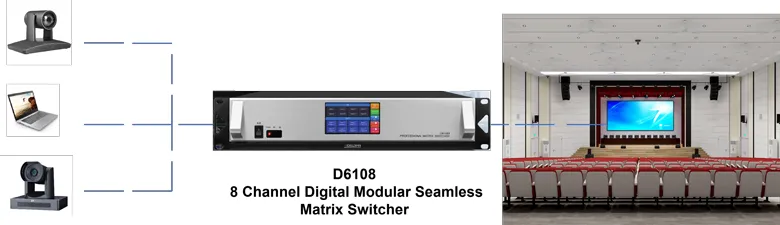

VIII. D6108 High-Definition Signal Processing System

Designed with a modular plug‑in chassis structure, the system enables convenient module expansion and component replacement. It accommodates multiple input and output signal standards such as HDMI, DVI, VGA, SDI and AV. Supporting multi‑signal matrix switching, the unit reaches up to 1920×1200 for maximum input resolution. Input and output cards can be flexibly assembled to fit distinct project demands, delivering complete solutions for complex audio‑visual signal administration.

●It comes with a 4.3‑inch true‑color LCD panel and capacitive touch screen to deliver user‑friendly intuitive operation.

●It supports one‑to‑many signal switching, which enables fast distribution of one single input source toward multiple output channels.

●Scheduled signal switching and independent channel switching functions are available.

●Direct mapping mode is supported, realizing one‑to‑one signal routing between input and output ports (for instance, Input 1 corresponds to Output 1, Input 2 corresponds to Output 2, and follow‑up channels in the same manner).

IX. D6601 Central Control System

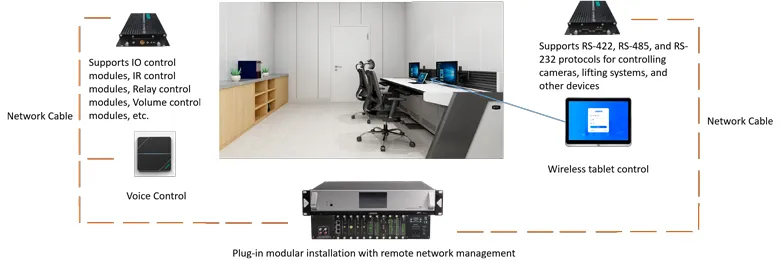

Operators can centrally manage and control diverse hardware devices inside the multi‑purpose hall via multiple control terminals such as wireless tablets, wall‑mount control panels and PCs. Controllable devices cover lighting fixtures, air‑conditioning units, electric curtains, cameras, video matrix switches, audio volume parameters, power management modules, as well as speaker‑tracking camera systems.

●It adopts a distributed framework alongside modular plug‑in construction to facilitate flexible system expansion and field installation. Its control range is not restricted by physical cable layouts.

●Remote network‑based control and device administration over TCP/UDP protocols are supported.

●It is compatible with remote voice commands, ZigBee, LoRa and RF wireless control modes, as well as timed automatic control tasks.

●A built‑in media player is integrated, with compatibility for lossless audio and various media file formats.

●The system can implement unified management across several conference rooms, while preserving independent local control access for each individual space.

X. Application Scenarios

Combining professional sound reinforcement hardware, ultra‑high‑definition visual display, stage lighting equipment and intelligent central control modules, this solution delivers flexible adaptability for a wide array of scenarios, ranging from academic briefings and commercial activities to cultural stage performances and emergency command deployments.
