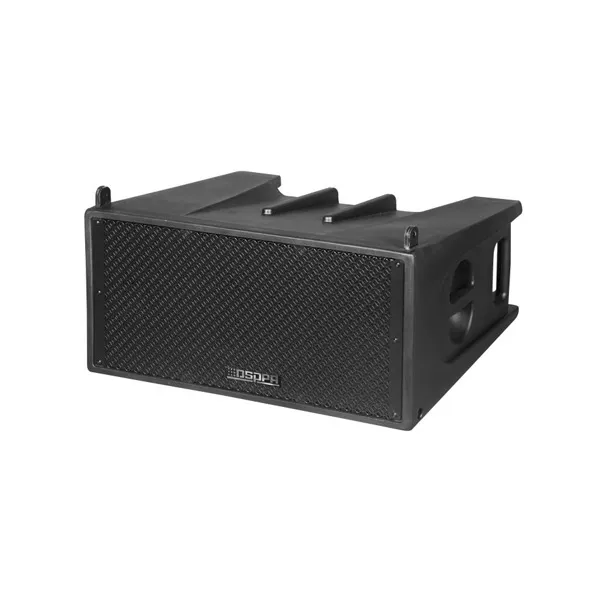

The D7733 is a dual 10-inch 3-way all-weather line array loudspeaker engineered for clear, detailed sound with strong projection. Its IP66-rated enclosure and versatile three-point suspension make it ideal for outdoor and large-scale installations.
Model | D7733 |
System Configuration | 2×10" LF, 1×3.5" MF, 1×1.75" HF |
Frequency Response (±3dB) | 70 Hz-18,000Hz |
Sensitivity | 101±2dB |
MAX. SPL. | 128±2dB |
Input Impedance | 8Ω |
Rated Power | 500W |
Directivity (H) | 90° |
Dimensions (H×W×D) | 306×671×458mm |
Weight | 23kg |
