Explosion-Proof Networked Broadcasting & Communication Solution for Chemical Plants MAG201FD MAG202FD MAG206FD MAG204HD

Explosion-Proof Networked Broadcasting & Communication Solution for Chemical Plants

I. Solution Overview

● Chemical plants typically operate in environments with potential risks of flammable and explosive materials. In such hazardous conditions, the safety, reliability, and stability of communication systems are of critical importance. Conventional communication methods often fail to meet the specialized requirements of chemical production facilities.

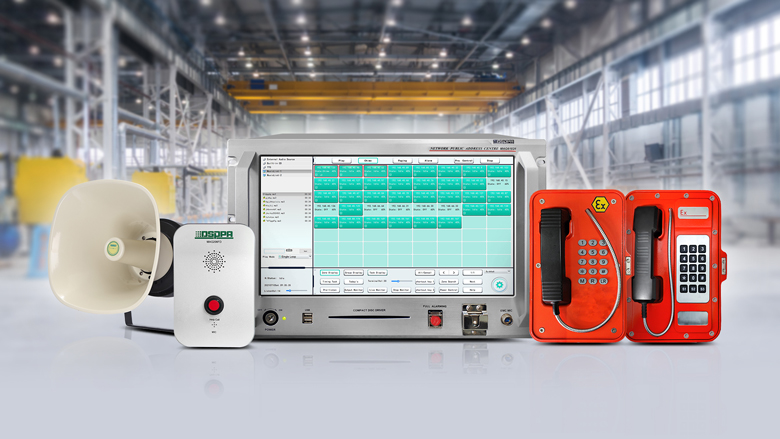

This solution is built around the DSPPA MAG6000 IP Network Public Address System, integrating MAG201FD / MAG202FD explosion-proof networked SIP telephones and the MAG206FD explosion-proof networked industrial intercom terminal.

● Together, they form a fully digital, explosion-proof, integrated, and scalable broadcasting and communication system specifically designed for chemical plant applications.

Design Objectives

● Enhance Production Safety: Enable real-time alarm notification and information dissemination for equipment failures, hazardous conditions, and emergency incidents, ensuring rapid response and effective risk mitigation.

Ensure Reliable Communication: Provide stable and convenient voice communication throughout the plant, supporting both daily operational coordination among personnel and efficient collaboration during emergency situations.

● Integrate Broadcasting and Alarm Systems: Combine IP-based explosion-proof telephones with the networked public address system to ensure clear and reliable delivery of voice announcements and alarm messages across different plant environments.

● Comply with Explosion-Proof Requirements: Ensure that all system devices meet relevant explosion-proof standards, allowing safe and reliable operation in environments containing flammable and explosive gases.

II. Explosion-Proof Solution Configuration List & System Diagram for Chemical Plants

System Architecture:

● Core Network Infrastructure: Switches, routers, and firewalls are deployed to ensure network security, stability, and high reliability across the entire system.

● Terminal Devices: Explosion-proof networked industrial intercom terminals and explosion-proof networked SIP telephones are installed in hazardous areas in compliance with explosion-proof requirements, while the broadcasting system provides full-area coverage throughout the plant.

● Management Platform: The system is equipped with the MAG6000 Central Management Software, enabling integrated device management, remote monitoring, fault alarm reporting, and centralized system control.

Note: The quantity and configuration of terminals can be adjusted according to the functional zones and total area of the chemical plant.

III. System Functions

● Daily Broadcasting & Notifications: The MAG6000 system supports the configuration of work shift bells, safety reminders, and background music for daily operations. Based on predefined safety events, the system can automatically trigger emergency broadcasting to rapidly deliver alarms and instructions during incidents such as fire, gas leakage, or explosions. The MAG201FD / MAG202FD explosion-proof telephones support keypad dialing to initiate paging and broadcasting, enabling efficient on-site command and coordination.

● Real-Time Intercom & Communication: The system provides full-duplex intercom communication for real-time voice interaction between personnel. In addition, scheduled broadcasting functions can be used to remind workers to carry out regular equipment inspections or other necessary operational tasks.

● Emergency Response & Fire System Integration: All explosion-proof terminals are equipped with ALARM IN interfaces, allowing them to receive dry-contact signals from the fire alarm system and automatically trigger preset emergency audio messages.

● Real-Time Status Monitoring: The MAG6000 host enables real-time monitoring of terminal online status, volume levels, and call activity, ensuring effective system supervision and rapid fault response.

● Multi-System Integration: All terminals support the standard SIP protocol, allowing seamless integration with enterprise IP-PBX or VoIP telephone systems.

IV. MAG6000 Explosion-Proof System Topology

All explosion-proof terminals support the standard SIP protocol. They can be seamlessly connected to the customer’s SIP telephone system, enabling remote paging and full-duplex intercom communication via mobile phones or SIP phones.

V. Integration with DSP9000 SIP Telephone System

● Both the DSP9000 system and the MAG201FD / MAG202FD explosion-proof SIP telephones, as well as the MAG206FD explosion-proof intercom terminals, support the standard SIP (Session Initiation Protocol). SIP is used to establish call connections between devices, enabling voice and video communication. Through SIP, the DSP9000 system and explosion-proof communication terminals can interoperate within a unified IP network.

● When the DSP9000 system is deployed together with explosion-proof telephones and explosion-proof industrial intercom terminals, voice, video, and alarm information is transmitted via SIP and other standard protocols. This enables efficient system coordination for emergency response, on-site monitoring, and safety management, ensuring reliable communication in hazardous environments while providing real-time operational information and emergency support.

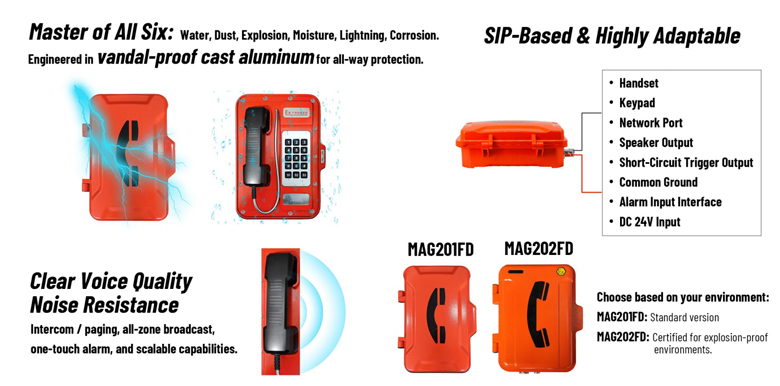

VI. MAG202FD Explosion-Proof SIP Telephone

Features:

● Explosion-Proof Certification: Ex db ib IIB T6 Gb, intrinsically safe and flameproof design.

● Supports quick paging and dial paging to single or multiple networked playback terminals, as well as quick intercom and dial intercom communication with paging stations.

● Supports basic public address functions such as background music playback and scheduled broadcasting.

● Features one short-circuit trigger input, allowing connection to an external alarm button to activate preset audio sources on the server for linked alarm broadcasting.

● Provides one short-circuit signal output for emergency linkage control of external devices.

● Supports Power over Ethernet (PoE) and external power adapter supply.

● Supports the standard SIP protocol, enabling telephone communication with SIP phones.

● Equipped with a built-in 30W broadcasting power amplifier. Output power: 15W/8Ω when powered by PoE, or 30W/4Ω when powered by a DC24V adapter.

Features

VII. MAG206FD Explosion-Proof Networked Industrial Intercom Terminal

Features:

● Runs on an embedded Linux operating system, providing stable and reliable 7×24 continuous operation.

● Features a minimalist appearance with a screw-concealed panel design for a cleaner and more aesthetic look.

● Single-key design (with call target pre-configured on the server) enabling full-duplex intercom with the paging station.

● Capable of playing background music, scheduled broadcasts, emergency paging, and alarm signals from the system host.

● Supports the standard SIP communication protocol and can connect to customer SIP telephone systems, enabling remote paging and full-duplex intercom with mobile phones and SIP phones.

● Equipped with a 3W speaker and microphone, supporting hands-free communication, broadcast reception, and live monitoring.

● Incorporates echo cancellation and howling suppression algorithms to effectively prevent acoustic feedback and intercom echo.

● Supports one short-circuit trigger input for connecting an external alarm button to activate preset audio sources on the server for linked broadcast triggering.

● Supports one short-circuit output for controlling external devices during emergencies.

● Supports both PoE and DC power supply.

● Supports web-based configuration of SIP parameters.

● External amplifier output power: 15W/8Ω via PoE digital amplifier, 30W/4Ω via DC supply.

● Industrial-grade explosion-proof design: waterproof, dustproof, explosion-proof, rugged and durable, with good sealing.

VIII. MAG204HD Explosion-Proof PoE Networked Horn Speaker

Features:

● Features excellent flameproof performance and sufficient mechanical strength.

● Supports digital audio stream decoding with a maximum sampling rate of 48 kHz and 16-bit resolution.

● Capable of playing background music, scheduled broadcasts, emergency paging, and alarm signals from the system host.

● Supports remote configuration and modification of network parameters via a web-based interface.

● Equipped with a built-in 20W digital power amplifier and low-power settings.

● Provides a complete interface compliant with IEEE 802.3af/at standards for Power over Ethernet (PoE) systems.

● High acoustic sensitivity and excellent electro-acoustic conversion efficiency.

● Flame-retardant materials with high fire resistance, generating no harmful gases and causing no environmental pollution.

● Easy to use and maintain.

IX. Application Scenarios

Suitable for use in environments with special requirements for moisture resistance, fire resistance, explosion protection, sound insulation, and frost resistance, such as mines, highways, ships, power plants, metro systems, light rail transit systems, and steel plants.
