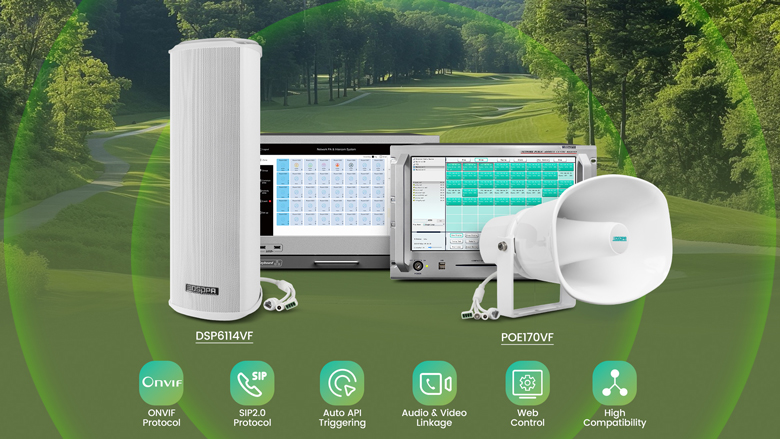

Integrated Intelligent PA & Security System Solution for Parks POE170VF / DSP6114VF

POE170VF / DSP6114VF – Integrated Intelligent PA & Security System Solution for Parks

I. System Overview

● Parks, as important venues for citizens’ leisure and recreation, require functions such as background music playback, emergency broadcasting, security monitoring, and intelligent alarm linkage. Traditional public address systems are limited in functionality and cannot be integrated with surveillance systems, making it difficult to meet the management requirements of modern parks.

Project Requirement

● Integrated Management: Unified platform for broadcast and surveillance management.

● Intelligent Linkage: Camera events trigger audio alarms.

● High-Quality Audio Output: Supports background music and voice announcements.

● Environment-Adaptive: AI column speakers automatically adjust volume based on ambient noise.

● Flexible Deployment: Supports PoE power supply for easy wiring.

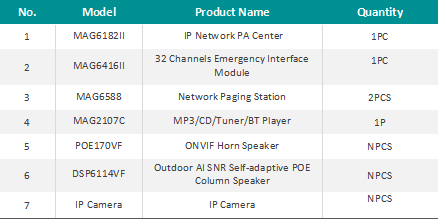

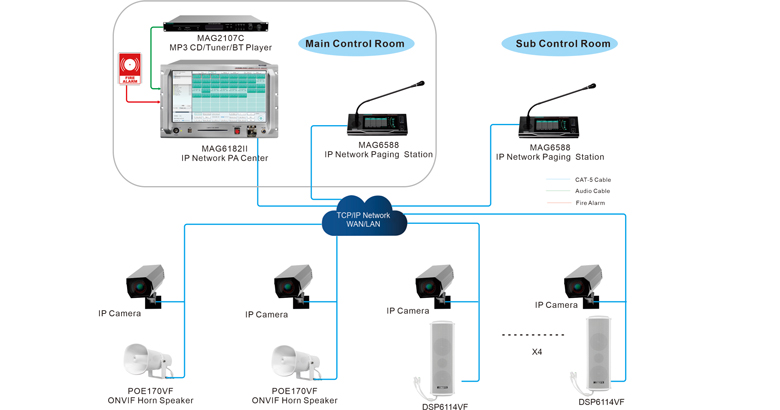

II. Solution Configuration (with the MAG6000 System)

Solution Configuration Description

Remote Control: DSPPA’s MAG6000 network PA system supports zoned, point-specific, area-specific, and full-area paging. In emergencies, the monitoring command center can coordinate with the surveillance system to guide on-site evacuation via broadcast paging, enabling timely response and significantly improving operational efficiency.

Environment-Adaptive: Using DSP6114VF column speakers, areas with high ambient noise can automatically adjust volume through AI technology, ensuring broadcasts remain within an optimal audible range.

Security Linkage: The audio system can integrate with the park’s security monitoring system, allowing cameras to trigger broadcast functions. For example, when a camera detects abnormal activity or security events, the system automatically plays pre-set voice messages or live announcements.

Multi-Point Coverage: POE170VF horn speakers cover large open areas, while column speakers are suitable for specific zones or high-noise areas, ensuring full audio coverage throughout the park.

Note: This solution is provided for reference purposes only. For detailed requirements, please feel free to contact us.

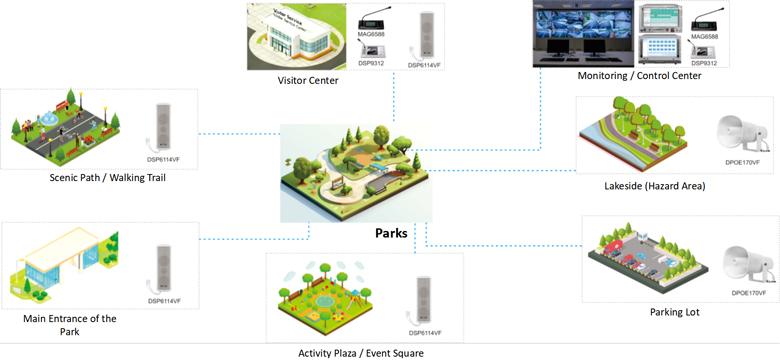

Park Device Placement

Each camera can be paired with a column speaker or horn speaker and supports multiple event triggers. (Can be used with MAG6000 and DSP9000 systems, respectively.)

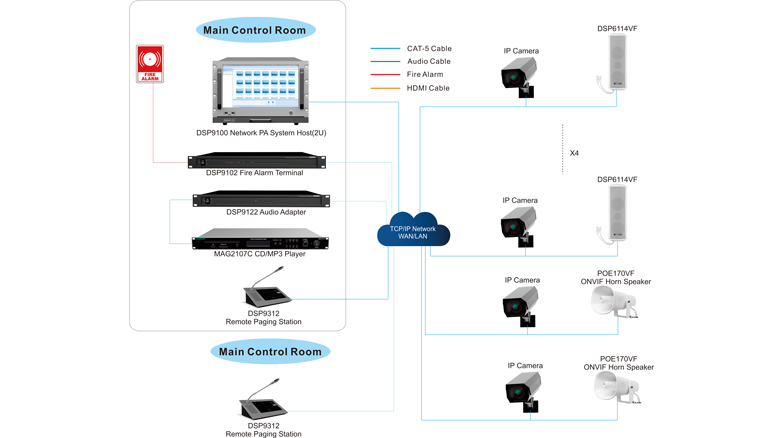

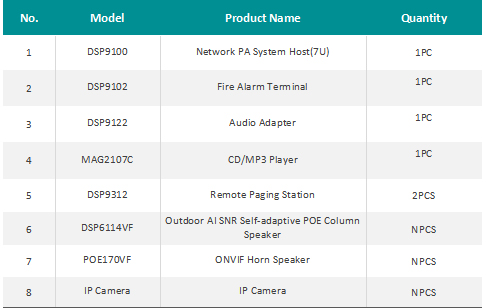

III. Solution Configuration (with the DSP9000 System)

Remote Control: DSPPA DSP9000 IP Network PA & Intercom System integrates the network sound reinforcement system with the SIP intercom system, with simple setup and dependable performance.

Emergency Broadcasting & Paging: Administrators can initiate full-area or zoned broadcasts via SIP phones or software. Emergency broadcasts or event notifications can also be manually triggered through the web interface.

Environment-Adaptive: Using DSP6114VF column speakers, areas with high ambient noise can automatically adjust volume through AI technology, ensuring broadcasts remain within an optimal audible range.

Security Linkage: When cameras detect zone intrusion, tripwire alarms, or obstruction alarm, the system automatically triggers the paired column speakers to play pre-set alert sounds (e.g., “Please stay away from the water”). Alert sources can be prioritized, with high-priority alerts interrupting lower-priority ones.

Multi-Point Coverage: POE170VF horn speakers cover large open areas, while column speakers are suitable for specific zones or high-noise areas, ensuring full audio coverage throughout the park.

Note: This solution is provided for reference only. For detailed requirements, please feel free to contact us.

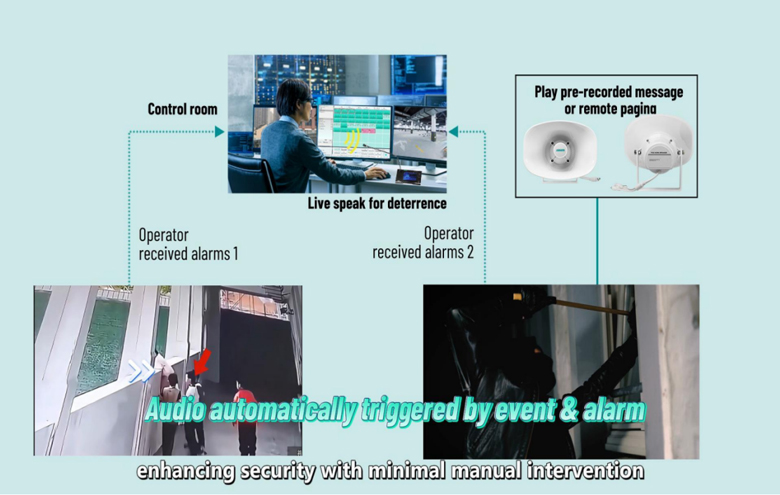

Automatic Alarm Triggering Method

Configuration Workflow

● Assign static IP addresses to each column speaker or horn speaker.

● Bind ONVIF cameras and configure trigger events via the web interface.

● Upload alarm audio files and configure playback rules.

● Verify linkage response and automatic volume adjustment.

Advantages

● Intelligent Operation: AI volume control with event-based alarm activation.

● System Integration: Unified audio–video management lowers O&M workload and cost.

● Robust Reliability: Weatherproof outdoor construction with built-in short-circuit and overload protection.

● Scalable Architecture: Compatibility with standard protocols enables smooth system expansion in the future.

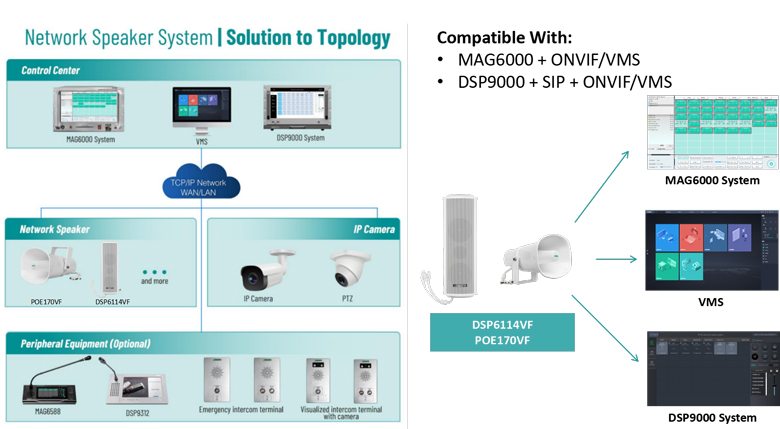

IV. System Topology

V. Product Advantages

Network announcements and pre-recorded messages take priority over SIP or standard IP camera protocols via intuitive browser interface, allowing rapid response during emergencies.

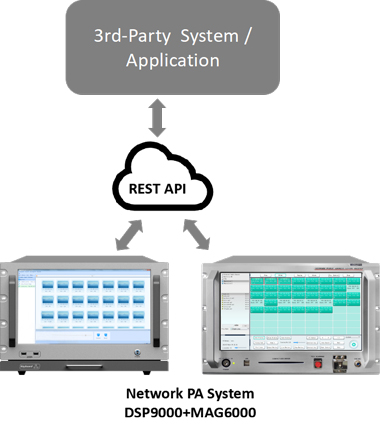

The IP horn speaker module has a REST API for 3rd-party integration.

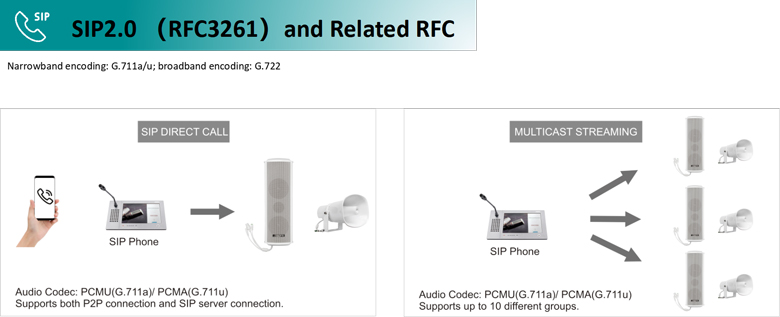

VI. Multiple Network Protocols

Allowing SIP Phone Calls and Multicast Streaming

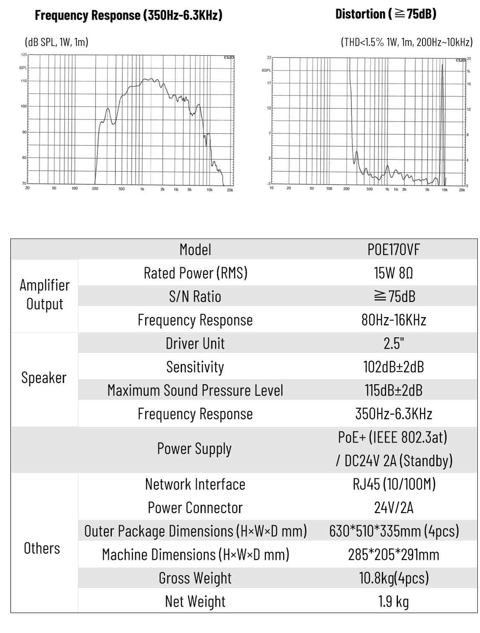

VII. Product Features_POE170VF

Features:

● 10/100M adaptive, support DHCP/static IP.

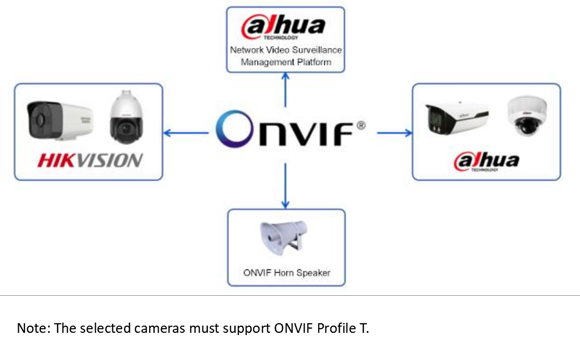

● Support standard ONVIF protocol.

● Can play background music, emergency paging, alarm signals, etc. from the host system.

● Adopt high-quality ABS plastic and high-dynamic range speaker unit for clearer and brighter sound.

● Equipped with a mounting bracket for easy installation.

● All-weather design, suitable for both indoors and outdoors, applicable to different occasions.

● Adjustable short-circuit detection mode.

● Supports downloading audio files in formats such as MP3 and WAV.

● Adjustable priority for three input sources, including ONVIF, network, and short-circuit input.

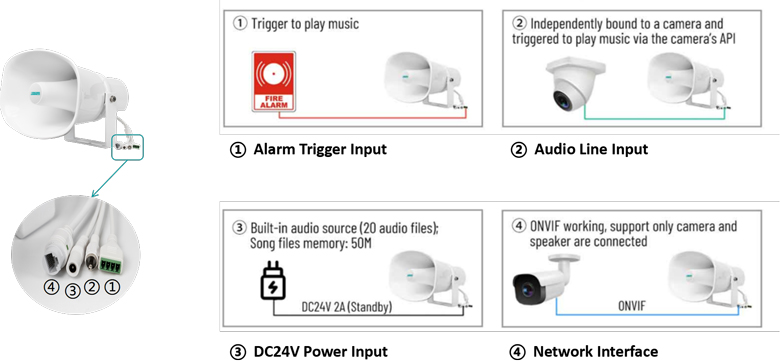

VIII. Multiple Connection Methods_POE170VF

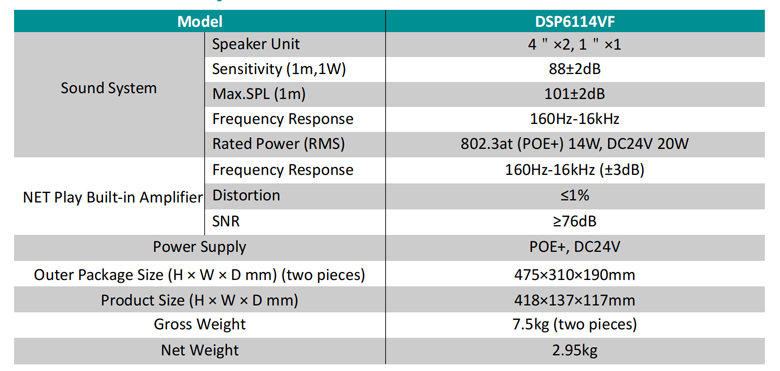

IX. Product Features_DSP6114VF

Features:

● High-sensitivity, wide dynamic range speaker unit with a two-way crossover design.

● Delivers powerful bass and clear, refined treble for excellent audio reproduction.

● Equipped with an integrated digital amplifier that ensures minimal distortion, low noise, and extended dynamic range.

● Suitbale for long-term outdoor use.

● Supports standard SIP connectivity to third-party SIP servers

● Incorporates environmental noise detection technology that automatically adjusts the speaker's volume.

● Includes alarm input trigger interfaces and output indicator light interfaces

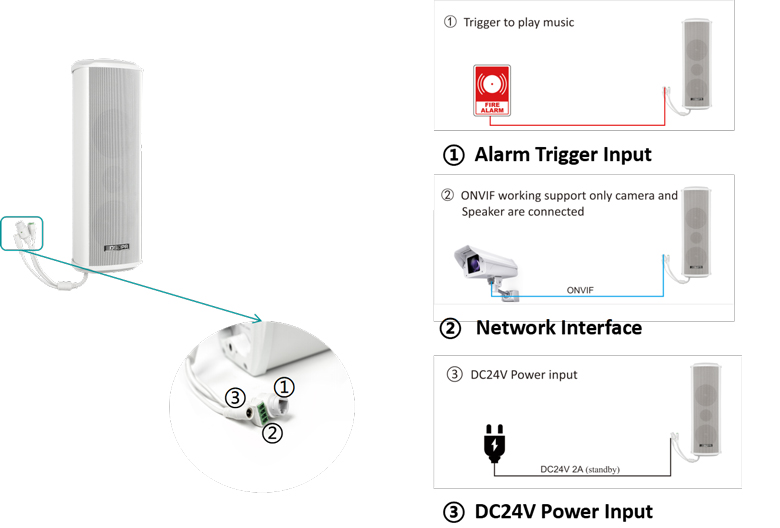

X. Multiple Connection Methods_DSP6114VF

XI. Application Scenarios

The POE170VF horn speaker and DSP6114VF column speaker are primarily used for security protection, emergency broadcasting, paging notifications, and background music. They can be integrated with surveillance and alarm systems to enable proactive prevention and timely response, helping to mitigate potentially harmful behaviors or incidents. These speakers provide fast emergency response capabilities and are suitable for deployment in schools, hospitals, factories, hotels, public transport stations, etc.
