Intelligent Network PA System Solution for Small and Medium-Sized Schools Featuring the PC1063 Indirect Speaker Selector

Intelligent Network PA System Solution for Small and Medium-Sized Schools Featuring the PC1063 Indirect Speaker Selector

I. System Solution

● In modern schools, especially small and medium-sized ones, public address systems play a crucial role as a key medium for daily information dissemination, emergency notifications, and cultural activities. Traditional public address systems often face challenges such as complex operation, limited flexibility, and insufficient  precise control. Therefore, solutions that integrate the PC1063 Indirect Speaker Selector with a network PA system have become an important trend in upgrading school broadcasting infrastructure.

Design Requirements

● Management Efficiency: Precise zone management and convenient remote control.

● Enhanced User Experience: High-quality audio and scenario-based content delivery that improves customer satisfaction.

● Safety Enhancement: Powerful emergency broadcasting capabilities to safeguard mall security.

● Investment Protection: High cost-performance and easy scalability to secure long-term investment.

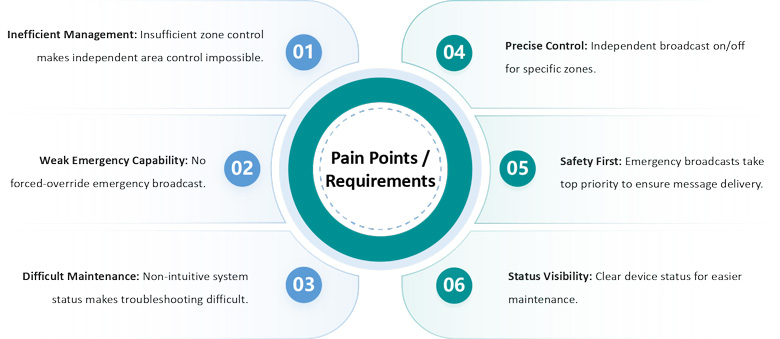

II.  Background & Requirements: Challenges of Traditional PA Systems

III. Application Solutions for Small and Medium-Sized Schools

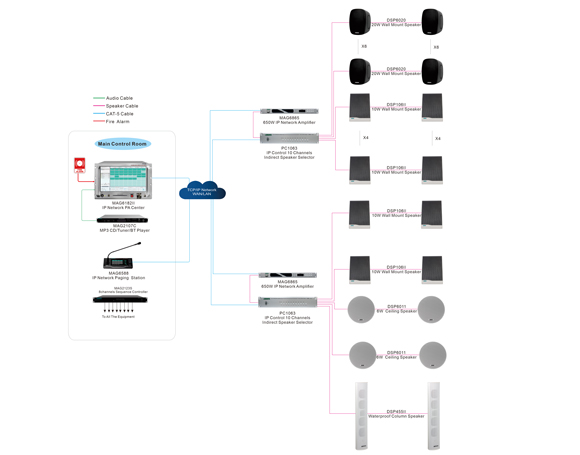

System Configuration:

MAG6182II Network PA System Host: Provides multiple audio sources, scheduled tasks, and a remote management interface.

PC1063 Indirect Speaker Selector: Receives commands from the host and controls the on/off status of 10 zones.

Amplifier & Speakers: Amplify the signal and reproduce sound.

Workflow:

Host Setup: Play class bells in the teaching building zones and background music in the playground zones.

Host Control: Turn on the switches for “Channel 1” and “Channel 8” in the host control interface.

PC1063 Execution: Connect the corresponding circuits for the teaching building and playground.

System Performance: The teaching building rings with class bells, the playground plays music, and all other zones remain quiet.

IV. Solution Configuration Description

Design Principles

Full Coverage Principle: Ensure broadcast audio covers all indoor and outdoor public areas with no dead zones.

Functional Adaptation Principle: Select speakers with appropriate sound pressure, audio quality, and appearance according to the functional requirements of each scenario.

Zoning Management Principle: Speaker placement corresponds with PC1063 zoning to achieve precise control.

Acoustic and Environmental Coordination Principle: Ensure clear speech indoors, uniform coverage outdoors without causing disturbance, and maintain harmony of speaker appearance with the campus environment.

Redundancy and Reliability Principle: Provide power redundancy in critical areas (e.g., playgrounds, teaching buildings) and ensure broadcast reliability in emergencies.

V. System Capabilities

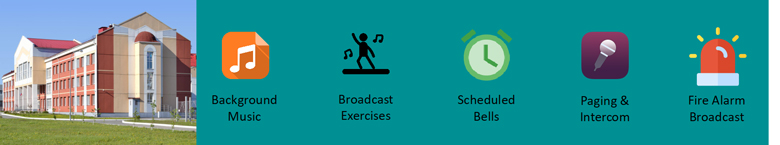

● Supports fully automated 24/7 campus broadcasting, allowing scheduled playback of bells and announcements in classrooms, playgrounds, canteens, dormitories, and other zones according to the school timetable, including class bells, national anthem, exercise breaks, and eye exercises.

● Real-time status monitoring allows viewing the on/off status of each zone on the PC1063.

● The system features a simple and flexible architecture, supporting teaching group management and allowing easy reconfiguration when class assignments change.

● Centralized network control greatly reduces staff workload and improves management efficiency and response speed.

VI. What is Network PA System MAG6000?

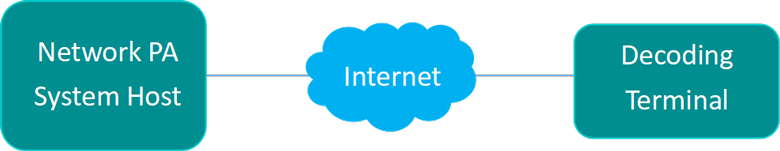

DSPPA network public address system MAG6000 is a set of two-way audio sound reinforcement system based on pure digital technology transmission. It combines the independent DSPPA protocol, standard TCP/IP protocol, H.264 encoding to transmit audio and video signals in the form of data packets on the LAN and WAN, and has functions such as sound repair and automatic flow adjustment, which completely solves the problems of poor sound quality, limited transmission distance, lack of interaction, and complicated maintenance and management of the traditional broadcasting system.

The system can use the existing local area network architecture to realize multi-network integration of computer network, digital video surveillance, public address and other networks, with the transmission distance more than 10 kilometers, featuring fast construction and convenient expansion. At the same time, it also has powerful functions such as audio and video intercom, media information release, and Al alarm.

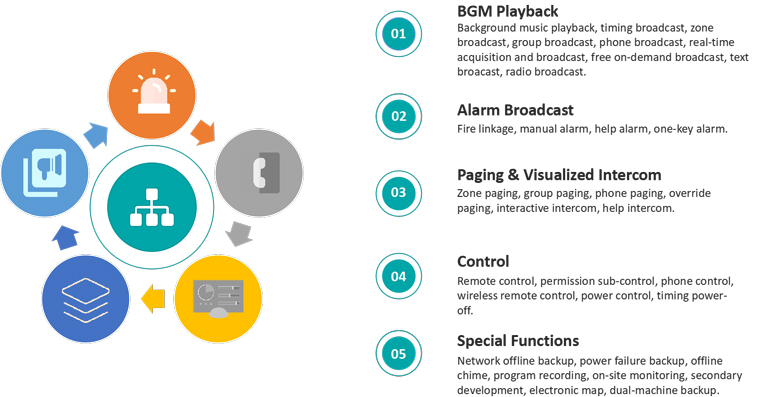

VII. MAG6000 System Function

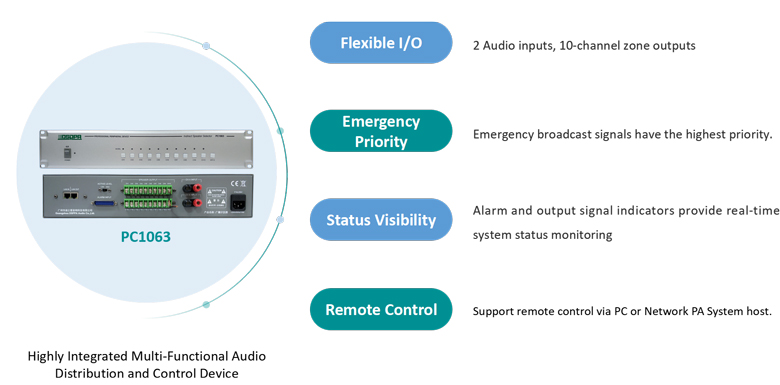

VIII. System Core: PC1063 Indirect Speaker Selector

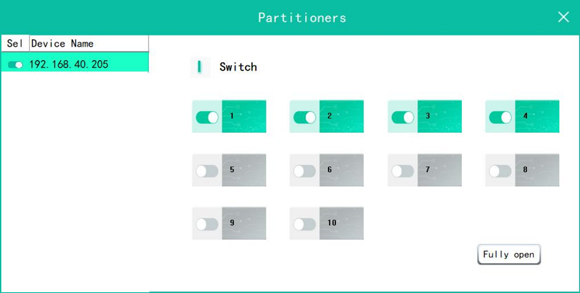

Remote Control of the PC1063 Indirect Speaker Selector

● When controlling the PC1063 indirect speaker selector, select the device on the host or software and click the “Enter Control” button.

● In the above figure, the 10 zone outputs correspond to the 10 zones on the device rear panel. Clicking the “All On/All Off” button will turn all 10 zone switches on or off with one action. The bottom left corner displays the bound amplifiers or rack-mounted terminals. In the host’s System Settings → Device Management interface, select an amplifier or rack-mounted terminal to edit and bind it; unbound devices will not be displayed.

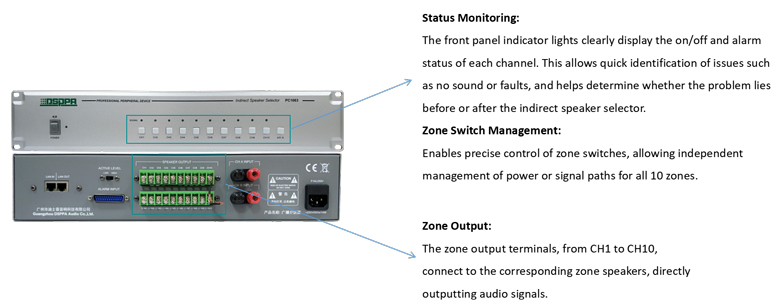

IX. PC1063 – Zone Management / Status Monitoring

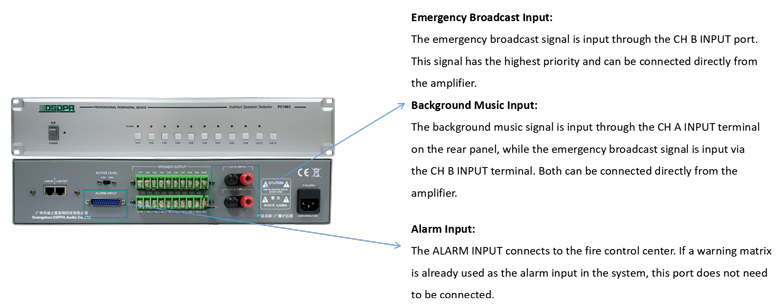

X. PC1063 – Emergency Broadcast Signals

XI. DSP6020 / DSP6035 / DSP6050 / DSP6060 Wall Mount Speaker

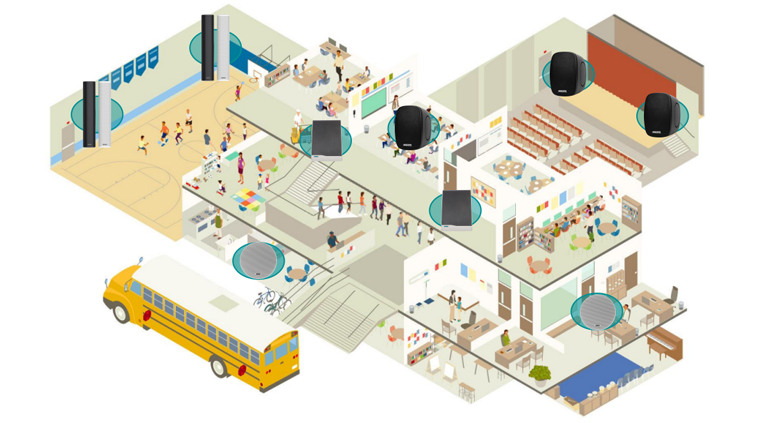

XII. Application Scenarios

The PC1063 Indirect Speaker Selector, combined with the Network Public Address System, delivers a powerful and practical audio solution. With its flexible and precise zone management, reliable emergency override functionality, convenient remote network control, and simplified installation and maintenance, it addresses core requirements of efficient management, safety and reliability, and flexible coverage across various application scenarios.
