IP Ultrasonic Directional Flat-Panel Speaker System - Smart Audio Solution for Museums DSP395T + DSP395U

DSP395T + DSP395U IP Ultrasonic Directional Flat-Panel Speaker System -Smart Audio Solution for Museums

I. Solution Overview

Museums, as important venues for cultural and historical dissemination, rely heavily on the presentation of exhibitions to shape visitor experiences. Traditional sound delivery methods, such as public address systems and conventional speakers, often face challenges with sound interference and inconsistent acoustic quality across the space. With advances in technology, ultrasonic directional speakers—a novel audio delivery solution—are increasingly being adopted in museums and other public venues. Their high directivity and interference-free characteristics enable a more immersive and personalized visitor experience.

Project Requirements

● Minimized sound interference: Directional sound waves reduce audio crosstalk within exhibition halls, ensuring that sound information in different areas does not interfere with each other.

● Personalised guided experience: Visitors can selectively listen to detailed explanations of specific exhibits according to their interests.

● Enhanced vistor immersion: Precise sound localization allows visitors to feel a stronger sense of presence during their tour.

● Optimized space utilization: Directional sound propagation enables efficient use of museum space without the need for complex audio installations.

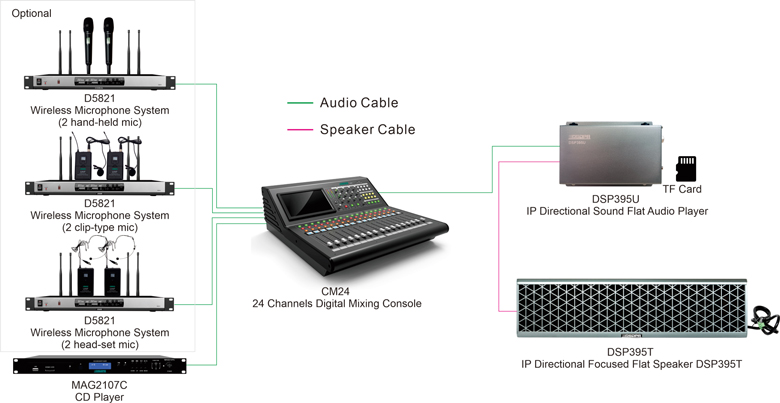

II. Directional Sound System Configuration Solution for Small Museums

Solution Configuration:

● Individual Exhibit Zones

Install a DSP395 system in front of each exhibit, directed toward the visitor standing area.

The system plays pre-recorded audio via the built-in TF card; visitors hear clear explanations when approaching the exhibit and the audio automatically mutes when they leave.

● Temporary Exhibitions or Interactive Areas

Connect temporary audio sources (e.g., guide microphones or interactive devices) via the AUX input.

Allows rapid deployment and flexible adjustment of sound coverage.

● Corridors or Transition Areas

Install on walls or ceilings to provide directional background music or guided prompts.

Prevents sound from spreading into exhibition zones, maintaining a quiet environment.

Note: This solution is provided for reference only. For specific requirements, please feel free to contact us.

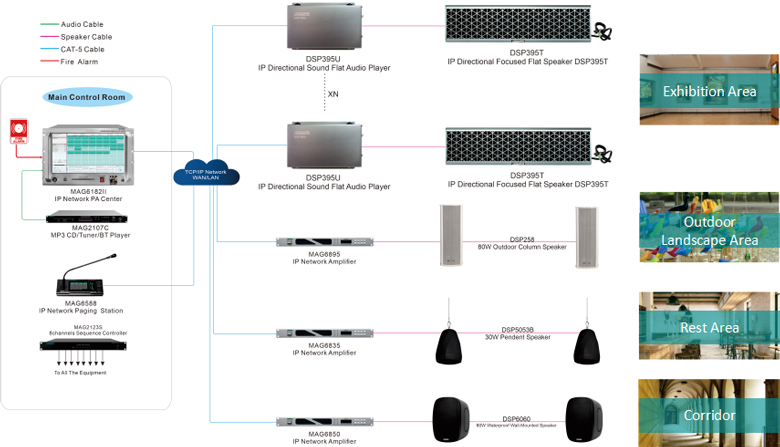

III. Integrated Network Solution: MAG6000+DSP395 System Integration

System Advantages:

When integrated with the MAG6000 network public address system, this solution enables centralized management of the museum, background music, and emergency announcements. At the same time, ultrasonic directional speakers provide precise, non-interfering explanations at individual exhibits, perfectly resolving the conflict between “area-wide” broadcasting and “point-specific” explanation within the museum.

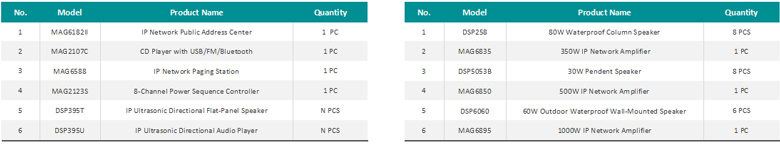

Solution Configuration:

This solution is designed to build an intelligent, networked, and zoned public address and directional sound system for museums. Using TCP/IP as the core transmission network, the central control room is equipped with a digital IP network broadcasting host for unified management of the entire museum. In public areas such as lobbies, corridors, and rest zones, conventional background music speakers are installed to create ambiance and deliver museum-wide announcements. At key exhibit points such as core exhibits, display cases, scale models, and significant artworks, the DSP395 IP Ultrasonic Directional Flat-Panel Speaker System (DSP395U audio player + DSP395T speaker) is deployed. This setup provides highly directional audio, delivering clear and quiet explanations to visitors standing nearby while eliminating sound overlap and interference.

Note: This solution is provided for reference only. For specific requirements, please feel free to contact us.

IV. IP Ultrasonic Directional Flat-Panel Speaker System

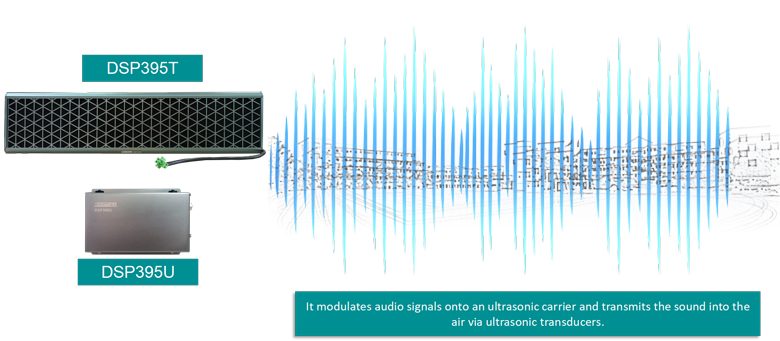

The IP Ultrasonic Directional Flat-Panel Speaker System is a speaker solution that leverages the directional propagation characteristics of ultrasound and incorporates advanced digital signal processing technology.

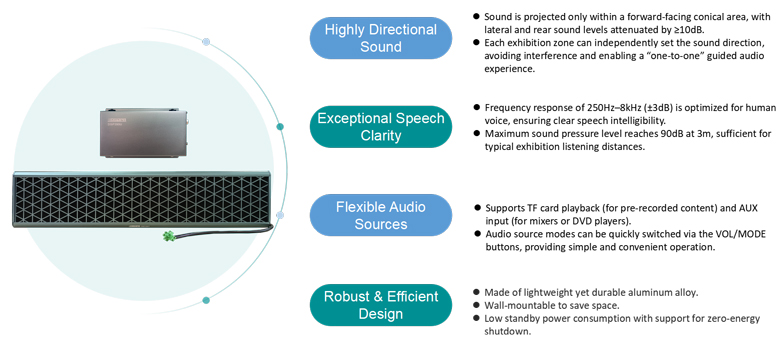

V. System Features

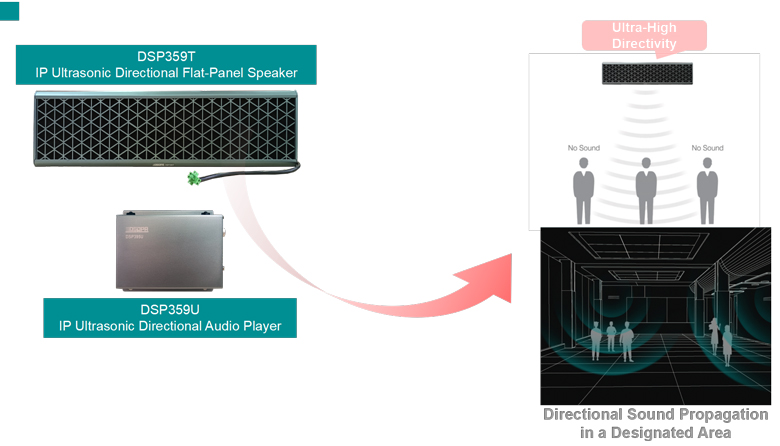

VI. Ultra-High Directivity: Precise Sound Field Control

Ultra-High Directivity with Forward-Facing Sound Projection: In outdoor environments, the system utilizes directional properties of ultrasound to deliver sound precisely within a designated area, without generating noise outside that zone, effectively addressing noise disturbance issues.

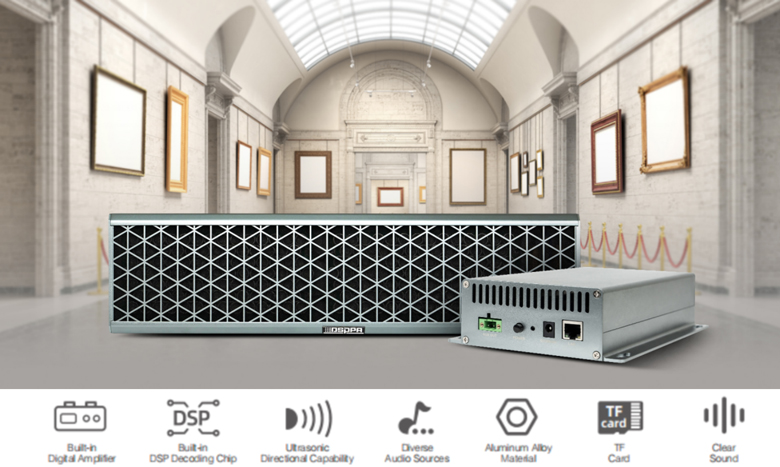

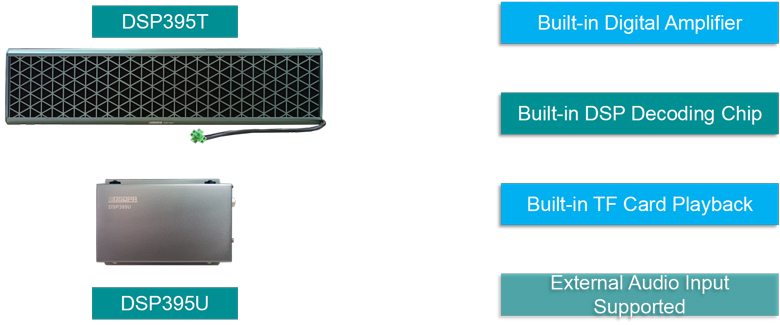

VII. Product Description - DSP395U IP Ultrasonic Directional Audio Player

Built-in digital amplifier; built-in DSP decoding chip for audio processing; built-in TF card playback.

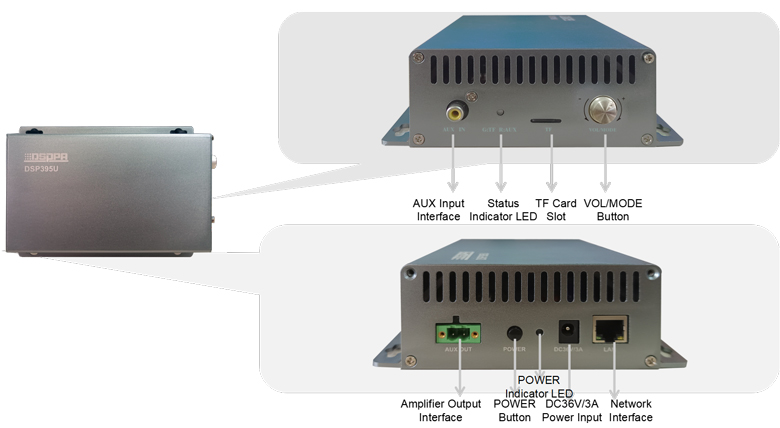

DSP395U Interfaces and Functional Details

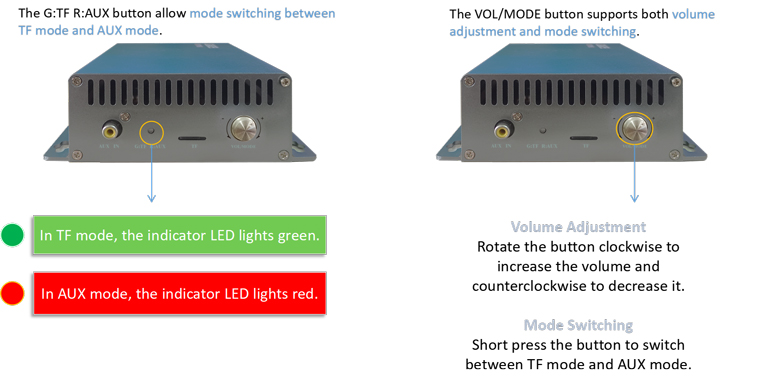

DSP395U Mode Switching and Volume Control

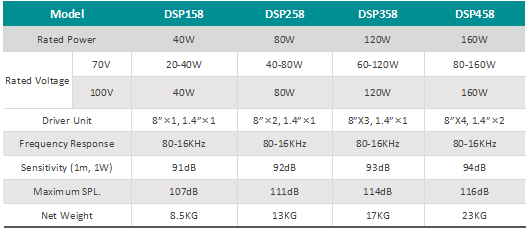

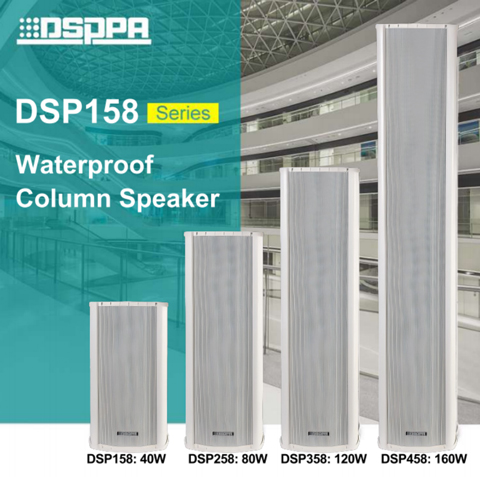

VIII. Product Description - DSP158 Series Waterproof Column Speaker

● High-Power Coverage for Diverse Scenarios

Power output ranges from 40W to 160W, meeting sound reinforcement needs from small plazas to large outdoor areas.

Maximum sound pressure level reaches 107–116dB, ensuring clear audio even in noisy environments.

● Durable and Outdoor-Ready Design

Waterproof certified with corrosion-resistant aluminum grille, suitable for all harsh weather conditions.

● Long-Distance Transmission and Multi-Speaker Support

Built-in 70V/100V constant-voltage transformer allows high-voltage, low-current transmission for long-distance wiring and parallel connection of multiple speakers, providing flexible system expansion.

● Clear Sound Quality with Wide Frequency Response

Utilizes a two-way crossover design with a frequency range covering vocal and music fundamentals, delivering exceptional speech clarity.

High sensitivity (91–94 dB) ensures excellent energy conversion efficiency.

IX. Application Scenarios

With exceptional directivity and precise sound field control, the DSP395T + DSP395U IP Ultrasonic Directional Flat-Panel Speaker System is well-suited for applications that require targeted sound delivery with minimal interference.
