MAG6000 Network PA System Solution for Parks

MAG6000 Network PA System Solution for Parks

I. System Solution Overview

With the accelerating pace of urbanization, parks are important venues for public leisure and recreation, facing increasingly diverse visitor needs and greater demands for management efficiency. Traditional broadcasting systems, limited by wireless coverage and single-function design, can no longer meet the requirements of modern parks. A Network Public Address System is proposed to address these challenges, leveraging modern information technologies to achieve intelligent and efficient park broadcasting management.

Project Requirements

● Wide Coverage: The wireless network public address system can cover all areas of the park, ensuring complete and uninterrupted broadcast delivery.

● Intelligent Management: Through a central management platform, administrators can easily manage, schedule, and remotely control broadcast content, greatly improving operational efficiency.

● Versatile Functions: The system supports multiple functions, including background music playback, event announcements, and safety alerts, meeting the diverse needs of the park.

● High Performance: Advanced audio compression and network transmission technologies ensure high-quality and stable broadcast content.

● High Scalability: New broadcast zones or functional modules can be added at any time to accommodate the park’s future development needs.

II. MAG6000 Network PA System Configuration for Parks

The MAG6000 system host is installed in the fire control room or equipment room, enabling the timely release of information such as event announcements, weather alerts, and emergency broadcasts to different areas of the park. In addition, various background music zones can be set up throughout the park, allowing real-time background music playback via the network public address system to enhance the visitor experience.

Remote Paging and Dispatch:

● MAG6284 / MAG6588 Remote Paging Microphones: Located in the control room and the visitor service center, these devices support emergency broadcasting, command dispatch, and real-time voice announcements. The MAG6284 additionally supports video terminal management, enabling video intercom, video surveillance, and multi-screen display. It can also display a video wall via an external display.

● MAG6275 Outdoor Visual Network LED Screen Terminal: Enables one-click emergency alerts, instant communication with management, and integration with fire protection and security systems for rapid incident response.

● MAG6287 IP Smart Light Pole: Integrates LED smart lighting, intelligent warning lights, smart security, visual intercom, information release, environmental monitoring, and infrared-sensing intelligent voice broadcasting.

Fire Alarm Integration and Monitoring:

● 32-Channel Fire Interface Unit: Enables forced switching to emergency broadcast and supports zoned alarms.

● MAG6463 Monitoring Speaker: Provides real-time monitoring of playback status and volume across different zones.

● Power Sequence Controller: Protects equipment by ensuring orderly power on/off sequences.

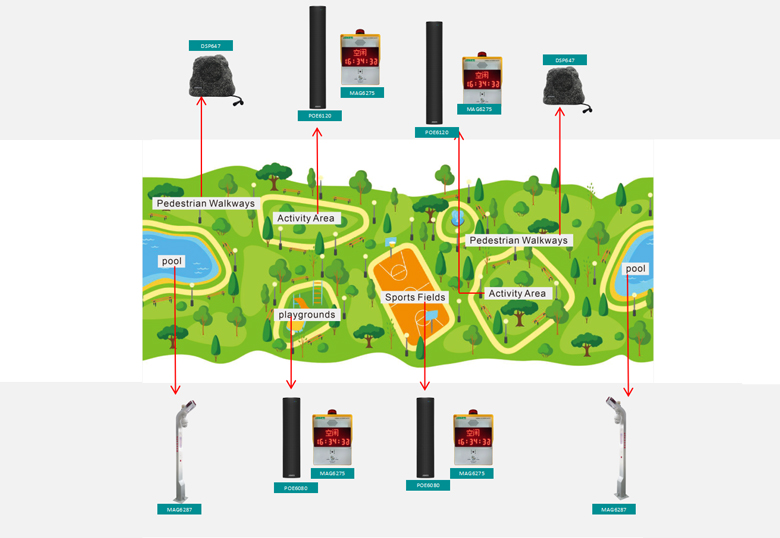

Zoned Speaker Deployment:

● Public Event Areas: POE6180/6120 Network Column Speakers deliver high-power directional sound, supporting remote management and emergency fire override.

● Outdoor Parking Lots: DSP304HI Waterproof Horn Speakers provide strong sound penetration to ensure clear message delivery even in noisy environments.

● Ecological Zones (Greenbelts): DSP647 Low-Profile Garden Speakers feature a concealed design to prevent tripping hazards and produce soft audio to minimize environmental disturbance.

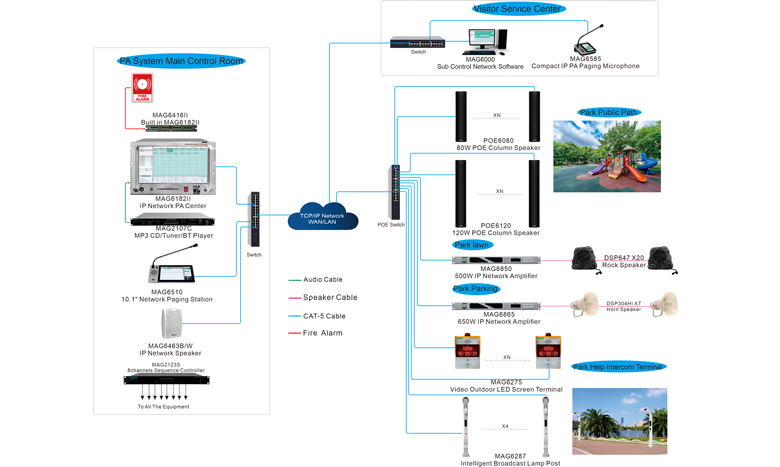

III. Product List + System Connection Diagram

Note: This solution is provided for reference purposes only. For detailed requirements, please feel free to contact us

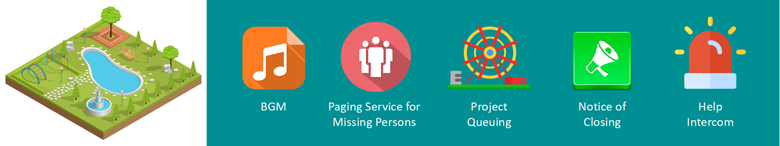

IV. System Functions

● Support 7×24 hours of fully automatic timing background music and personalized programs for park scenic areas.

● Can broadcast safety tips, cautions and other notices for visitors to the visitor distribution center, ticket gate and scenic spots in the park scenic areas.

● With emergency help intercom function for visitors to help them quickly get in touch with the visitor center and deal with emergency.

● Support the management staff in the park scenic area to release real-time broadcasting such as paging for missing persons, and lost and found.

● Features fire linkage alarm and one-key alarm functions to quickly respond to sudden security emergencies in the park scenic areas.

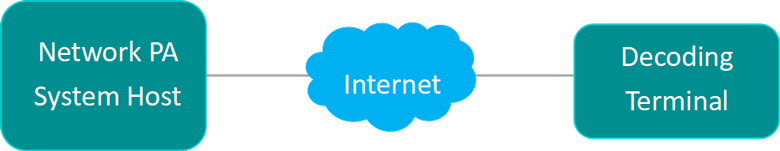

What is Network PA System MAG6000?

DSPPA network public address system MAG6000 is a set of two-way audio sound reinforcement system based on pure digital technology transmission. It combines the independent DSPPA protocol, standard TCP/IP protocol, H.264 encoding to transmit audio and video signals in the form of data packets on the LAN and WAN, and has functions such as sound repair and automatic flow adjustment, which completely solves the problems of poor sound quality, limited transmission distance, lack of interaction, and complicated maintenance and management of the traditional broadcasting system.

The system can use the existing local area network architecture to realize multi-network integration of computer network, digital video surveillance, public address and other networks, with the transmission distance more than 10 kilometers, featuring fast construction and convenient expansion. At the same time, it also has powerful functions such as audio and video intercom, media information release, and Al alarm.

VI. MAG6000 System Functions

BGM Playback

Background music playback, timing broadcast, zone broadcast, group broadcast, phone broadcast, real-time acquisition and broadcast, free on-demand broadcast, text broacast, radio broadcast.

Alarm Broadcast

Fire linkage, manual alarm, help alarm, one-key alarm.

Paging & Visualized Intercom

Zone paging, group paging, phone paging, override paging, interactive intercom, help intercom.

Control

Remote control, permission sub-control, phone control, wireless remote control, power control, timing power-off.

Special Functions

Network offline backup, power failure backup, offline chime, program recording, on-site monitoring, secondary development, electronic map, dual-machine backup.

VII. MAG6000 System Advantages

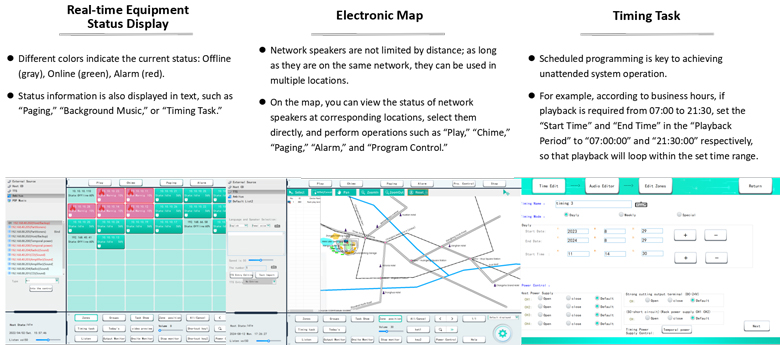

VIII. Highlights of the Centralized Control Software

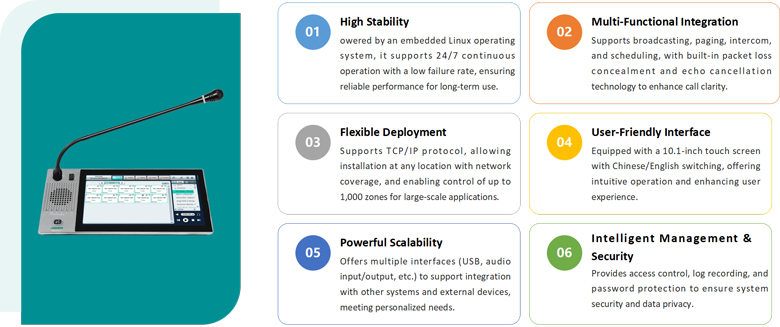

IX. Visual Network Paging Controller - MAG6510

X. Compact IP PA Paging Microphone - MAG6585

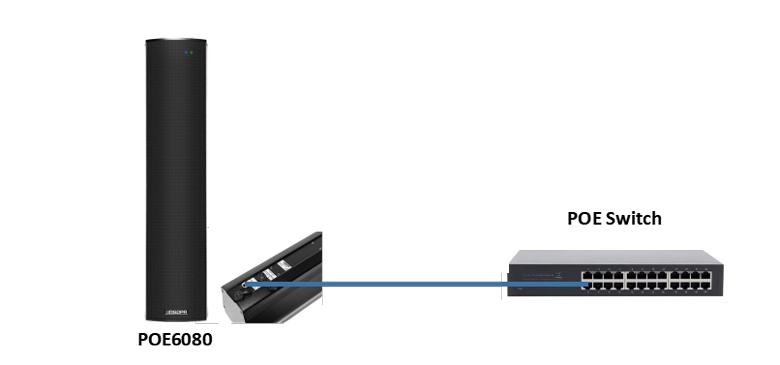

XI. Network Column speaker - POE6080 / POE6120 / POE6180

Features

● Efficient Power Supply & Compatibility: Supports PoE 802.3bt standard power supply with backward compatibility for 802.3at, offering a dual power backup solution.

● Intelligent Audio Processing: Built-in DSP digital processor with 10-band EQ configuration and full-parameter web interface for remote management.

● Outstanding Sound Quality & Power: Available in 80W, 120W, and 180W options, delivering high sound pressure levels and a wide frequency response.

● Durable Outdoor Design: Constructed with an aluminum alloy enclosure and rust-proof aluminum grille, with extreme temperature adaptability and IP65-rated waterproof protection.

● Easy Installation & Management: Equipped with an adjustable-angle bracket for flexible mounting and supports one-click factory reset via web interface.

● Smart Integration & Expansion: Compatible with Hikvision/Dahua IPC cameras for AI diagnostics and intelligent system linkage.

● Safety-Oriented Design: Features fault detection, overheat protection, and short-circuit protection to ensure safe and reliable operation.

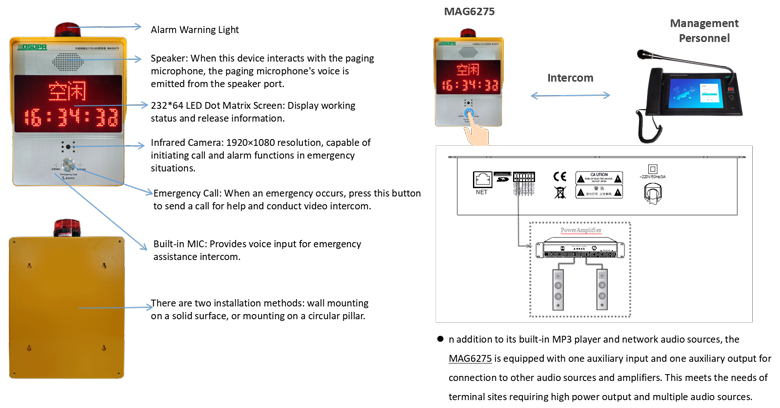

XII.Video Outdoor LED Screen Terminal - MAG6275

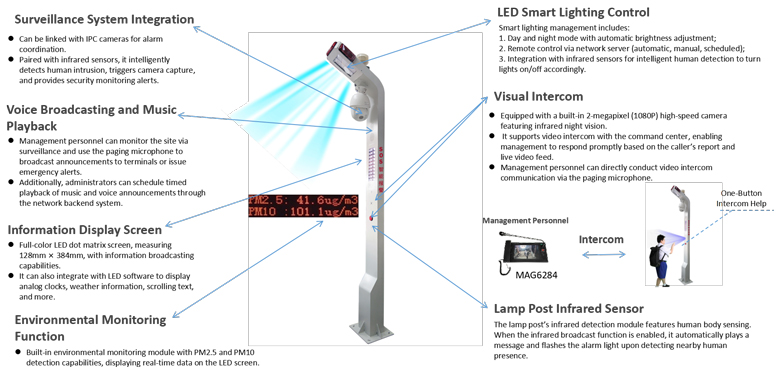

XIII. Intelligent Broadcast Lamp Post - MAG6287

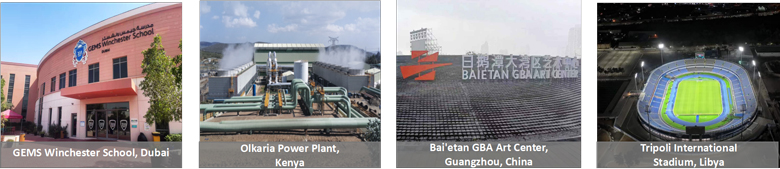

XIV. Application Scenarios

The MAG6000 system leverages existing network infrastructure to deliver a more efficient, flexible, scalable, and cost-effective broadcasting solution. It not only meets traditional broadcasting needs but also integrates multiple functions and technologies, enhancing the flexibility, accuracy, and security of information delivery. This system is ideal for use in schools, hospitals, tourist attractions, hotels, public transit stations, and other venues.
