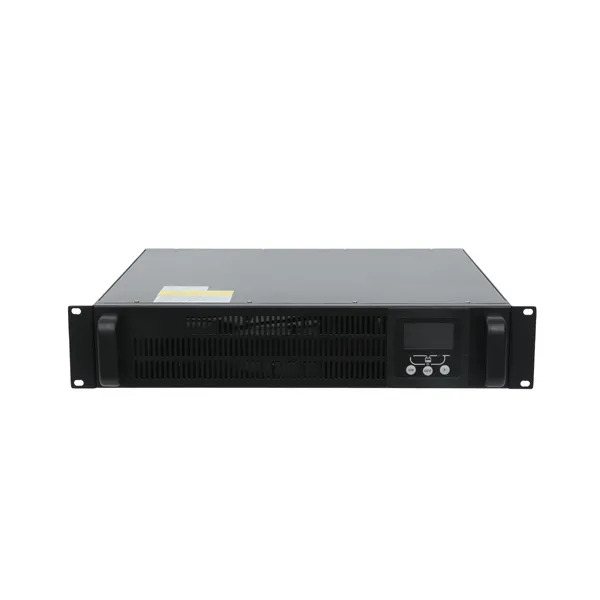

MP9822EII is an uninterruptible power supply device with dual conversion, single-phase input and single-phase output. The product is compact in size while with high efficiency and high reliability, which is user-friendly. It is an ideal choice for users in the field of finance, telecommunication, government, transportation, manufacturing and education. This device is used together with MP9822AII and battery box MP9822BII, among which MP9822AII is optional; MP9822BII is the battery box. Users can equip the devices according to the backup time requirements. And the quantity of the device is at least one and no more than three.
Model | MP9822EII | |
Nominal capacity | 3kVA/2700W | |
Input | Input mode | One-way grounding |
Voltage range | (180±5)VAC～(250±5)VAC | |
The power factor | ≥0.99 | |
The bypass voltage | (180±5)VAC～(250±5)VAC | |
Output | Output way | One-way grounding |
The rated voltage | AC220V ① | |
The power factor | 0.9 | |
Voltage accuracy | ±2% | |
Frequency | 1. Same as input frequency (46Hz ~ 54Hz); 2. 50Hz(AC power frequency >54Hz or mains power frequency<46Hz); | |
Overload capacity | 100%±5%<load ≤105%±5% overload alarm； 105%±5%< load | |
Conversion time | AC power←→battery 0 ms AC power←→bybass < 4 ms | |
Crest factor | 3:1 | |
EMC | Electro-Static discharge（ESD） | IEC61000-4-2 Level4 |
Radiated electromagnetic field immunity（RS） | IEC61000-4-3 Level3 | |
Electrical fast transit（EFT） | IEC61000-4-4 Level4 | |
Surge（Surge） | IEC61000-4-5 Level4 | |
MP9822BII battery | Battery input voltage | 96VDC |
Built-in battery number | N.A. | |
Built-in battery type | 12V/7AH Sealed maintenance-free lead-acid batteries | |
Backup time | Full load ≥5 minutes | |
Charging current | 5.5A | |
Working environment | Working temperature | 0℃～40℃ |
Working humidity | 20%～90%（no condensation） | |
Working altitude | Less than 1,000 meters. Over 1000 m, 1% reduction for every 100 m increase | |
Storage temperature | -15℃～45℃ | |
Packing size, mm | 568x550x223 | |
Machine dimensions, mm | 476x482.6x88 | |
Gross weight, kg | 12 | |
Net weight, kg | 10.5 | |
