Public Address (PA) Systems in 2026: The Complete Professional Guide for System Integrators & ELV Contractors – Design, Components & Installation Best Practices

1. Introduction

In 2026, Public Address (PA) systems are no longer simple announcement tools — they are intelligent, networked audio ecosystems that deliver crystal-clear voice, background music, emergency evacuation, and multi-zone control across schools, hospitals, malls, airports, mosques, and smart buildings.

System integrators and ELV contractors who master the latest IP-based, PoE-powered, and DSP-integrated PA solutions win more bids and deliver future-proof projects that clients actually want.

DSPPA has been at the forefront of this evolution for over 20 years. This guide gives you the exact framework used by top integrators worldwide in 2026.

2. Core Components of a Modern Public Address System in 2026

A professional PA system in 2026 consists of five tightly integrated components. Here is the exact breakdown every ELV contractor must know:

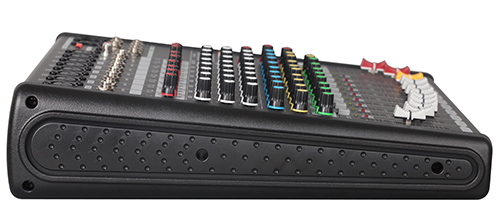

2.1 Sound Sources (Audio Input) Digital mixers, wireless microphones, Bluetooth streamers, and media players form the foundation. The DSPPA DMX08 digital mixer is a top performer — compact, 8-channel, with built-in DSP effects and seamless integration into IP networks.

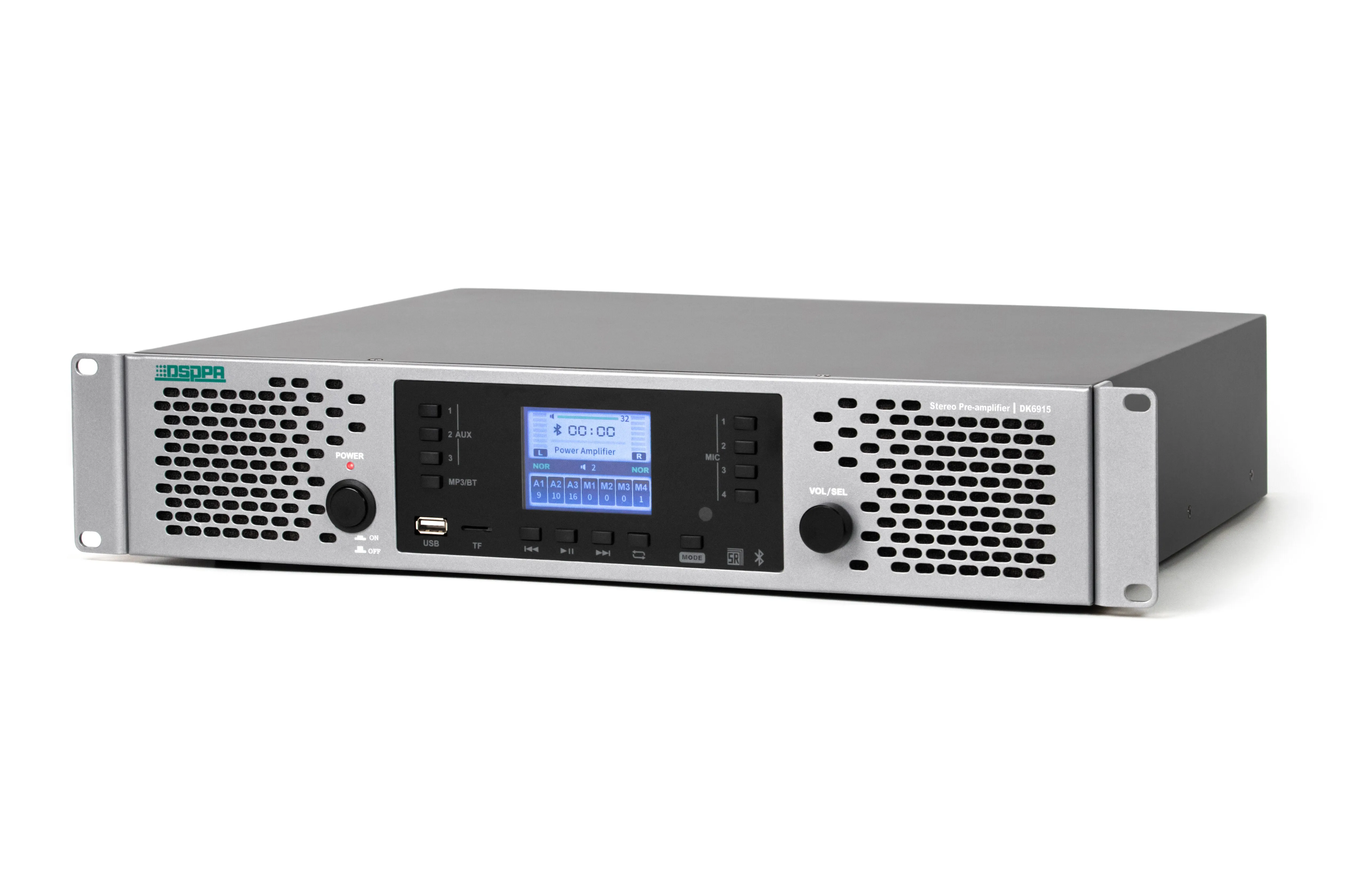

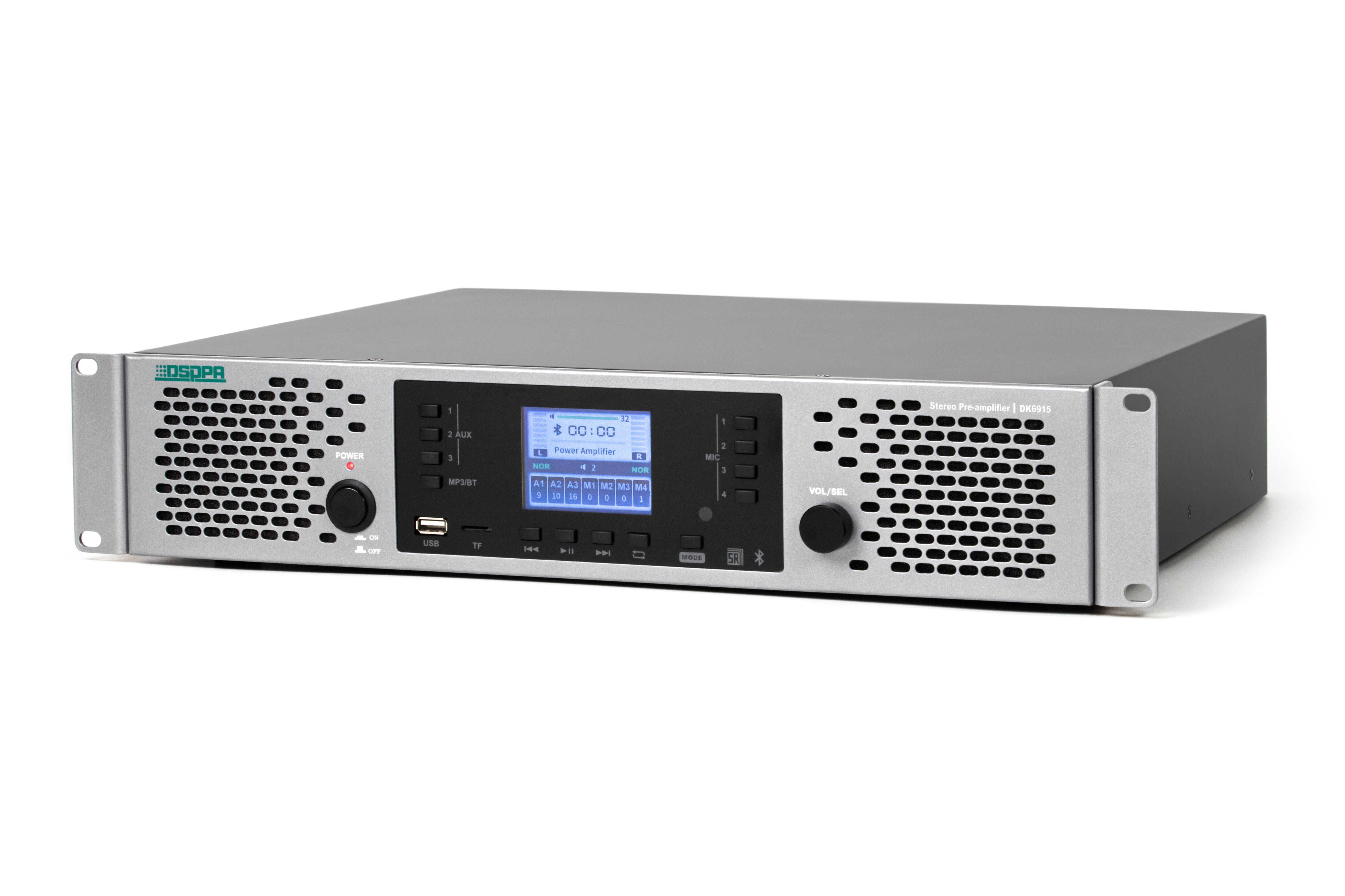

2.2 Amplifiers (Power & Processing) Digital Class-D mixer amplifiers dominate because they combine pre-amp, power amp, DSP, and zone control in one 1U–2U chassis. Popular 2026 models: MP120UB, MP250UB, DMA series, and high-power DA series. They support 70V/100V constant-voltage lines and PoE+ for IP speakers.

2.3 Speakers (Output Devices)

· Ceiling speakers (frameless, fire-rated EN54, coaxial)

· Horn speakers & column speakers (outdoor IP66)

· Wall-mount, invisible, and garden speakers

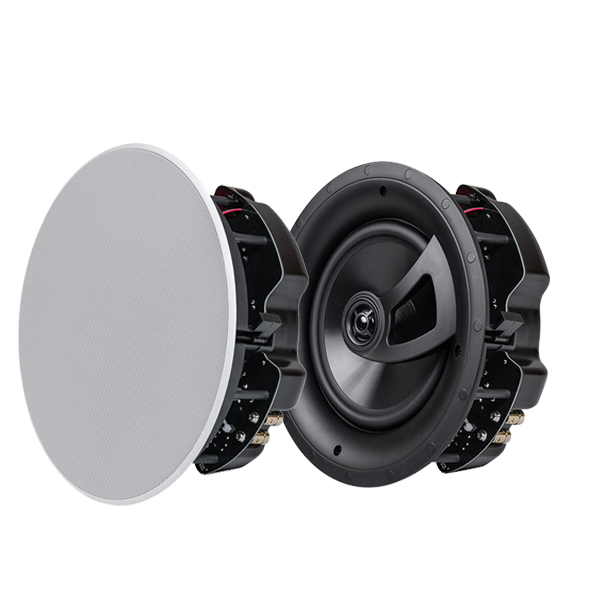

DSPPA’s DSP8040 series ceiling speakers deliver excellent STI intelligibility while staying virtually invisible.

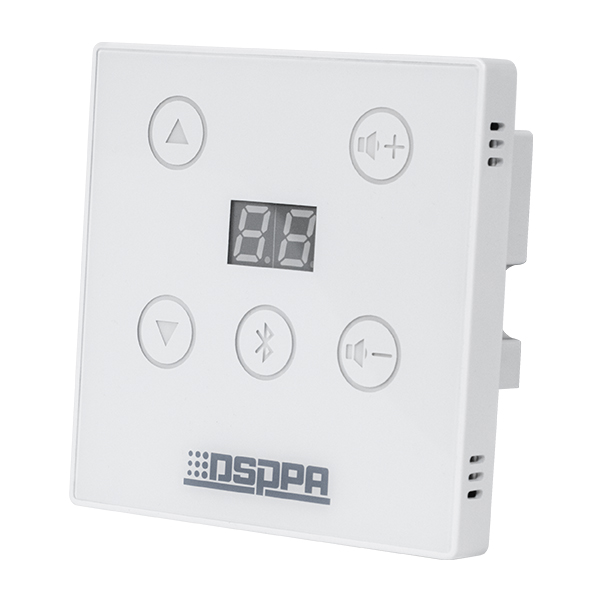

2.4 Control & Processing Central matrix processors, paging stations, and wall-mounted control panels allow remote zone selection, volume control, scheduling, and emergency override.

2.5 Transmission & Wiring 2026 standard = IP/PoE network (Cat6/Cat6a) + Dante/AES67 optional. Traditional 70V/100V lines are still used for legacy zones, but IP PA systems reduce cabling costs by up to 60 % and enable remote monitoring.

3. PA System Design Principles for 2026 Projects

Follow this proven 5-step workflow:

1. Needs Assessment – Client brief, audience size, background noise, required STI ≥ 0.6 (public spaces) or ≥ 0.75 (conference/lecture halls).

2. Site Survey – Measure acoustics, ceiling height, obstructions, power availability.

3. Zoning Planning – Separate paging, BGM, emergency, and VIP zones (critical for hospitals, airports, schools).

4. Power & Coverage Calculation – Use 70V/100V line: Speaker tap wattage × quantity + 20 % headroom. For IP PoE speakers, calculate PoE budget per switch.

5. Voice Intelligibility (STI) Target – Aim for STI 0.65+ in noisy environments. DSPPA MAG and DSP series speakers are engineered for this.

4. Installation Best Practices & Common Mistakes to Avoid

Best Practices (2026 edition)

· Use shielded Cat6 for all IP devices and proper PoE++ switches.

· Label every cable and document the network topology.

· Pre-test STI with NTi Audio or similar tools before handover.

· Integrate with fire alarm (EN54) and BMS for true life-safety compliance.

· Enable remote monitoring via DSPPA cloud platform.

Common Expensive Mistakes

· Undersized amplifiers (causes clipping and poor STI).

· Wrong speaker placement (dead spots in column/horn arrays).

· Ignoring PoE budget on switches.

· Mixing legacy 70V with new IP zones without proper converters.

5. 2026 Trends & Future-Proofing Your PA Projects

· Full IP & PoE Ecosystem – PoE speakers and amplifiers eliminate separate power cabling (huge demand in “poe speaker” and “ip pa system” searches).

· AI-Enhanced Audio – Auto voice tracking, noise suppression, and intelligent mixing.

· Dante/AES67 Native – Zero-latency audio over IP for large venues.

· EN54-24 Fire Voice Evacuation – Mandatory for public buildings.

· Smart Integration – Link with Wi-Fi, 5G, smart poles, and IoT for unified campus/hospital control.

· Sustainability – Low-power Class-D amps and recyclable materials.

Design every project with “IP-first + 70V fallback” so it stays relevant until 2035+.

6. Real-World Application Examples & Case Studies

School PA System Modern campuses need bell scheduling, classroom audio, emergency lockdown announcements, and outdoor coverage. DSPPA MAG6000 IP network PA system delivers all-in-one solution with PoE speakers and wireless mics. → View School Solution

Hospital PA System Requires quiet zones, nurse-call integration, and EN54-compliant evacuation. DSPPA four-channel network digital amplifiers provide zoned, low-noise operation. → View Hospital Solution

Shopping Mall / Retail PA System Converged media + background music + emergency broadcast. DSPPA MAG6182L series handles multiple zones and advertising playback perfectly. → View Mall Solution

Airport / Transportation Hub Large-scale, high-intelligibility, multi-language paging. DSPPA MAG6000 IP PA solution is proven in airports worldwide. → View Airport Solution

7. FAQ

What is a Public Address system in 2026?

A networked, intelligent audio platform combining IP PoE speakers, digital mixer amplifiers, DSP processing, and cloud control for paging, BGM, and emergency evacuation.

How to calculate power for 70V PA system?

Total speaker wattage × 1.2 (20 % headroom) = minimum amplifier rating. Always choose the next higher standard model (e.g., 120 W, 250 W, 500 W).

Difference between IP PA and traditional PA?

Traditional = analog 70V/100V lines. IP PA = audio over Ethernet (PoE), remote monitoring, easier expansion, lower cabling cost, Dante-ready.

Which ceiling speakers are best for office PA installations? DSPPA frameless coaxial ceiling speakers (DSP8040 / DSP8050 series) — high STI, fire-rated options, easy tile installation, and excellent price-performance ratio.

Ready to spec your next 2026 PA project? Browse DSPPA’s full 2026 catalogue, request technical drawings, or contact our ELV engineering team directly at https://www.dsppatech.com/.

This guide is continuously updated based on real Google Search Console data and installer feedback. Bookmark it — your next winning bid starts here.
