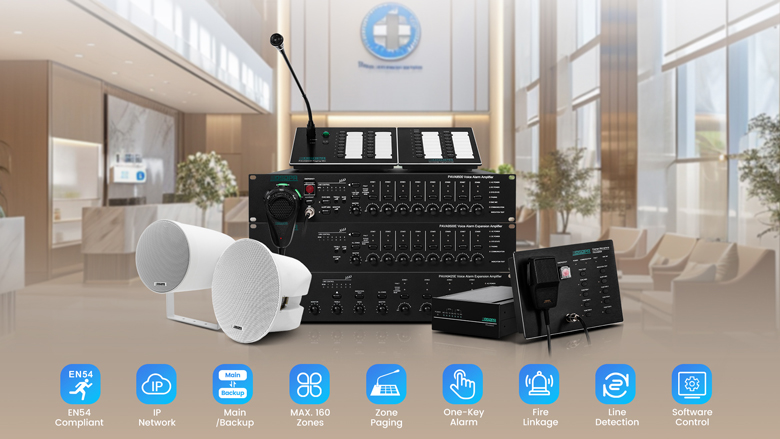

PAVA9500 Voice Evacuation System Solution for Hospitals

I. System Overview

Hospitals are critical public facilities characterized by high occupancy and complex functional zoning, where fire incidents pose significant evacuation challenges and risks. To ensure the safety of patients, medical staff, and property, a reliable and fast-response fire alarm system is essential. This solution adopts an EN54-compliant Fire Detection and Alarm System, enabling early fire detection, timely alarm activation, and coordinated system control.

Project Requirements

●In emergency situations such as fires or earthquakes, the system shall guide occupants to evacuate quickly and safely, serving as a critical safeguard for life safety.

●The system shall support public address, paging, and background music functions, enabling efficient internal communication and a comfortable acoustic environment.

●The system shall support wireless media playback via laptops or other portable audio devices, ensuring flexible operation.

●The system shall comply with EN54-16/24 standards for fire alarm systems, and be designed with high reliability and durability to ensure long-term stable operation.

II. Key Challenges in Hospital Public Address System

High Fire Risk

High occupant density and the presence of patients with limited mobility place significant pressure on emergency evacuation, requiring precise and reliable coverage.

Complex Zoning

Clinical areas, inpatient wards, and administrative offices coexist, making unified broadcasting difficult to coordinate and prone to mutual interference.

Diverse Acoustic Environments

The requirements for broadcast volume and clarity vary greatly across environments, from quiet wards to busy emergency departments.

Balancing Routine and Emergency Use

Daily broadcasting must minimize disturbance to patients, while emergency situations require instant switching and rapid response.

III. PAVA9500 Solution for Hospitals

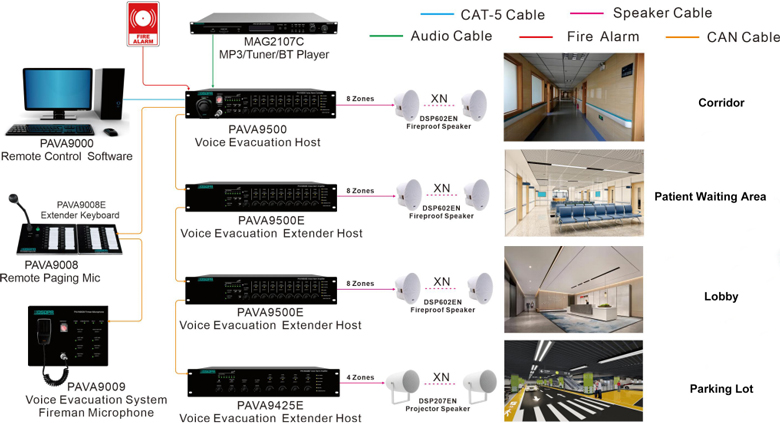

Hand-in-Hand Wired System Configuration

●Small hospital including parking area; total building area over 6,000 m².

●Each zone is equipped with a CD player, which can connect to USB/FM/Bluetooth playback.

●6W Fire Ceiling Speakers: distance between two speakers is about 8 meters.

●12W Fire Wall-Mount Speakers: distance between two speakers is about 15 meters.

Note: This solution is provided for reference only. For specific requirements, please feel free to contact us.

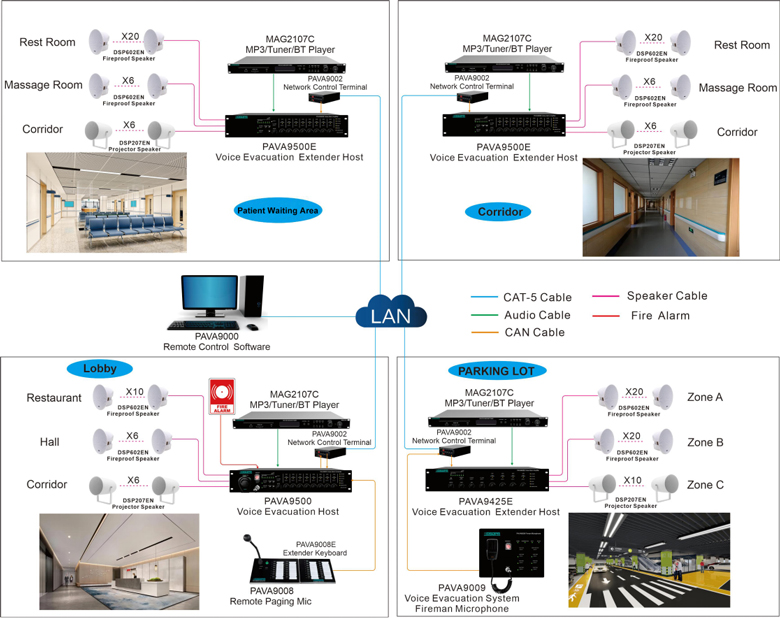

IV. PAVA9500 Solution for Hospitals

Network PA System Configuration

●Small hospital including parking lot; building area over 6,000 m².

●6W fire-rated ceiling speakers; distance between two speakers is approximately 8 meters.

●12W fire-rated wall-mounted speakers; distance between two speakers is approximately 15 meters.

●Each zone is equipped with a CD player, which can connect to USB, FM, and Bluetooth playback.

Note: This solution is provided for reference only. For specific requirements, please feel free to contact us.

Key Functions of the PAVA9500 System

Daily Broadcasting Function：

●Preset schedule chimes and routine announcements; the system automatically executes playback tasks, enabling truly unattended operation.

●Supports targeted paging to individual or multiple zones, allowing quick location of doctors, notification of examinations, and delivery of important messages.

●Automatically plays soothing background music, creating a comfortable and relaxing environment for patients and medical staff.

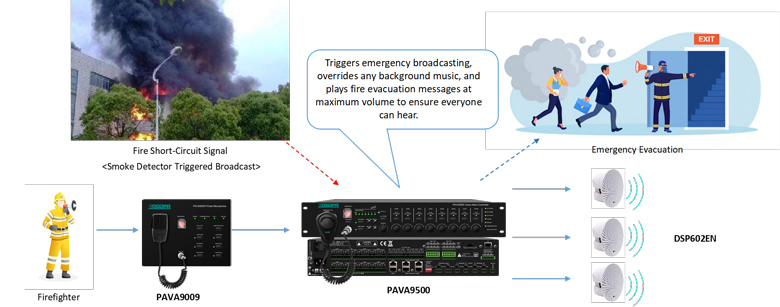

Voice Alarm Functions

●Real-time linkage with the fire alarm system; when a fire occurs, emergency broadcasting in the corresponding zones is automatically triggered.

●Supports all-zone, zone-based, and adjacent-floor alarm modes, allowing dynamic adjustment of evacuation strategies according to fire conditions.

●Emergency broadcasting has the highest priority and automatically interrupts background music to ensure clear delivery of instructions.

●Built-in standard evacuation messages, while also supporting real-time manual announcements by fire personnel via microphone.

Remote Management

Management personnel can monitor, configure, and operate the PA system in real time from any location via network terminals.

V. PAVA9500 System Introduction

Key Highlights of the PAVA9500 System

Fire Alarm Integration

●Supports fire alarm linkage for all zones and individual zones, with configurable adjacent zone alarm mode for flexible emergency response.

●Supports both manual alarm activation and automatic trigger-based alarm.

●Provides dry contact input or voltage input (DC 5–24V) for seamless integration with third-party systems.

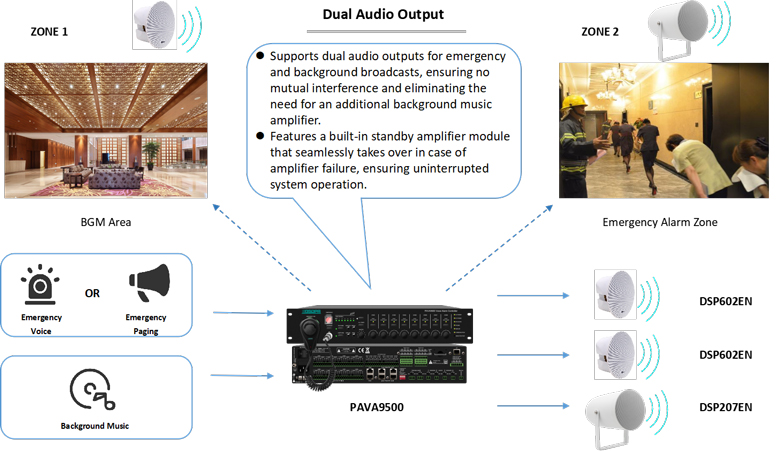

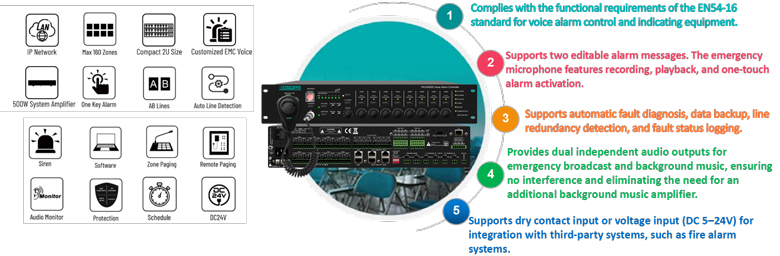

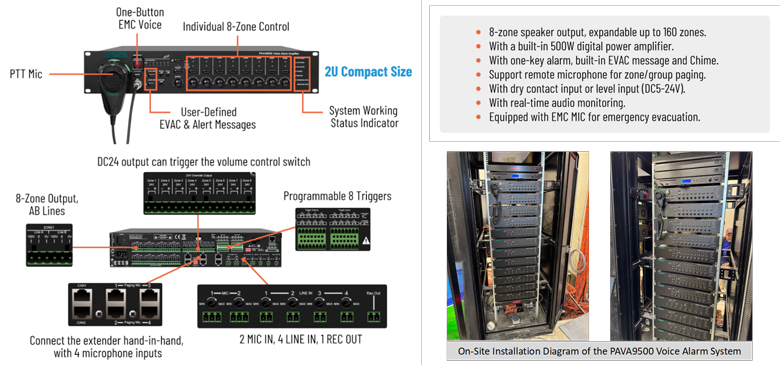

VI. PAVA9500 Voice Evacuation System Host _ Features

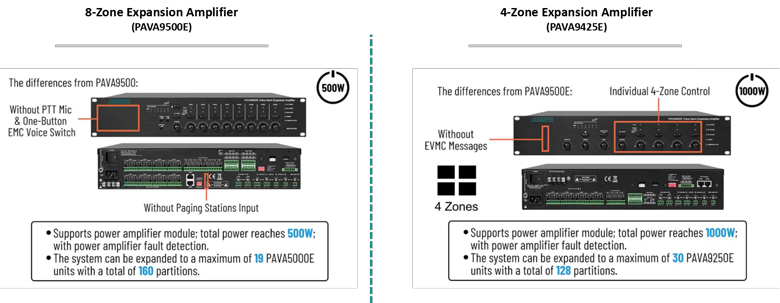

VII. Expansion Devices

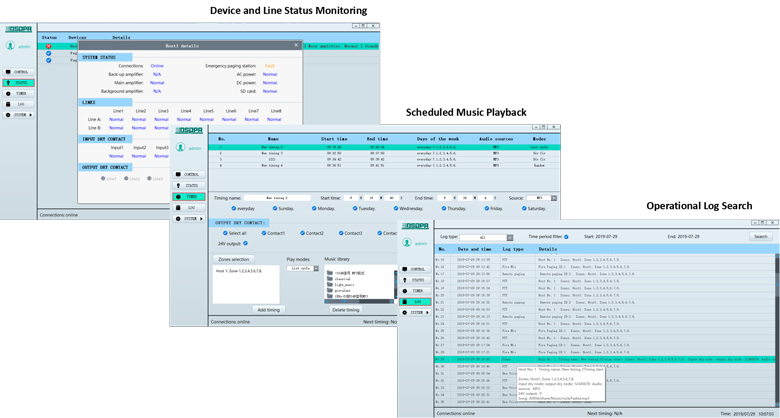

VIII. Software Features

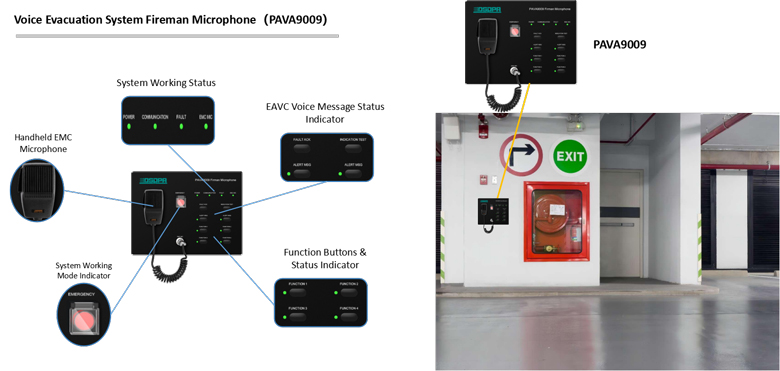

IX. Product Introduction_ Fireman Microphone PAVA9009

●Emergency Paging and One-Touch Alarm (Supports two selectable alarm tones).

●Four Customizable Multi-Functional Buttons.

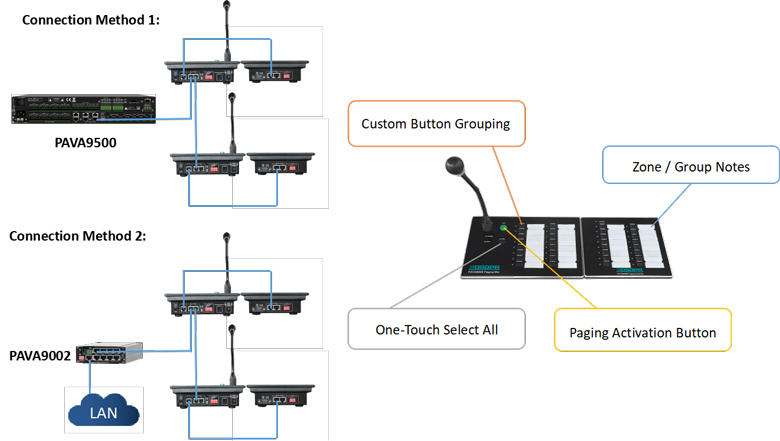

X. Product Introduction_ PAVA9008 / PAVA9008E Paging Station

Voice Evacuation System Remote Paging Microphone (PAVA9008) + Remote Paging Station Extender(PAVA9008E)

●The DIP switch address can be set, supporting up to 8 remote microphones.

●The system supports 16-zone paging, including single-zone, multiple-zone, group, and all-zone paging.

●External keyboards can be expanded, supporting up to 9 keyboards.

●Each microphone has one AUX input that can be used as a paging signal input.

●The PTT mode can be set, requiring the CALL button to be held during paging; releasing the button ends the broadcast.

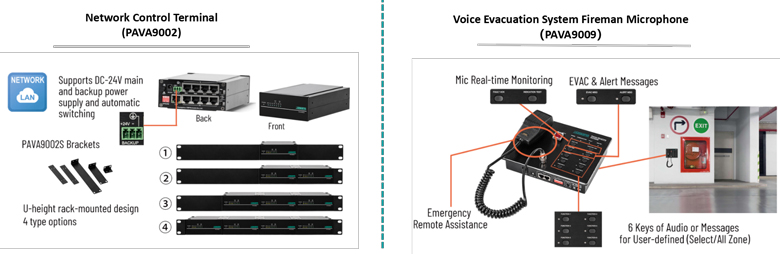

XI. Product Introduction_ PAVA9002/PAVA9009

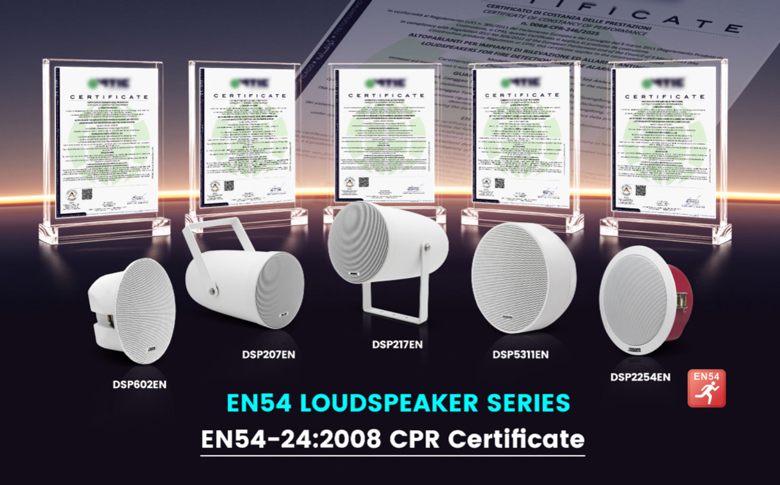

XII. EN54 Series Speaker Introduction

EN54 Series Speaker Technical Parameters

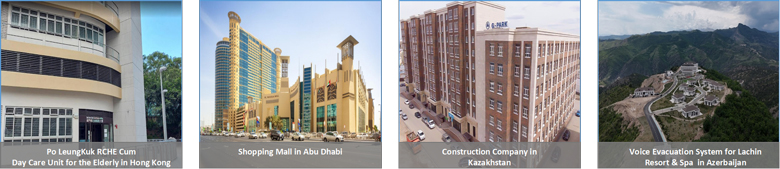

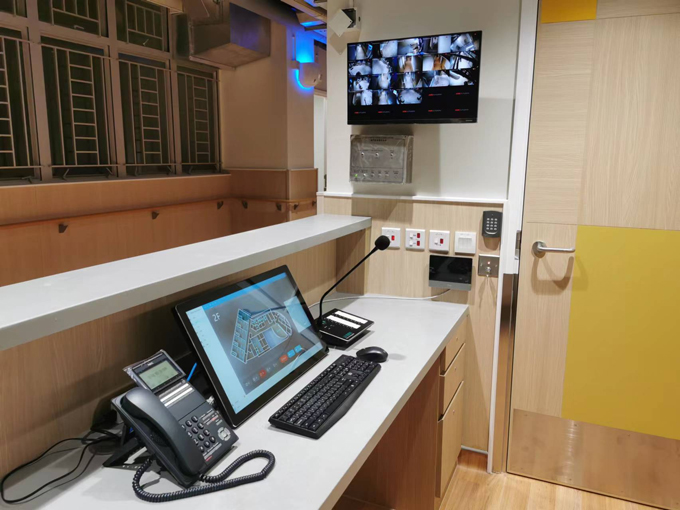

XIII. Selected Cases

The EN54-compliant voice alarm system is designed for venues with high occupancy, complex evacuation requirements, or where mandated by law—such as shopping malls, hospitals, subways, and high-rise buildings. It ensures efficient and orderly evacuation during fires through highly reliable redundancy and clear voice instructions.
