The PL206 is engineered for applications requiring a more compact form factor while maintaining clarity and output performance. It operates within a frequency range of 150 Hz to 18 kHz, delivering precise and intelligible sound.
Equipped with dual 6.5-inch low-frequency drivers and a 1.75-inch high-frequency unit, it achieves a maximum SPL of 119 dB with a rated power of 300 W.
Optimized for indoor environments such as auditoriums and multi-purpose halls, the PL206 features a durable structure and adaptable mounting design, ensuring dependable operation across professional installations.
Model | PL206 |
System Configuration | 2×6.5" LF, 1×1.75" HF |
Frequency Response (±3dB) | 150Hz–18kHz |
Sensitivity | 95±2dB |
MAX. SPL | 119±2dB |
Input Impedance | 8Ω |
Rated Power | 300W |
Coverage (H×V) | 120°×20° |
Dimensions (H×W×D) | 196×570×290mm |
Net Weight | 14.2kg |
LA1421 600W Passive Line Array Full Frequency LoudspeakerSeptember 21, 2018The LA1421 Dual 10-inch Line Array Full-range Speaker is a high-end, high-quality passive line array speaker that delivers exceptional sound performance. Equipped with two 10-inch bass drivers and one...view

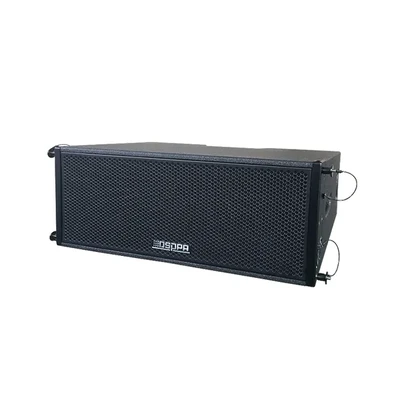

PL210 Passive Line Array Full-Range SpeakerMarch 27, 2026The PL210 is a high-performance line array module designed to deliver powerful sound reinforcement with excellent clarity and balance across a wide frequency range of 50 Hz to 18 kHz.It is equipped wi...view
