PL112 Passive Line Array Full-Range Speaker

Features

● Features one high-power 12-inch woofer and two 75 mm compression drivers, integrated with a precision crossover network for optimized acoustic performance.
● The cabinet is made of professional-grade high-density plywood and finished with a wear-resistant polyurea coating, making it suitable for various indoor and outdoor venues such as gymnasiums, auditoriums, and multifunction halls.
● Quick angle-adjustment mechanisms on both sides of the cabinet enable fast flying or stacking of multiple units, forming continuous array coverage for long-distance and uniform sound distribution.

  • Introduction
  • Specification

The PL112 is a compact line array loudspeaker designed to deliver strong output and consistent audio clarity across a broad frequency spectrum of 58 Hz to 18 kHz.

It features a 12-inch low-frequency driver paired with dual 3-inch high-frequency units, offering excellent sensitivity and reaching peak sound pressure levels up to 123 dB. With a rated power of 450 W, it performs reliably in a wide range of applications.

Suitable for both indoor and outdoor use—including sports venues, auditoriums, and multifunctional spaces—the system combines robust construction with a versatile mounting design, ensuring stable operation in demanding professional environments.

Model

PL112

System Configuration

1×12" LF, 2×3" HF

Frequency Response (±3dB)

58Hz–18,000Hz

Sensitivity

97±2dB

MAX. SPL

123±2dB

Input Impedance

Rated Power

450W

Coverage (H×V)

120°×5°–20° (depending on array configuration)

Dimensions (H×W×D)

357×580×440mm

Weight

32.3kg


Relate Products

  • LA1420F 650W Passive Waterproof Array Full Range Speaker (1 PCS)LA1420F 650W Passive Waterproof Array Full Range Speaker (1 PCS)December 22, 2023This product represents a top-tier, high-quality medium and high-frequency passive waterproof line array speaker. Renowned for its exceptional radiation characteristics, it delivers clear, delicate so...view
  • LAM1432SA 800W Active Speaker SystemLAM1432SA 800W Active Speaker SystemOctober 19, 2023LAM1432SA is specifically designed as a planar waveguide active speaker system to enhance the performance of LAM1432 low-frequency speakers. This advanced system features an 18" unit with a 100mm voic...view

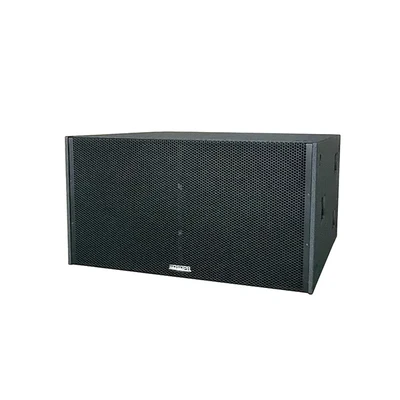

  • PK218S Passive SubwooferPK218S Passive SubwooferMarch 27, 2026The PK218S is a high-output subwoofer engineered to extend and reinforce line array systems with powerful low-frequency performance, covering an ultra-wide range from 35 Hz to 300 Hz.It is equipped wi...view
